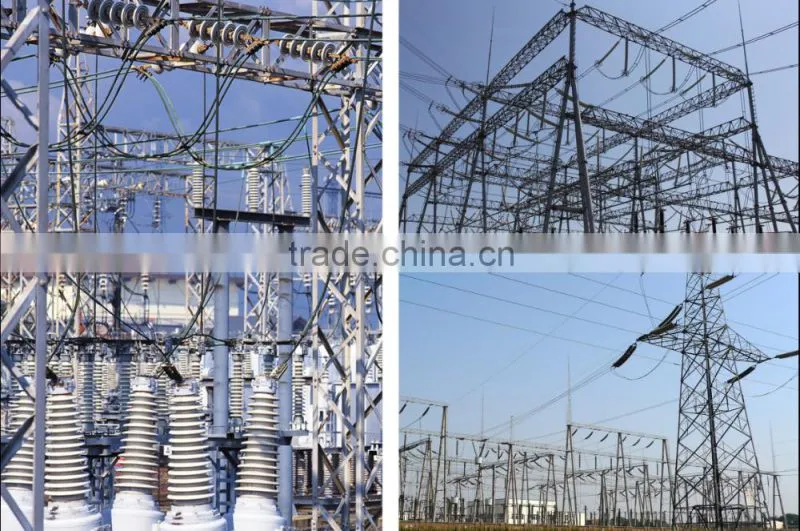

220KV Transformer substation angle steel structure
Product Details | |
Wind speed |
5-190 km/h |
Min Yield Strength |
355Kpa |
Ultimate Tensile Strength |
490kpa-620kpa |
Standard |
ISO9001 |
Tolerance of dimension |
+ / - 2% |
Type |
Tubular steel structure, angle steel structure |
Shape |
Conical,Round,Polygonal(Octagonal,Dodecagonal,Hexadecagonal etc) |
Material |
Usually Q345B/A572, minimum yield strength>= 345n/mm2, Q235B/A36,minimum yield strength>=235n/mm2. As well as hot rolled coil from Q460,ASTM573 GR65,GR50,SS400,SS490 |
Voltage Grade |
10KV,50KV,110KV,220KV,500KV,750KV,800KV,1000KV,1100KV or others. |
Safety factor |
safety factor for conducting wine:8, safety factor for grounding wine:8 |
safety factor for conducting wine:8, safety factor for grounding wine:8 |
300-1000kg appliced to 50cm from the pole |
Joint type |
Insert mode, innerflange mode, face to face joint mode |
Welding |
Welding complies with AWS D1.1 standard. |
Lifetime |
more than 50 years |
Base Plate |
Base plate is squre/round/polygon with slotted holes for anchor bolt and dimension as per client's requirement |
More details:
1. Experienced staffs answer all your questions in fluent English.
2. Customized design is available. OEM&ODM are welcomed.
3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
4. Special discount and protection of sales are provided to our distributor.
5. Professional factory : We are manufacturer, specializing in producing all kinds of steel structures for more than 20 years, competitive with good quantity.
6. Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
Payment Terms
30% in advance and 70% before shipment for our products
1. Price Term: EXW, FOB, CFR or CIF.
2. MOQ: 1 sets for Customized
3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment/against BL copy. Other payment way can be negotiated.
4. Delivery time : goods can be ready for shipment within 25 workdays after receiving deposit.
5. Warranty : 50 years
6. Surface treatment :hot dip galvanization
