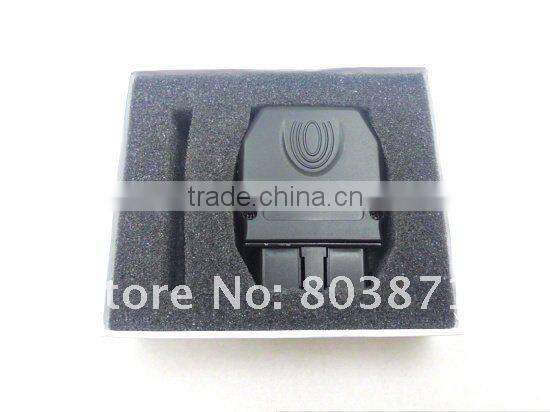

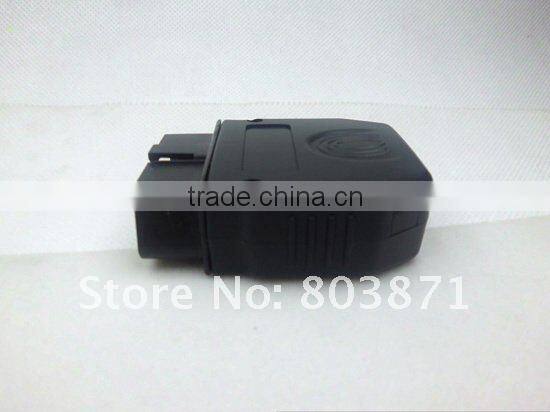

OBD2 Scan Interface Car Owner DIY Android System Bluetooth Scanner B-Scan Fast Shipping

Specifications

Bluetooth Scanner
*Newly OBD2 Code Reader
*Work with Android System
*High Performance*Fast Shipping

Bluetooth Scanner

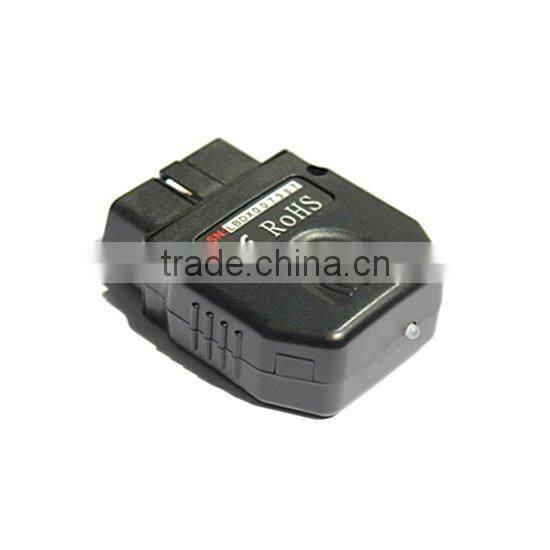

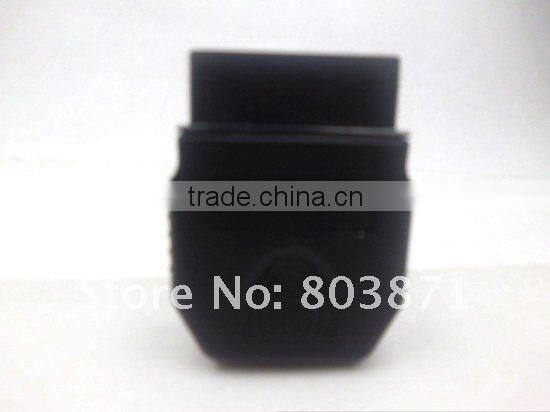

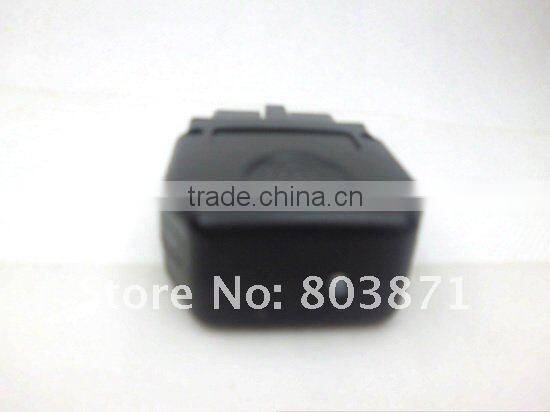

B-Scan (Bluetooth scan) is working with Android operating system cell phone,

is newly developed by LanDu, specially designed for car owners or DIYs to diagnose any

vehicle that is compliant to OBDII/OBD. It not only can read/clear DTCs, but also can read

live data in 2 modes, and perform many special tests. Tri-languages make it operation easily for a technician.



Specification:

Operating temperature: -40 ~ 80 Preservation of the environment temperature: 40 ~ 200 Operating voltage: 12 ~ 18 V

The maximum threshold voltage: 25V

Maximum instantaneous current: 120mA

Normal operating current: less than 60mA

Sleep current: less than 0.2uA

Wireless communication frequency: 2.4G

Wireless transmission: Bluetooth, 2.4G RF

Wireless transmission distance: greater than 4m

Wired communication: serial communication (3.3V)



Function:

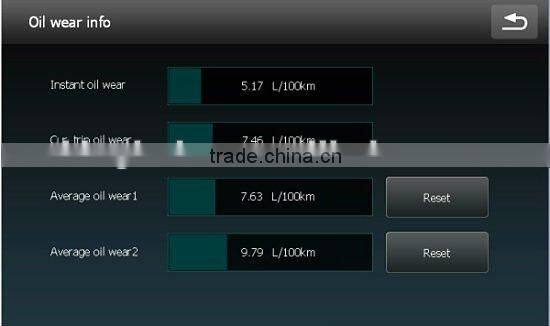

High-precision fuel consumption display

Read real-time condition information

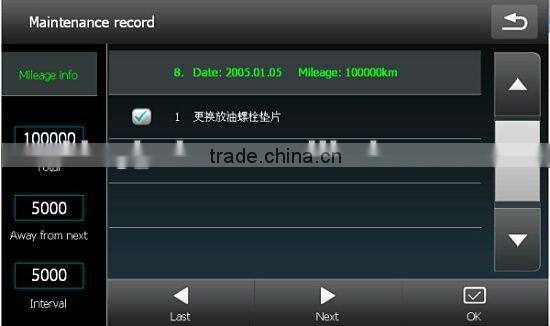

Read the history of maintenance records

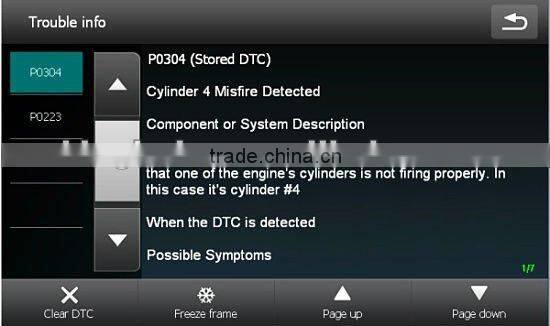

Read and clear vehicle error code

Clear vehicle malfunction code

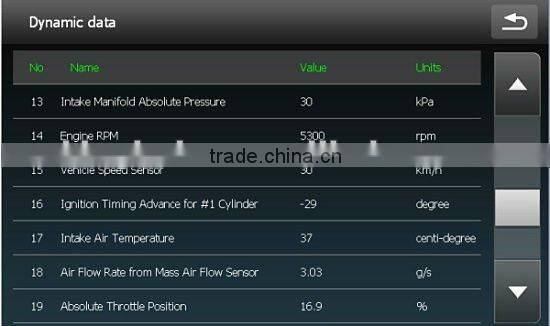

Read vehicle data stream Letter



Specific:

1: B-Scan (Bluetooth scan) applies to OBDII / the EOBD protocol vehicle. With engine emission-related data of sensor and actuator can be read. Airbags, gearbox, ABS and central control

system can not be tested. Before 2006, Japanese cars and Korean cars basically without OBDII

/ the EOBD protocol basically support; a lot of American cars in 1992 to start configuring the OBD

system, the European models in 2002.

2: B-Scan (Bluetooth scan) is just a connector, but also needs a phone with Android operating system,

which connected Bluetooth. (Andrews’s system version requires 2.3, 4.0 versions are not supported)

3: B-Scan communicates with Android Phone via Bluetooth. All OBDII / OBD II protocol can be read. Like

trouble code, fuel consumption information, data stream, freeze frame data, mileage and maintenance

records; users concerned about the traffic data, all will be read.

4: OBD module hardware version number V1.50 software version is V2.03.01, the phone displays the

software version number is V1.00.16. Software matches the password: 1234



Advantage:

1. B-Scan is designed by car. The standby quiescent current is less than 0.2 micro amps, and other is 38 to

54 mA which is not suitable for a long time installed in the car;

2. Automotive fault classification, to facilitate the driver according to the severity of processing; other

products are not graded;

3. If the vehicle also has a new fault, B-Scan instants perception and adds the new fault content, and other products only back to the interface and display again;

4. B-Scan clears the trouble code and re-read the fault code which cleared immediately; other products still show the original fault code and content;

5. B-Scan can guide users to deal with different fault code, help users to find fault reasons and other products are not

6. B-Scan content library to support manufacturer’s code, other product does not support;

7. B-Scan supports the fuel consumption information display, and other products are not;

8. B-Scan supports the mileage and maintenance records, and other products are not

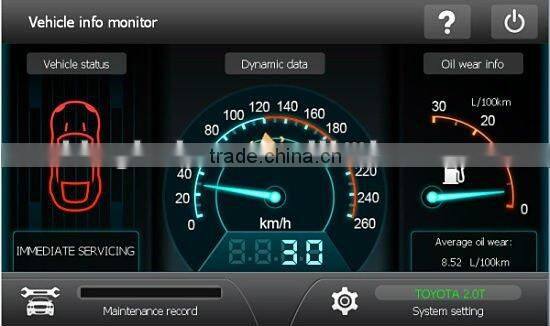

9. The main interface of the B-Scan Bluetooth detection card display important vehicle data, easily and intuitively; other products are the main menu link status.









 P.S. We will double-test every product before sending it out to ensure it can be operating in good condition and

we wish to keep a long-term business relationship with you.
