Specifications
volvo truck code reader:Read fault code Clear fault codea Read data streams
Original launch CR HD cr hd launch heavy duty
CR-HD is the first heavy truck code reader which Launch latest developed. It has integrated the basic diagnostic functions of two heavy duty truck standard protocols (J1939 and J1708), applied 2.8" color LCD with beautiful interface, and equipped with 6PIN and 9PIN additional diagnostic connectors, which can provide highest quality, most efficient, and most professional diagnostic service for heavy duty trucks. From now on, the heavy duty trucks also have their own small-scale diagnostic tool.
CR-HD Feature
Read fault code
Clear fault codea
Read data streams
Support multiple ECUs
Support 6PIN, 9PIN, and 16PIN diagnostic connectors
Support J1939, and J1708 vehicle communication protocols
With multi-languages function (English, and French, etc.)
With online software upgrade function (USB2.0)
CR-HD Specification
Screen: 2.8", 262K true color, 320*240 LCD
Input voltage range: 8~36V
Operating current: typically <100mA
Typical power consumption: <1.2W
Wire connection: 6PIN, 9PIN, 16PIN diagnostic connector
Environmental temperature: 0C~50C
Storage temperature and humidity: -20C~70C@ RH 60%
External dimension: L*W*H=121*82*26mm
Single unit: <500g

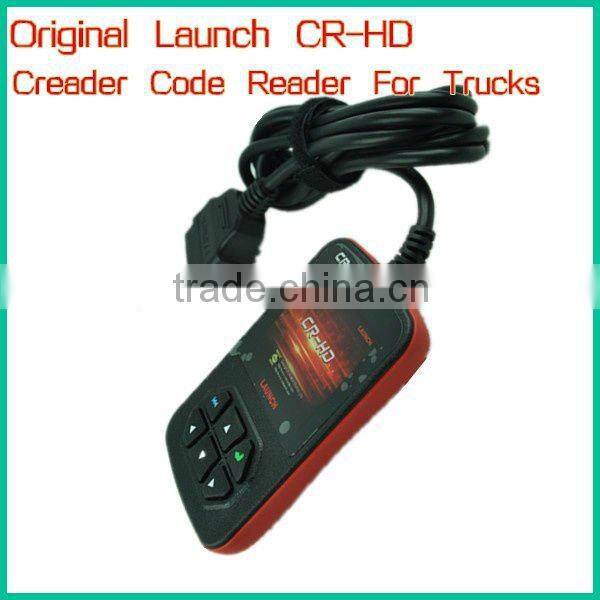

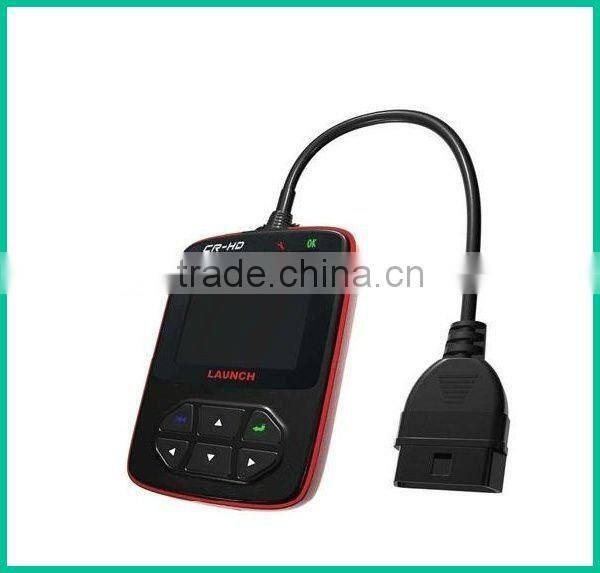

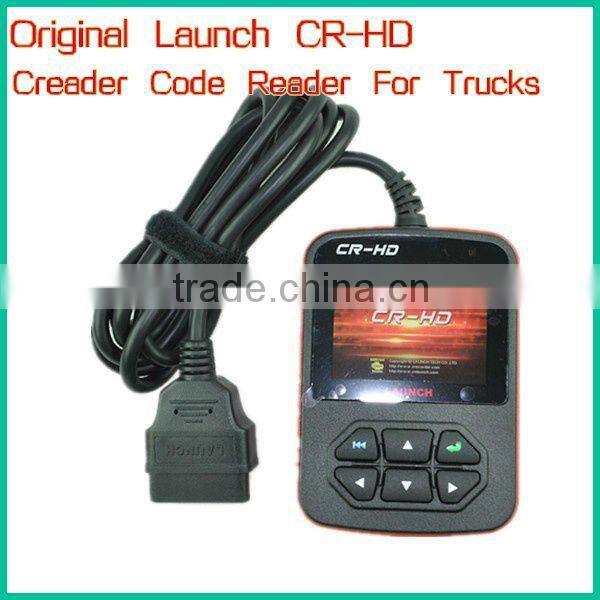

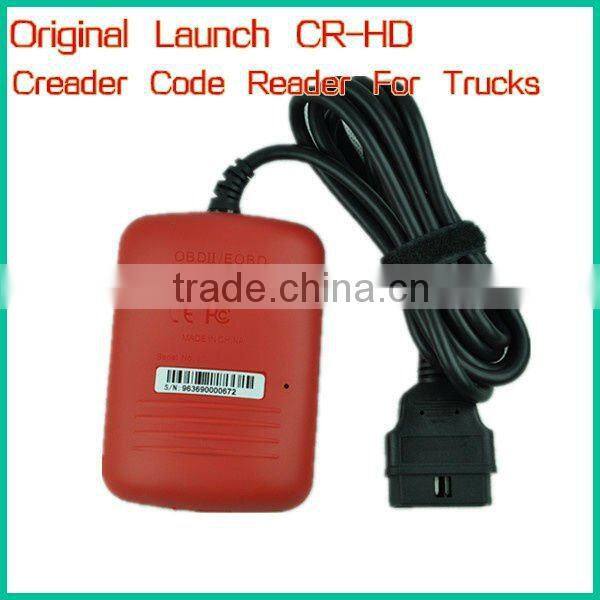

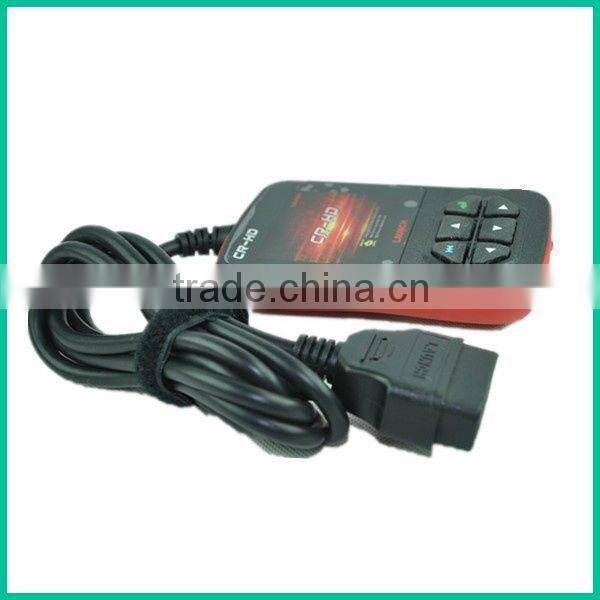

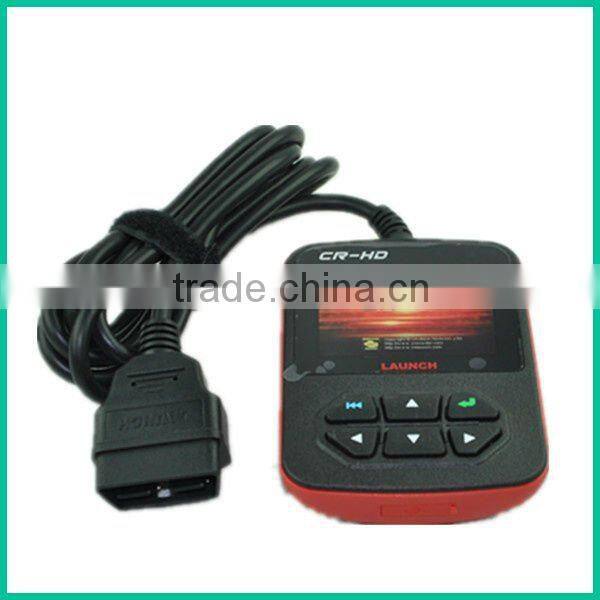

Item pictures:
