Specifications
Top cross rail 25*21*0.75mmFurring channel16/28*38*0.55
galvanized120-275g
length 6000

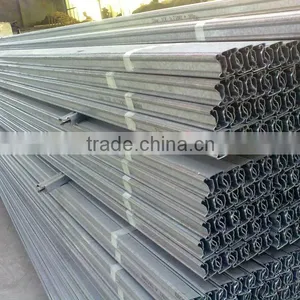

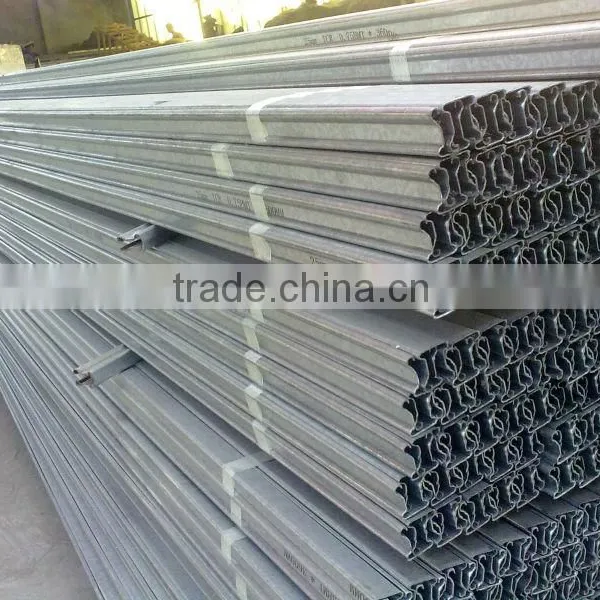

Australia galvanized primary channel :
1)Standard in Australia ,
2)Thickness:0.75mm,
3)zinc coating:120-275g ,
4)Very Perpendicular,
5)Support is fast construction,
6)Length size according to the customer size manufacture
COMPONENTS |
PART |
DESCRIPTION |
Size(mm) |
Length(mm) |
|
NO | |||||
125 |
25mm Top Cross Rail |
25*21*0.55 |
3600/4800/6000 |
||
127 |
25mm Top Cross Rail |
25*21*0.75 |
3600/4800/6000 |
||
|
308 |
16mm Furring Channel Track |
16*20*30*0.55 |
3000 |
|
129 |
28mm Furring Channel Track |
28*20*30*0.55 |
3000 |
||
301 |
16mm Ceiling Batten |
36*16*0.5 |
4800/6000 |
||
|
|
|
|
||
|
|
|
|
||
303 |
22mm Cyclonic Ceiling Batten |
35*22*68*0.55 |
4800/6000 |
||
310 |
40mm Ceiling Batten |
35*40*70*0.55 |
4800/6000 |
||
|
308 |
16mm Furring Channel |
16*38*0.55 |
3000/3600/4800/6000 |
|
129 |
28mm Furring Channel |
28*38*0.55 |
3000/3600/4800/6000 |
||
401/489 |
51mm Stud |
51*33.5*35.5*0.55/0.75 |
2400/2700/3000/3600/4200/4800/6000 |
||
112/491/661 |
64mm Stud |
64*33.5*35.5*0.55/0.75/1.15 |
2400/2700/3000/3600/4200/4800/6000 |
||
403/493/671 |
76mm Stud |
76*33.5*35.5*0.55/0.75/1.15 |
2400/2700/3000/3600/4200/4800/6000 |
||
251/495/681 |
92mm Stud |
92*33.5*35.5*0.55/0.75/1.15 |
2400/2700/3000/3600/4200/4800/6000 |
||
511/691 |
150mm Stud |
150*33.5*35.5*0.75/1.15 |
3600/4800/6000/7200 |
||
400/490 |
51mm Track |
51 * 32/50 * 0.55/0.75 |
3000 |
||
111/492/660 |
64mm Track |
64 * 32/50 * 0.55/0.75/1.15 |
3000 |
||
402/494/670 |
76mm Track |
76 * 32/50 * 0.55/0.75/1.15 |
3000 |
||
250/496/680 |
92mm Track |
92 * 32/50 * 0.55/0.75/1.15 |
3000 |
||
510/690 |
150mm Track |
150 * 32/50 * 0.75/1.15 |
3000 |
||
|
Leg Stopping Angle 6mm |
30*6*0.4 |
3000 |
||
P25 |
Leg Stopping Angle 10mm |
30*10*0.4 |
3000 |
||
P26 |
Leg Stopping Angle 13mm |
30*13*0.4 |
3000 |
||
P27 |
Leg Stopping Angle 16mm |
30*16*0.4 |
3000 |
||
P01 |
External Angle 90 |
30*30*0.4 |
2400/2700/3000/3600 |
||
P50 |
Shadowline stopping angle |
10*10*30*0.4 |
3000 |
