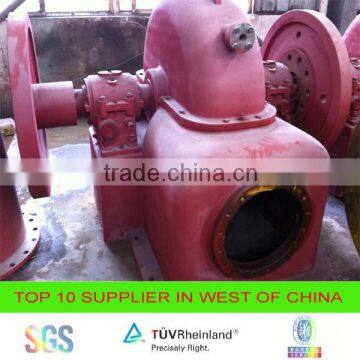

Pelton turbine generator for small/medium hydro power plant

Specifications

Micro Pelton turbine for hydro power plant

1.applicable water head:50-1300m
2.Certificate ISO9001`2008
3.Lifespan 30~50years
4.Efficiency 86%

5.Customized design and manufacture
6.SGS& TUV& BV
7.Competitive price
Main products profiles:

Reaction turbines

Reaction turbines generally mean Francis turbine and Axial flow turbine. They are acted on by water, which changes pressure as it moves through the turbine and gives up its energy. They must be encased to contain the water pressure (or suction), or they must be fully submerged in the water flow.

Newton's third law describes the transfer of energy for reaction turbines.

Most water turbines in use are reaction turbines and are used in low (<30m/98 ft) and medium (30-300m/98–984 ft) head applications. In reaction turbine pressure drop occurs in both fixed and moving blades.

Impulse turbines

Impulse turbines generally mean Turgo turbine and Pelton turbine. They change the velocity of a water jet. The jet pushes on the turbine's curved blades which changes the direction of the flow. The resulting change in momentum (impulse) causes a force on the turbine blades. Since the turbine is spinning, the force acts through a distance (work) and the diverted water flow is left with diminished energy.

Prior to hitting the turbine blades, the water's pressure (potential energy) is converted to kinetic energy by a nozzle and focused on the turbine. No pressure change occurs at the turbine blades, and the turbine doesn't require a housing for operation.

Newton's second law describes the transfer of energy for impulse turbines.

Impulse turbines are often used in very high (>300m/984 ft) head applications .

We can produce all the four types of turbines as above.

Company brief

1.water turbine generator

 We specialize in water turbine manufacturing for over 40 years. The water turbines we supplies serves a wide range of customers in and out of China.

2.easy installation & operation

We have a wide range of water turbines for building hydraulic generating systems. It is designed of

easy installation and operation.

3.high efficiency

The water power generating unit can be applied in varies of places and environment.Our water turbine is produced with high efficiency via our long years' experience of research and development.

4. Oversea projects

    we have exported water turbine generator sets to

            Vietnam——April,2007(2*3200KW)

            Peru——November,2007(2*1250KW)

            Burma——December,2008(2*400KW)

            Burma——November,2009(2*200KW)

            Albania——July,2011(2*1250KW,1*630KW,2*400KW)

           Indonensia----August,2012(1X4400KW)

Sample:

Certificate:

Runner:

Generator:

Packaging:

 Loading:
