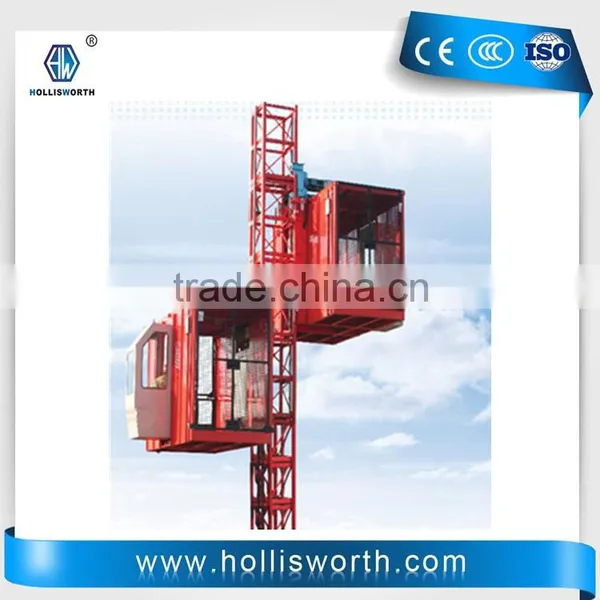

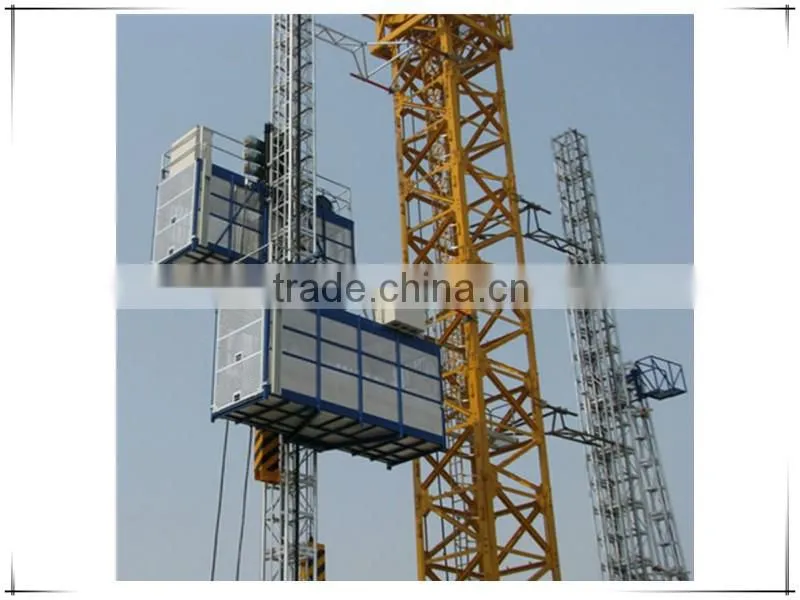

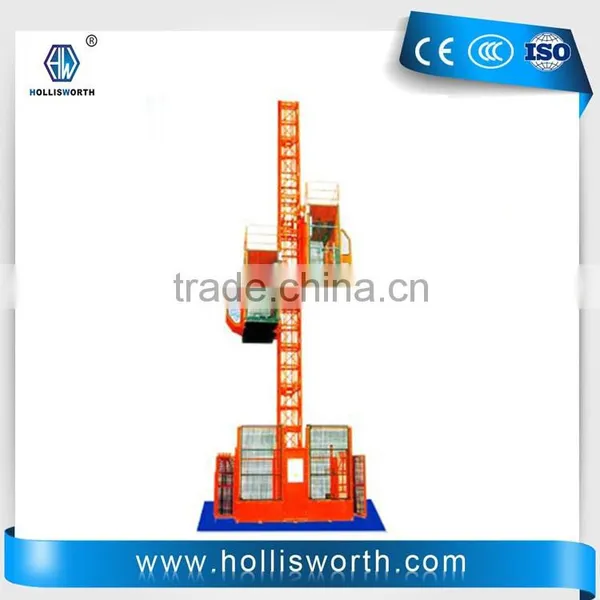

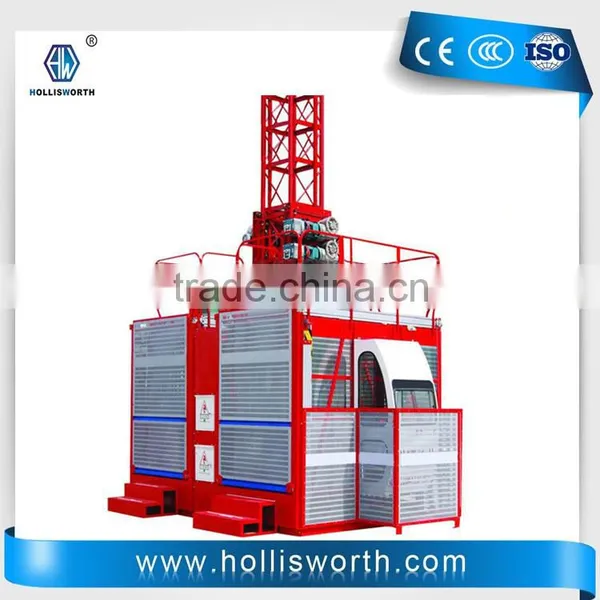

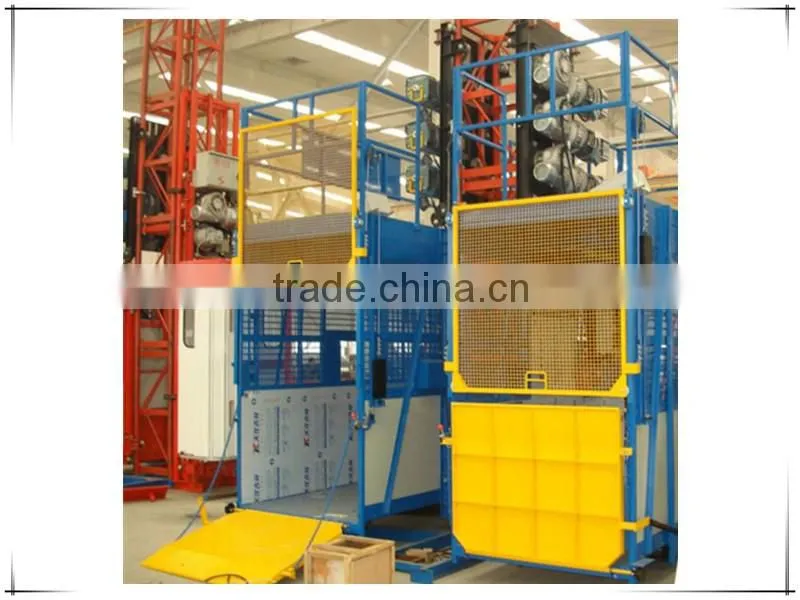

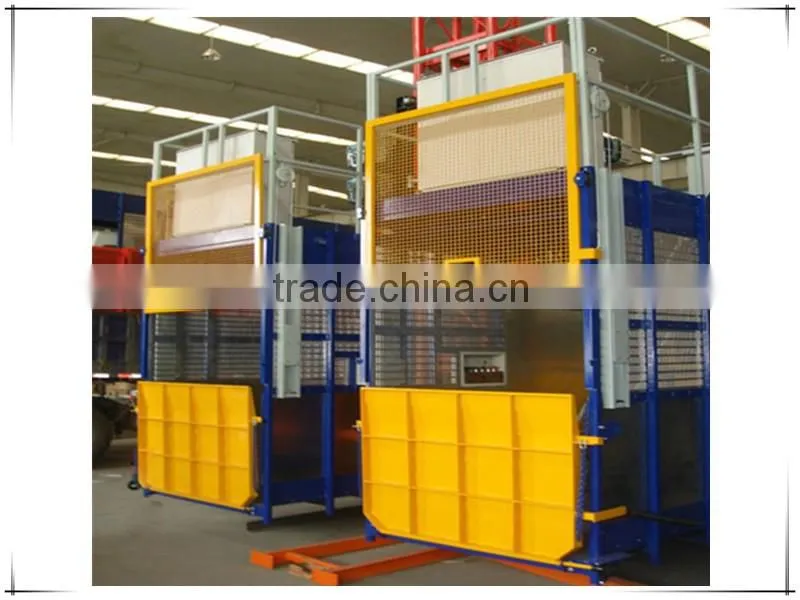

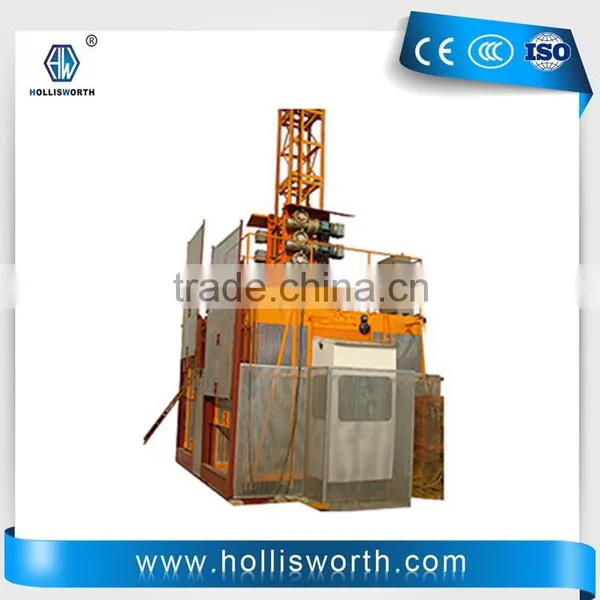

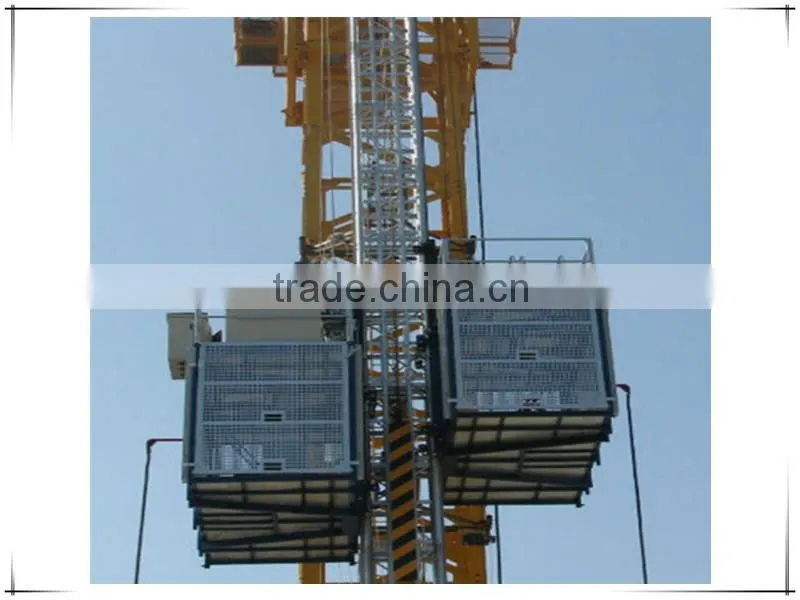

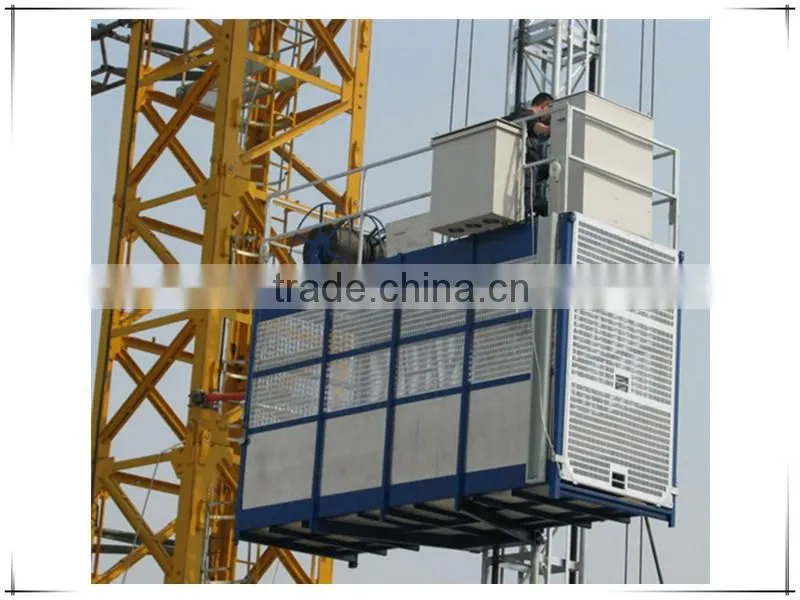

CE approved electric construction wire rope hoist
The overload capacity of Hollisworth building hoist can reach 8000kgs; the lifting speed can reach 96m/min, and the max. Erecting height can be as high as 450m. The hoists are widely used in construction site,power projects, metallurgical, mining,oil and chemical industries. Hollisworth also can design and produce the specialkinds of lifting equipments upon the clients; requirements or special condition on the working site.
Hollisworth can produce the following kinds of building hoist:
1.Normal building hoist
2.High-speed frequency conversion hoist
3.Multifunctional building hoist
4.Curved & Inclined hoist
5.Double pillar Heavy duty hoist
6.Mini Hoist
| Technical Data of Normal Building Hoist | ||||
| Type | Motor Power | Lifting speed | Mast Section Size(mm) | Cage Size(m) |
| SC100 | 2×7.5KW | 0-30m/min | 500×500×1508 | 2.0×1.2×2.5 |
| SC100/100 | 2×2×7.5KW | 0-30m/min | 500×500×1508 | 2.0×1.2×2.5 |
| SC150 | 2×11KW | 33m/min | 650×650×1508 | 3.2×1.5×2.5 |
| SC150/150 | 2×2×11KW | 33m/min | 650×650×1508 | 3.2×1.5×2.5 |
| SC200 | 3×11KW | 33m/min | 650×650×1508 | 3.2×1.5×2.5 |
| SC200/200 | 2×3×11KW | 33m/min | 650×650×1508 | 3.2×1.5×2.5 |
| Technical Data of Frequency Building Hoist (Middle Speed) | ||||
| Type | Motor Power | Lifting Speed | Mast Section Size(mm) | Cage Size(m) |
| SC200 | 2×11KW | 0-45m/min | 650×650×1508 | 3.2×1.5×2.5 |
| SC200/200 | 2×2×11KW | 0-45m/min | 650×650×1508 | 3.2×1.5×2.5 |
| SC200/200 | 3×11KW | 0-63m/min | 650×650×1508 | 3.2×1.5×2.5 |
| SC200/200 | 2×3×11KW | 0-63m/min | 650×650×1508 | 3.2×1.5×2.5 |
| SC200 | 2×11KW | 0-45m/min | 650×650×1508 | 3.2×1.5×2.5 |
| SC200/200 | 2×2×11KW | 0-45m/min | 650×650×1508 | 3.2×1.5×2.5 |
| SC200/200 | 3×11KW | 0-63m/min | 650×650×1508 | 3.2×1.5×2.5 |
| SC200/200 | 2×3×11KW | 0-63m/min | 650×650×1508 | 3.2×1.5×2.5 |
JIANGXI HOLLISWORTH MACHINERY & EQUIPMENT CO., LTD. is a professional manufacturer produces various kinds of construction machines. We have advanced technology and rich experience in Building Maintenance Units, Tower Crane, Building Hoist, Powered Platform, Elevator and Scissor Lift and other construction machineries. We have already exported to U. A. E., Qatar, Saudi Arabia, Kuwait, Iran, Inida, Russia, Brazil, Australia and many other countries and regions for many years. You can be assured of our high quality, fast delivery time and responsuble after-sale service. We insist in : Quality is First " , We will continously do our best to supply reliable quality products and excellent service to our customers.
