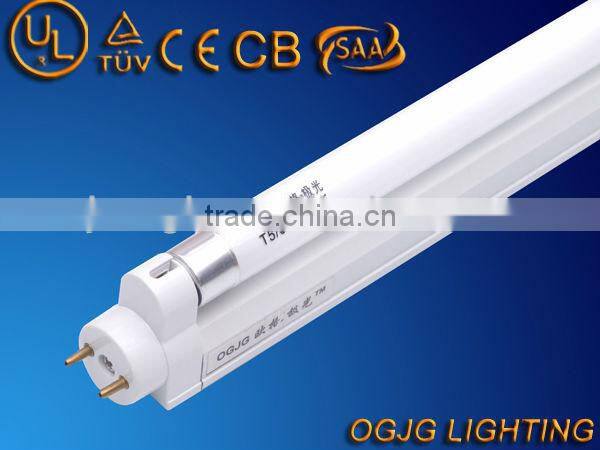

replacement fluorescent light fixture cover UL SAA TUV-CE TUV-CB C-TICK EMC FCC
tri-phosphor tube
saving energy up to 40%
with nano mirror reflecting film ,saving power up to 60%
bulit-in night power factor elecrronic ballast , for voltage supply 110V,240V,277V,110V~277V optional
aluminium/PC material optional
pins can turn by 90 degree for retrofit almost any style of t8/t10/t12 luminaire
General information:
| Moder | Power | Lamps | Replace T8 | Fixture Dim(L×W×H)mm |
| OG-T8/T5-35(G) | 1 × 35W/LED18W | T5 1×35W/T5 LED 18W | 58W | 1514 × 46× 36 |
| OG-T8/T5-28(G) | 1 × 28W/LED 15W | T5 1×28W/T5 LED 15W | 36W/40W | 1214 ×46 × 36 |
| OG-T8/T5-21(G) | 1 × 21W/LED 12W | T5 1 × 21W/T5 LED 12W | 30W | 910 × 46× 36 |
| OG-T8/T5-14(G) | 1 × 14WLED 9W | T5 1 × 14W/T5 LED 9W | 18W/20W | 604 × 46 × 36 |
| Model Mumber | OG-T8/T5-28 |
| Fixture Material: | White coated aluminium/Polycarbonate optional |
Protection Class: |
Ⅱ |
| Moisture Protection: | lP20 |
| Input Voltage: | 220~240V AC |
| Input Frequency: | 50/60Hz |
| Total Circuit Power: | 28W±1W |
| Total Lamp Power: | 24W±1W |
| Efficiency: | >85 lm/W |
| Ballast Lifespan: | 20000H |
| Lamp Lifespan: | 15000H |
| Current Crest Factor: | ≤1.7 |
|
Power Factor: (working with current T8 magnetic ballast) |
≥0.98 |
| Total Harmonic Distortion: | ≤15% |
Install LED tube:(work with electronic ballast or driver)
Install fluorescent tube:(work with electronic ballast)
Other styles:
Ballast image:
- installation method
Cautions:
1. Switch off the electricity before replacing the lamp
2. Keep away from direct sunshine and high temperature
3. Indoor use only
4. If any doubt about the installation or use of this product, consult a competent
electrician.
Application Area:
A. Basic commercial lighting;
B. Generally matching in downlight, celling light, household lighting etc;
C. Shopping, lighting, specialty lighting, hotel lighting, office lighting, homelight;
D. Commercial show windows and bars, airport, subway, cloverleaf junction and
architecture field.
