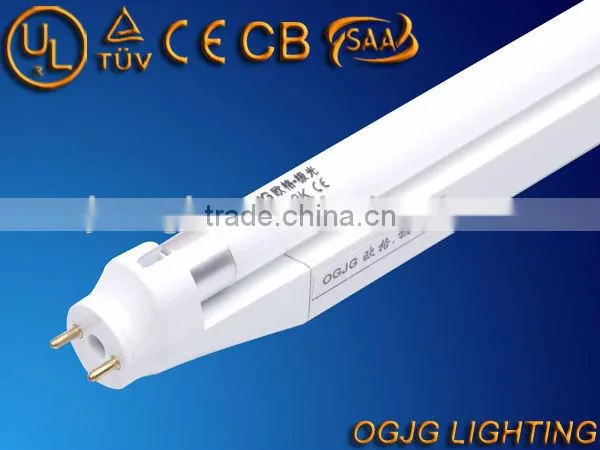

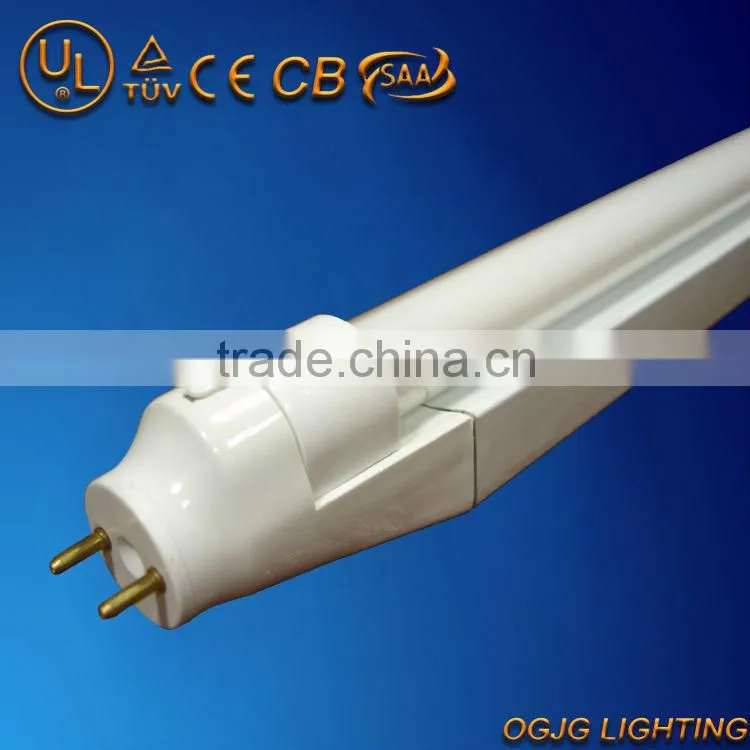

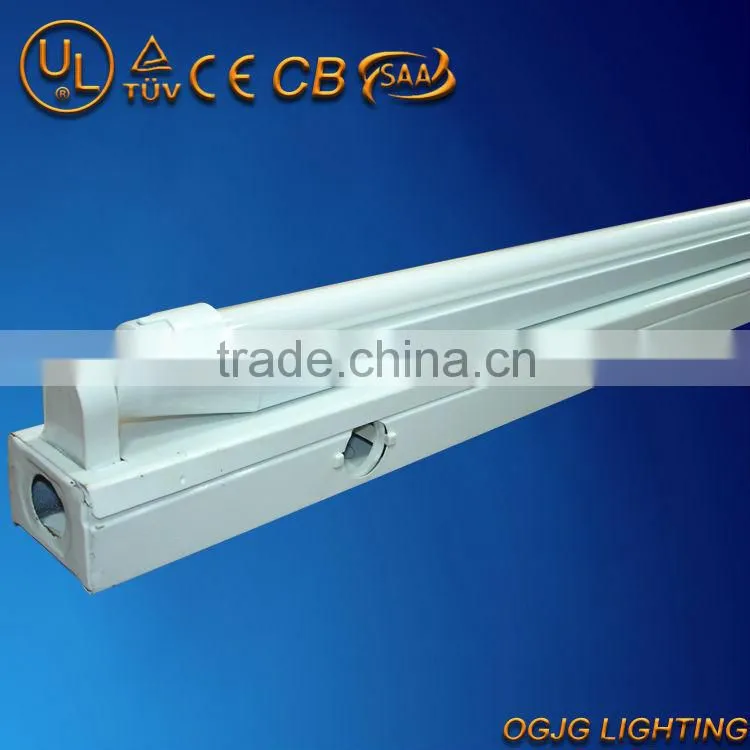

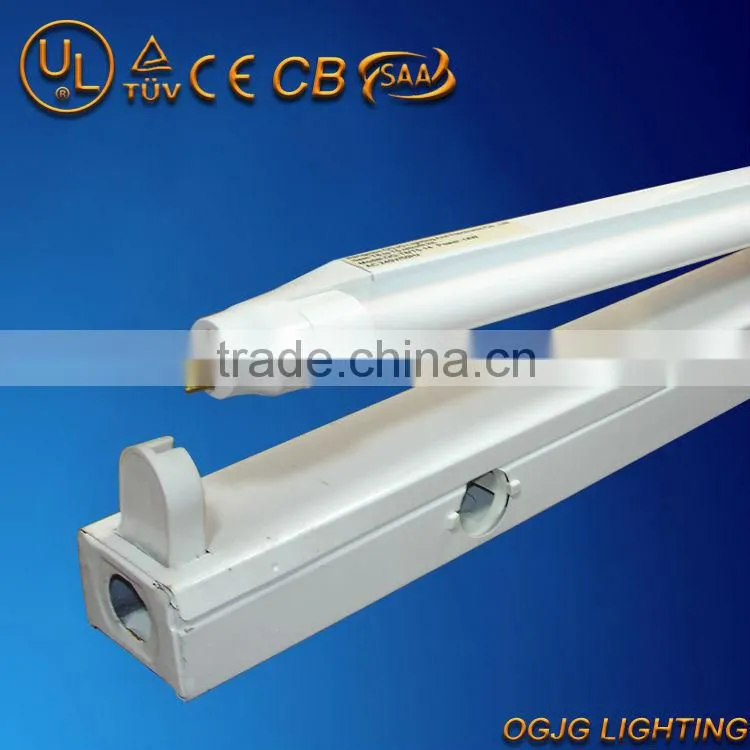

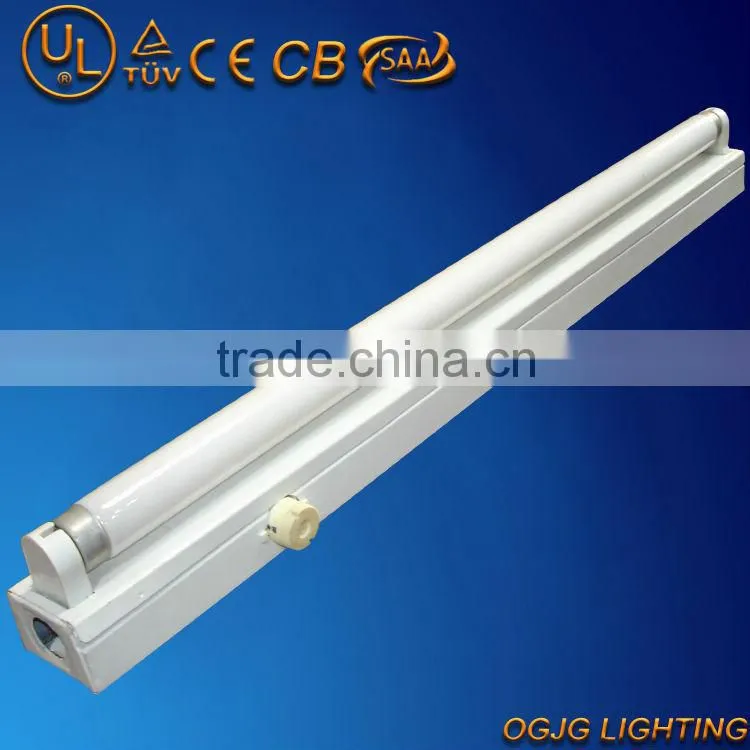

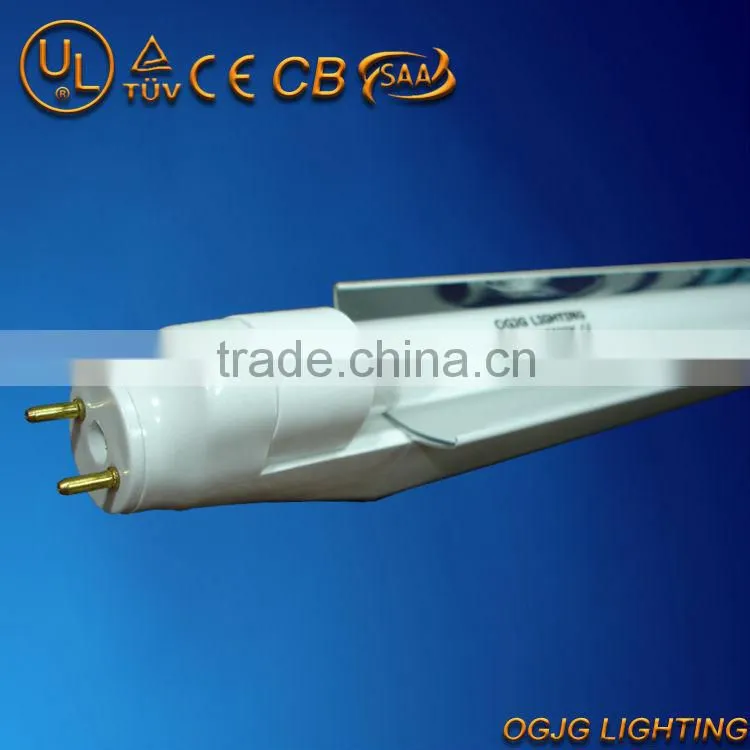

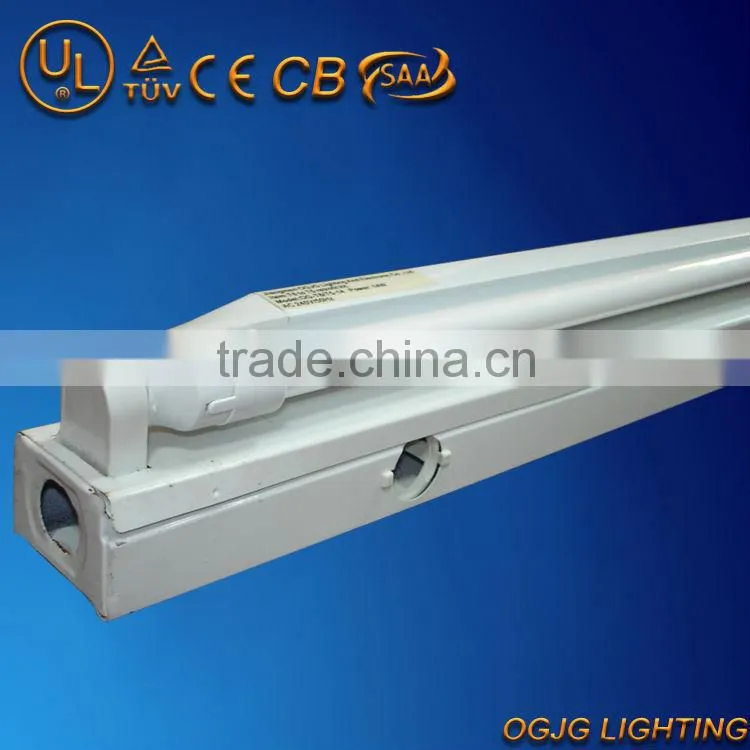

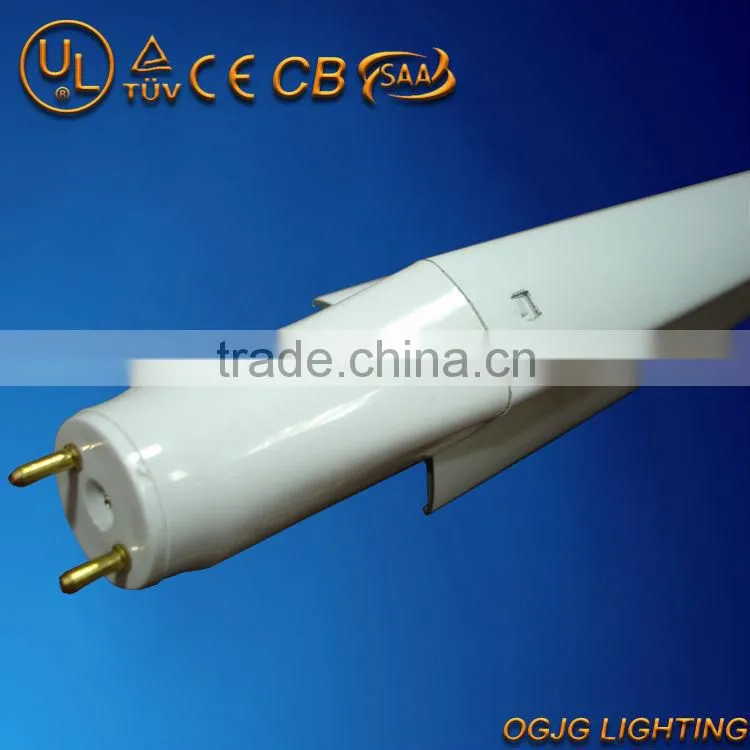

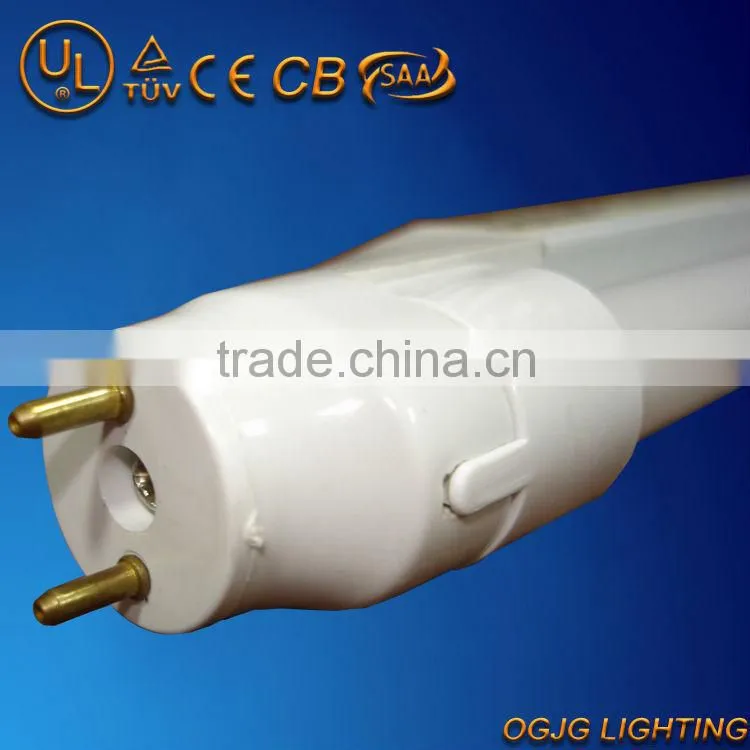

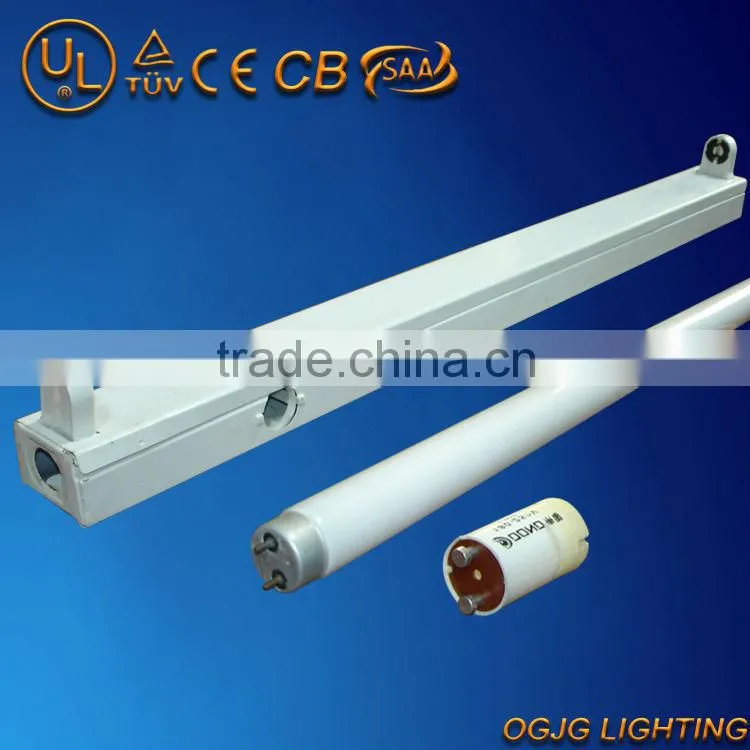

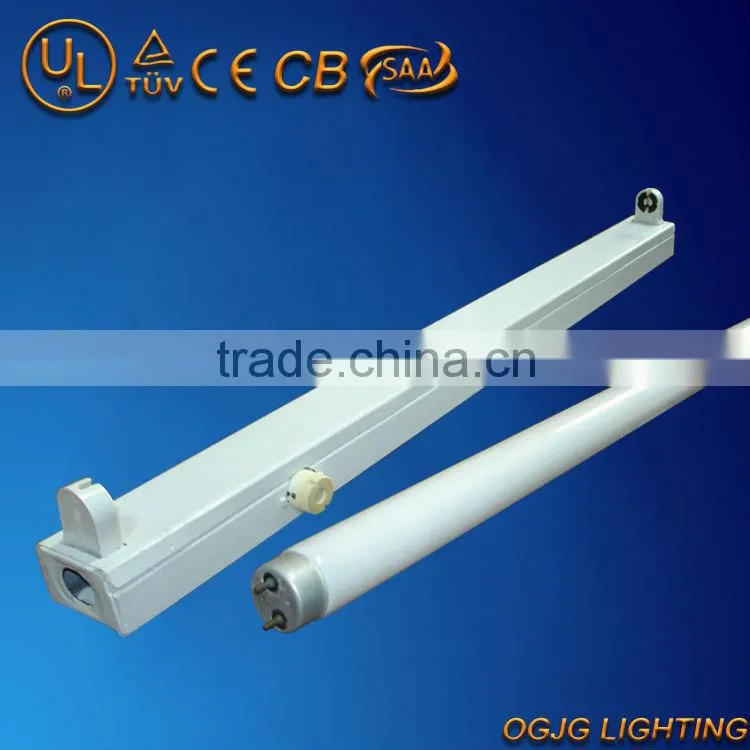

t8 to t5 fluorescent ceiling lamps, retrofit kit UL SAA CE C-Tick approved
CE, SAA, C-TICK, EEI=A2
built-in high power factor electronic ballast, for voltage supply 110V, 240V,277V,110~277V optional.
aluminium with white coating or shiny treatment.
save power up to 40% comparing with T8/T10 light fittings with magnetic ballasts.
with nano mirror reflecting film, saving power uo to 60%.
aluminium/pc optional materials.
| Model | Power | Lamps | Replace T8 | Fixture Dim(LxWxH)mm | Pcs./ctn. |
| OG-T8/T5-35(C) | 1X35W | T5 1X35W | 58W | 1514x25x38 | 30 |
| OG-T8/T5-28(C) | 1X28W | T5 1X28W | 36W/40W | 1214x25x38 | 30 |
| OG-T8/T5-21(C) | 1X21W | T5 1X21W | 30W | 910x25x38 | 30 |
| OG-T8/T5-14(C) | 1X14W | T5 1X14W | 18/20W | 606x25x38 | 30 |
| Moder | Power | Lamps | Replace T8 | Fixture Dim(L×W×H)mm |
| OG-T8/T5-28(UL 110-270V) | 28W | T5 1X28W | 36W/40W | 1214 × 25 × 38 |
| OG-T8/T5-28(UL 277V) | 28W | T5 1X28W | 36W/40W | 1214 × 25 × 38 |
| Model Mumber | OG-T8/T5-28 |
| Fixture Material: | White coated aluminium/Polycarbonate optional |
Protection Class: |
Ⅱ |
| Moisture Protection: | lP20 |
| Input Voltage: | 220~240V AC |
| Input Frequency: | 50/60Hz |
| Total Circuit Power: | 28W±1W |
| Total Lamp Power: | 24W±1W |
| Efficiency: | >85 lm/W |
| Ballast Lifespan: | 20000H |
| Lamp Lifespan: | 15000H |
| Current Crest Factor: | ≤1.7 |
|
Power Factor: (working with current T8 magnetic ballast) |
≥0.98 |
| Total Harmonic Distortion: | ≤15% |
Cautions:
1. Switch off the electricity before replacing the lamp
2. Keep away from direct sunshine and high temperature
3. Indoor use only
4. If any doubt about the installation or use of this product, consult a competent
electrician.
Application Area:
A. Basic commercial lighting;
B. Generally matching in downlight, celling light, household lighting etc;
C. Shopping, lighting, specialty lighting, hotel lighting, office lighting, homelight;
D. Commercial show windows and bars, airport, subway, cloverleaf junction and
architecture field.
