Picture:
(without reflector)
Specification:
| Model | Power | Lamps |
Tube Dia. (mm) |
Fixture Dim. (mm) |
Carton Dim. (mm) |
Pcs./ctn. (pcs) |
Material |
| OG-ZT5-G280(HL) | 2x80w | T5 2x80w | Φ 16 | 1470x73x67 | 1575x220x170 | 20 | aluminium alloy |
| OG-ZT5-G254(HL) | 2x54w | T5 2x54w | Φ 16 | 1170x73x67 | 1275x220x170 | 20 | |
| OG-ZT5-G239(HL) | 2x39w | T5 2x39w | Φ 16 | 870x73x67 | 960x220x170 | 20 | |
| OG-ZT5-G224(HL) | 2x24w | T5 2x24w | Φ 16 | 570x73x67 | 675x220x170 | 20 | |
| OG-ZT5-G235(HL) | 2x35w | T5 2x35w | Φ 16 | 1470x73x67 | 1575x220x170 | 20 | |
| OG-ZT5-G228(HL) | 2x28w | T5 2x28w | Φ 16 | 1170x73x67 | 1275x220x170 | 20 | |
| OG-ZT5-G221(HL) | 2x21w | T5 2x21w | Φ 16 | 870x73x67 | 960x220x170 | 20 | |
| OG-ZT5-G214(HL) | 2x14w | T5 2x14w | Φ 16 | 570x73x67 | 675x220x170 | 20 |
Picture:

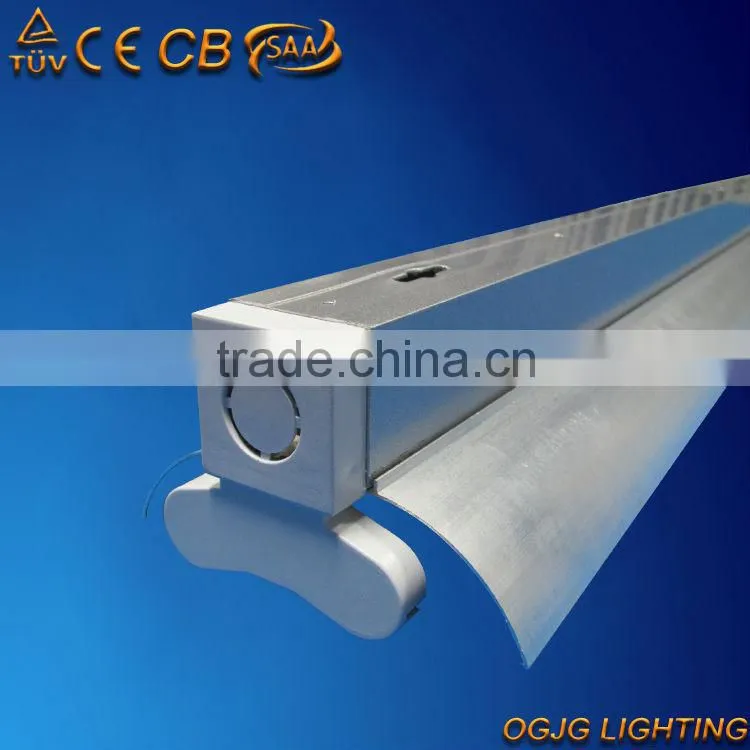

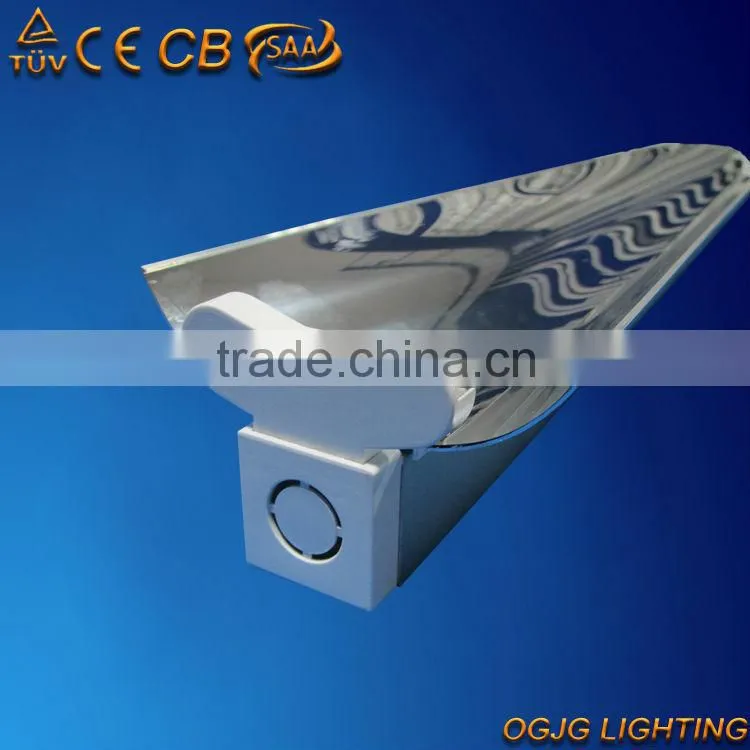

(with reflector)
Specification:
| Model | Power | Lamps |
Tube Dia. (mm) |
Fixture Dim. (mm) |
Carton Dim. (mm) |
Pcs./ctn. (pcs) |
Material |
| OG-ZT5-G280(HLZ) | 2x80w | T5 2x80w | Φ 16 | 1470x115x71 | 1575x220x170 | 12 | aluminium alloy |
| OG-ZT5-G254(HLZ) | 2x54w | T5 2x54w | Φ 16 | 1170x115x71 | 1275x220x170 | 12 | |
| OG-ZT5-G239(HLZ) | 2x39w | T5 2x39w | Φ 16 | 870x115x71 | 960x220x170 | 12 | |
| OG-ZT5-G224(HLZ) | 2x24w | T5 2x24w | Φ 16 | 570x115x71 | 675x220x170 | 12 | |
| OG-ZT5-G235(HLZ) | 2x35w | T5 2x35w | Φ 16 | 1470x115x71 | 1575x220x170 | 12 | |
| OG-ZT5-G228(HLZ) | 2x28w | T5 2x28w | Φ 16 | 1170x115x71 | 1275x220x170 | 12 | |
| OG-ZT5-G221(HLZ) | 2x21w | T5 2x21w | Φ 16 | 870x115x71 | 960x220x170 | 12 | |
| OG-ZT5-G214(HLZ) | 2x14w | T5 2x14w | Φ 16 | 570x115x71 | 675x220x170 | 12 |
Materials:
Both fixture and reflectors are made of extruded aluminium alloy,surface treatment sandblast,shiny and white coating optional
Electronic feature:
Built-in high power factor electronic ballast,110v/240v/110~277v optional
Installation:
Surface mounted,ceiling,pendant.
Applications:
Office,factory,supermarket etc.
