EMC electronic ballast for fluorescent lamp,2x54w t5 electronic ballast ,EN61347-1,EN61347-2-3,EN61347,EN55015,EN61000-3-2,EN61000-3-3.
1.Environment steel casing,screwless terminal block.
2.Programmed soft start.
3.With abnormal status self-protection function.
4.Sufficient power,high power factor,low harmonic,EMC test passed.
5.Wide range input voltage supply,constant output power.
6.5 years life-span.
7.Compliant with standards: EN61347-1,EN61347-2-3,EN61347,EN55015,EN61000-3-2,EN61000-3-3 .
Specificate:
| Model | Lamp | Voltage | System power | Power factor | THD | CF | Ambient Temp | Casing Temp | Hole spacing(mm) | Dimensions |
| OG-E80 | T5HO 1×80W | 110-277V | ≤85W | ≥0.99 | ≤10% | ≤1.4 | -10~50°C | 70°C | 350 | 360×30×28 |
| OG-E54 | T5HO 1×54W | 110-277V | ≤60W | ≥0.99 | ≤10% | ≤1.4 | -10~50°C | 70°C | 350 | 360×30×28 |
| OG-E49 | T5HO 1×49W | 110-277V | ≤56W | ≥0.99 | ≤10% | ≤1.4 | -10~50°C | 70°C | 350 | 360×30×28 |
| OG-E39 | T5HO 1×39W | 110-277V | ≤45W | ≥0.99 | ≤10% | ≤1.4 | -10~50°C | 70°C | 190 | 360×30×28 |
| OG-E24 | T5HO 1×24W | 110-277V | ≤28W | ≥0.99 | ≤10% | ≤1.4 | -10~50°C | 70°C | 350 | 360×30×28 |
| Model | Lamp | Voltage | System power | Power factor | THD | CF | Ambient Temp | Casing Temp | Hole spacing(mm) | Dimensions |
| OG-E254 | T5HO 2×54W | 110-277V | ≤118W | ≥0.99 | ≤10% | ≤1.4 | -10~50°C | 70°C | 350 | 360×30×28 |
| OG-E249 | T5HO 2×49W | 110-277V | ≤99W | ≥0.99 | ≤10% | ≤1.4 | -10~50°C | 70°C | 350 | 360×30×28 |
| OG-E239 | T5HO 2×39W | 110-277V | ≤85W | ≥0.99 | ≤10% | ≤1.4 | -10~50°C | 70°C | 350 | 360×30×28 |
| OG-E224 | T5HO 2×24W | 110-277V | ≤54W | ≥0.99 | ≤10% | ≤1.4 | -10~50°C | 70°C | 350 | 360×30×28 |

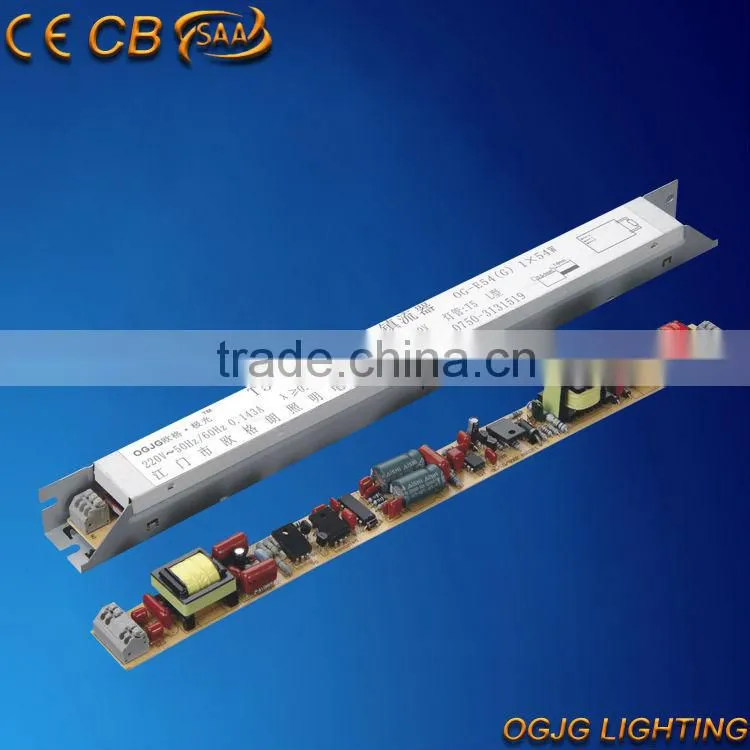

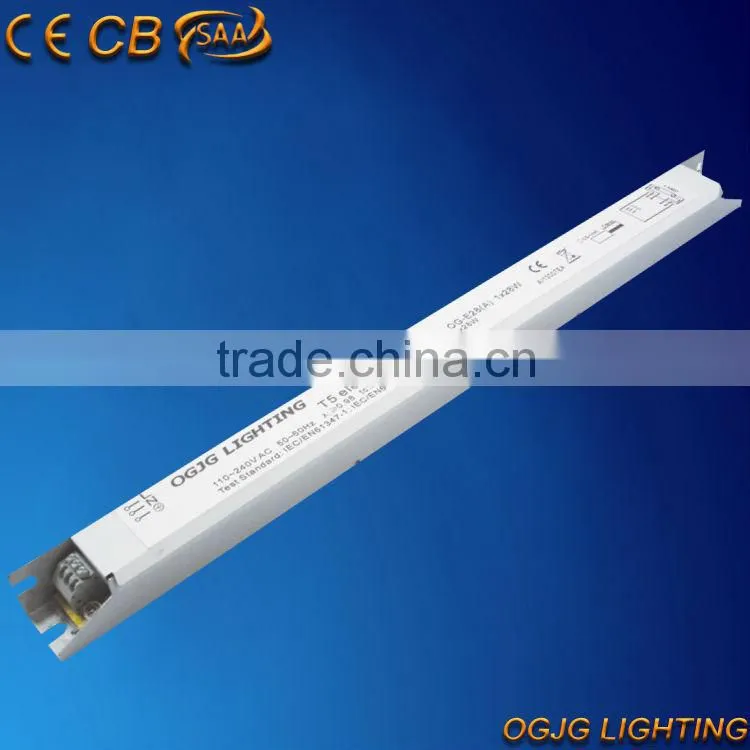

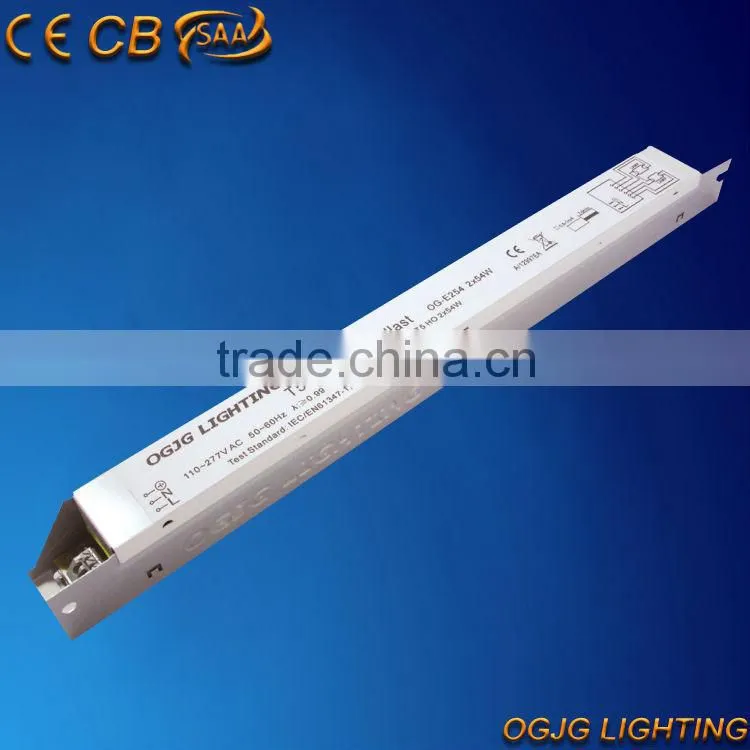

Picture:
Hong Kong Lighting Fair in 2013:
Our showroom with all products:
Good feedback from Customers:
Please feel free to scan the two-dimensional bar code as below by your cellphone.
Much appreciate you could keep my contact information in your phone and focus on our products.
Do you have any question, please do not hesitate to contact me. Thank you very much!
