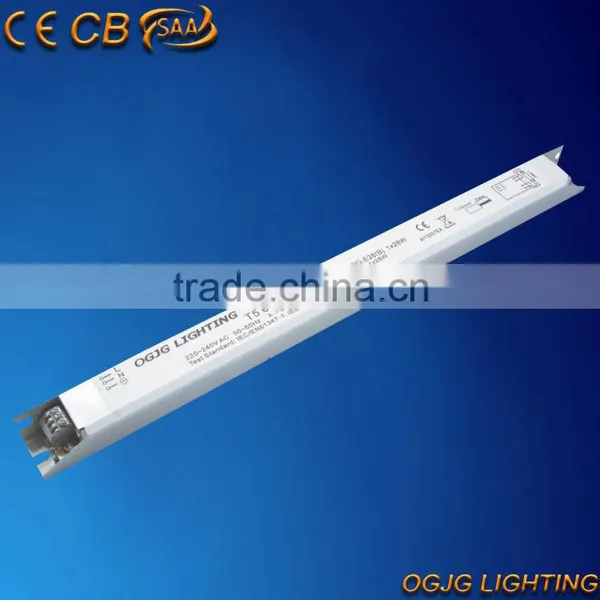

Help CenterEMC t5 Electronic Ballast 32w
US$ 5.08 - 7.46
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OGJG
Model Number:
OG-E80
Payment & Shipping
Payment Methods:
Port of Shipment:
jiangmen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EMC Fluorescent Lighting Electronic Ballast 40w,electronic Ballast for Tube LightUS$ 5.08 - 7.46MOQ: 100 Pieces -
EMC t5 Electronic Ballast,2x36w Electronic Ballast,lighting Electronic BallastUS$ 5.08 - 7.46MOQ: 100 Pieces
-
EMC t5 Electronic Ballast,t5 Fluorescent Electronic Ballast,t5 2x54w BallastUS$ 5.08 - 7.46MOQ: 100 Pieces
-
EMC t5 Electronic Ballast,electronic Ballast for T5,t5 2x54w BallastUS$ 5.08 - 7.46MOQ: 100 Pieces
-
OGJG EMC t5 Electronic Ballast,electronic Ballast T5/t8,t5 2x54w BallastUS$ 5.08 - 7.46MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
OGJG
Model Number
OG-E80
Style
Electronic
Usage
Other, T5 HO single/twin lamp
Matched Tube
T5
Power Factor Compensation
Active
EMC t5 electronic ballast 32w ,EN61347-1,EN61347-2-3,EN61347,EN55015,EN61000-3-2,EN61000-3-3.
1.Environment steel casing,screwless terminal block.
2.Programmed soft start.
3.With abnormal status self-protection function.
4.Sufficient power,high power factor,low harmonic,EMC test passed.
5.Wide range input voltage supply,constant output power.
6.5 years life-span.
7.Compliant with standards: EN61347-1,EN61347-2-3,EN61347,EN55015,EN61000-3-2,EN61000-3-3 .
| Model | Lamp | Voltage | System power | Power factor | THD | CF | Ambient Temp | Casing Temp | Hole spacing(mm) | Dimensions |
| OG-E80 | T5HO 1×80W | 110-277V | ≤85W | ≥0.99 | ≤10% | ≤1.4 | -10~50°C | 70°C | 350 | 360×30×28 |
| OG-E54 | T5HO 1×54W | 110-277V | ≤60W | ≥0.99 | ≤10% | ≤1.4 | -10~50°C | 70°C | 350 | 360×30×28 |
| OG-E49 | T5HO 1×49W | 110-277V | ≤56W | ≥0.99 | ≤10% | ≤1.4 | -10~50°C | 70°C | 350 | 360×30×28 |
| OG-E39 | T5HO 1×39W | 110-277V | ≤45W | ≥0.99 | ≤10% | ≤1.4 | -10~50°C | 70°C | 190 | 360×30×28 |
| OG-E24 | T5HO 1×24W | 110-277V | ≤28W | ≥0.99 | ≤10% | ≤1.4 | -10~50°C | 70°C | 350 | 360×30×28 |
| Model | Lamp | Voltage | System power | Power factor | THD | CF | Ambient Temp | Casing Temp | Hole spacing(mm) | Dimensions |
| OG-E254 | T5HO 2×54W | 110-277V | ≤118W | ≥0.99 | ≤10% | ≤1.4 | -10~50°C | 70°C | 350 | 360×30×28 |
| OG-E249 | T5HO 2×49W | 110-277V | ≤99W | ≥0.99 | ≤10% | ≤1.4 | -10~50°C | 70°C | 350 | 360×30×28 |
| OG-E239 | T5HO 2×39W | 110-277V | ≤85W | ≥0.99 | ≤10% | ≤1.4 | -10~50°C | 70°C | 350 | 360×30×28 |
| OG-E224 | T5HO 2×24W | 110-277V | ≤54W | ≥0.99 | ≤10% | ≤1.4 | -10~50°C | 70°C | 350 | 360×30×28 |
