Home > Lights & Lighting > Lighting Fixtures > Ballast > Standard Electronic Hid Ballast for t5 t8 Single Twin Lamp Lighting Ballast

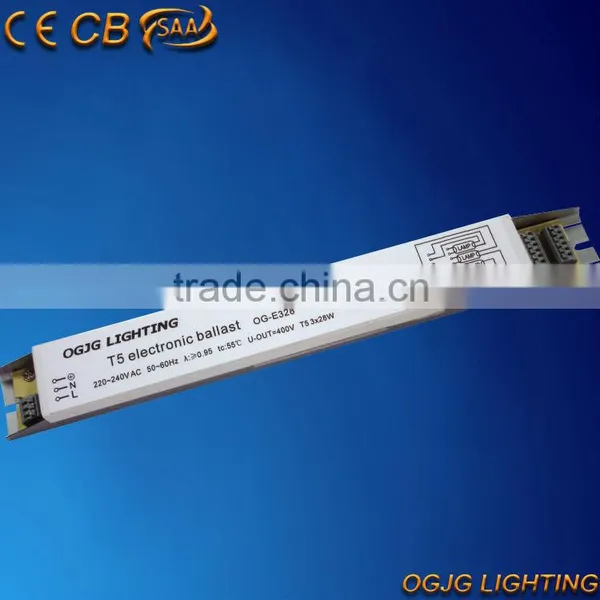

Standard Electronic Hid Ballast for t5 t8 Single Twin Lamp Lighting Ballast
US$ 2.14 - 3.49
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OGJG
Model Number:
OG-E35(B)
Payment & Shipping
Payment Methods:
Port of Shipment:
jiangmen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Standard Electronic Ballast for Fluorescent Lamp 28w 14w 36w 18wUS$ 4.44 - 5.33MOQ: 100 Pieces -
CE,CB,EMC,SAA,CCC Certified Electronic Ballast t5 Electronic Ballast for T5 Circular Lamp 32wUS$ 2.86 - 3.02MOQ: 100 Pieces
-
CE t5 Electronic Ballast for t5 Circular Fluorescent LampUS$ 1.51 - 1.71MOQ: 100 Pieces
-
Electronic Ballast for MR16US$ 1.51 - 2.03MOQ: 100 Pieces
-
EMC Electronic Ballast for Fluorescent Lamp,2x54w t5 Electronic BallastUS$ 5.08 - 7.46MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
OGJG
Model Number
OG-E35(B)
Style
Electronic
Usage
Other, T5/T8 single/twin lamp
Matched Tube
Other, T5/T8
Power Factor Compensation
Active
standard electronic hid ballast for t5 t8 single twin lamp lighting ballast,3 years life-span.
1.Environment steel casing,screwless terminal block.
2.Pre-heat start,with abnormal status self-protection function.
3.Sufficient power,high power factor,low harmonic.
4.3 years life-span.
For single lamp:
For twin lamp:
| Model | Lamp | Voltage | System power | Power factor | THD | CF | Ambient Temp | Casing Temp | Hole spacing(mm) | Dimensions |
| OG-E35(B) | T5 1×35W | 220V | ≤38 | ≥0.97 | ≤20% | ≤1.7 | -10~50°C | 70°C | 290 | 302×24×22 |
| OG-E28(B) | T5 1×28W | 220V | ≤31 | ≥0.97 | ≤20% | ≤1.7 | -10~50°C | 70°C | 290 | 302×24×22 |
| OG-E21(B) | T5 1×21W | 220V | ≤24 | ≥0.97 | ≤20% | ≤1.7 | -10~50°C | 70°C | 290 | 302×24×22 |
| OG-E14(B) | T5 1×14W | 220V | ≤17 | ≥0.97 | ≤20% | ≤1.7 | -10~50°C | 70°C | 290 | 302×24×22 |
| Model | Lamp | Voltage | System power | Power factor | THD | CF | Ambient Temp | Casing Temp | Hole spacing(mm) | Dimensions |
| OG-E235(B) | T5 2×35W | 220V | ≤74 | ≥0.97 | ≤20% | ≤1.7 | -10~50°C | 70°C | 280 | 290×30×25 |
| OG-E228(B) | T5 2×28W | 220V | ≤61 | ≥0.97 | ≤20% | ≤1.7 | -10~50°C | 70°C | 280 | 290×30×25 |
| OG-E221(B) | T5 2×21W | 220V | ≤49 | ≥0.97 | ≤20% | ≤1.7 | -10~50°C | 70°C | 280 | 290×30×25 |
| OG-E214(B) | T5 2×14W | 220V | ≤32 | ≥0.97 | ≤20% | ≤1.7 | -10~50°C | 70°C | 280 | 290×30×25 |
| Model | Lamp | Voltage | System power | Power factor | THD | CF | Ambient Temp | Casing Temp | Hole spacing(mm) | Dimensions |
| OG-E58(B) | T8 1×58W | 220V | ≤58 | ≥0.97 | ≤20% | ≤1.7 | -10~50°C | 70°C | 280 | 302×24×22 |
| OG-E36(B) | T8 1×36W | 220V | ≤41 | ≥0.97 | ≤20% | ≤1.7 | -10~50°C | 70°C | 280 | 302×24×22 |
| OG-E32(B) | T8 1×32W | 220V | ≤35 | ≥0.97 | ≤20% | ≤1.7 | -10~50°C | 70°C | 280 | 302×24×22 |
| OG-E30(B) | T8 1×30W | 220V | ≤32 | ≥0.97 | ≤20% | ≤1.7 | -10~50°C | 70°C | 280 | 302×24×22 |
| OG-E18(B) | T8 1×18W | 220V | ≤22 | ≥0.97 | ≤20% | ≤1.7 | -10~50°C | 70°C | 280 | 302×24×22 |
| OG-E16(B) | T8 1×16W | 220V | ≤18 | ≥0.97 | ≤20% | ≤1.7 | -10~50°C | 70°C | 280 | 302×24×22 |
| Model | Lamp | Voltage | System power | Power factor | THD | CF | Ambient Temp | Casing Temp | Hole spacing(mm) | Dimensions |
| OG-E258(B) | T8 2×58W | 220V | ≤116 | ≥0.99 | ≤10% | ≤1.4 | -10~50°C | 70°C | 350 | 360×30×28 |
| OG-E236(B) | T8 2×36W | 220V | ≤79 | ≥0.97 | ≤20% | ≤1.7 | -10~50°C | 70°C | 280 | 290×30×25 |
| OG-E232(B) | T8 2×32W | 220V | ≤70 | ≥0.97 | ≤20% | ≤1.7 | -10~50°C | 70°C | 280 | 290×30×25 |
| OG-E230(B) | T8 2×30W | 220V | ≤64 | ≥0.97 | ≤20% | ≤1.7 | -10~50°C | 70°C | 280 | 290×30×25 |
| OG-E218(B) | T8 2×18W | 220V | ≤40 | ≥0.97 | ≤20% | ≤1.7 | -10~50°C | 70°C | 280 | 290×30×25 |
| OG-E216(B) | T8 2×16W | 220V | ≤35 | ≥0.97 | ≤20% | ≤1.7 | -10~50°C | 70°C | 280 | 290×30×25 |
