Specifications

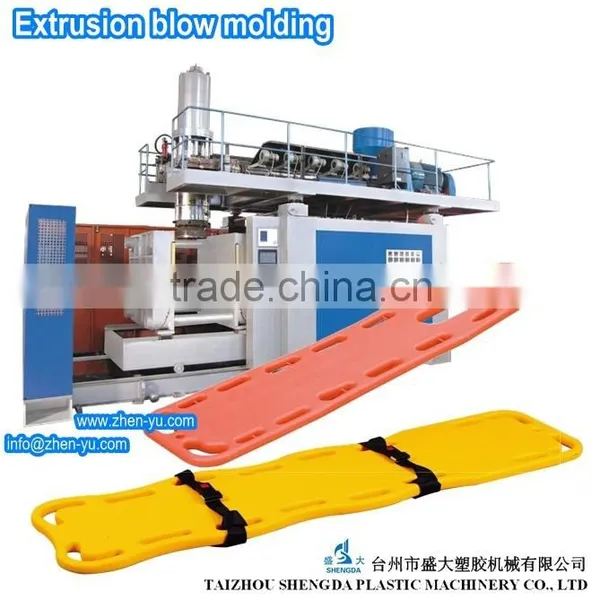

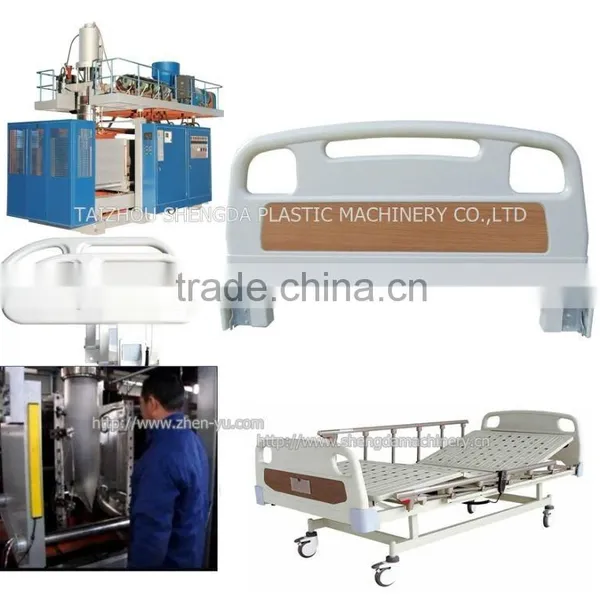

extrusion blowing machine-medical bedMax.end product:140*220cm 28KG
screw diameter:135mm
PLC+touch screen
extrusion blowing machine-medical bed max.:1.4m*2.2m

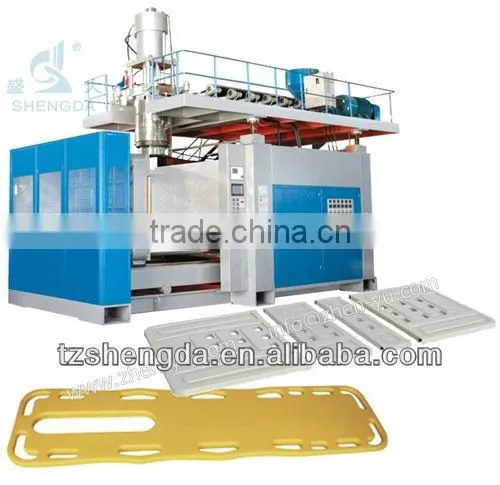

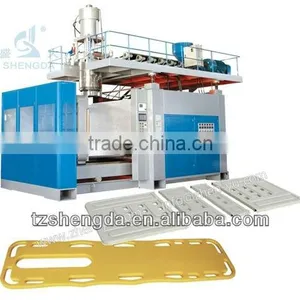

ZK-135B Model automatic large extrusion blow molding machine---This model adopts accumulator die. Parison programmer is available to control thickness.This model is automatic process with low noise, saving energy, high efficiency,safe operation, easy maintenance and other benefits. This model is widely used to produce chemical barrel, auto parts ( water box, oil box, air-condition pipe,aoto tail), toys(wheel,hollow autobike, basketball stands,baby castle), tool box,vacuum cleaner pipe, chairs for bus and gymnasium,etc.
Features:
1) Controlled by Japan mitsubishi PLC
2) Temperature controlled model
3) Interactive monitor with machine-human interface
4) Imported hydraulic elements
5) Proportional control
6) Imported electric elements
7) Hard gear surface reducer
8) Accumulator head with special steel
9) Vicker hydraulic valve, seal and proportional control
10) Japan mitsubishi PLC+ Taiwan human machine interface +software in touch type +famous brand electric elements.
following is the technical specifications:
specification |
unit |
zk-135B |
max container capacity |
L |
500 |
number of die heads |
set |
1 |
machine dimension(L*W*H) |
M |
8*3.6*5.2 |
total weight |
ton |
32 |
clamping unit |
|
|
clamping force |
KN |
1800 |
clamping speed |
m/min |
10 |
platen opening stroke |
mm |
600-1600 |
platen size(W*H) |
mm |
2000*1700 |
mould thickness |
mm |
500-800 |
power |
|
|
max drive |
KW |
30 |
total power |
KW |
250 |
air pressure |
Mpa |
1 |
air consumption |
m3/min |
5 |
extruder unit |
|
|
screw diameter |
m |
135 |
screw L/D ratio |
L/D |
28:1 |
plasticizing capacity |
kg/hr |
320 |
number of heating zone |
zone |
5 |
extruder heating power |
KW |
30 |
extruder driving power |
KW |
63/160 |
accumulator head |
|
|
number of heating zone |
zone |
5 |
power of die heating |
KW |
6 |
max die-pin diameter |
mm |
750 |
accumulator volume |
KG |
40 |
Extrusion blow molding machine; Blow molding machine; PE blow molding machine;PP blow molding machine;ABS blow molding machine;HDPE blow molding machine; EVA blow molding mahicne; Automatic blow molding machine;Single screw blow molding machine; Double screw blow molding machine; 5 gallon jerry can; 20L jerry can; stackable container; 60L plastic drum
