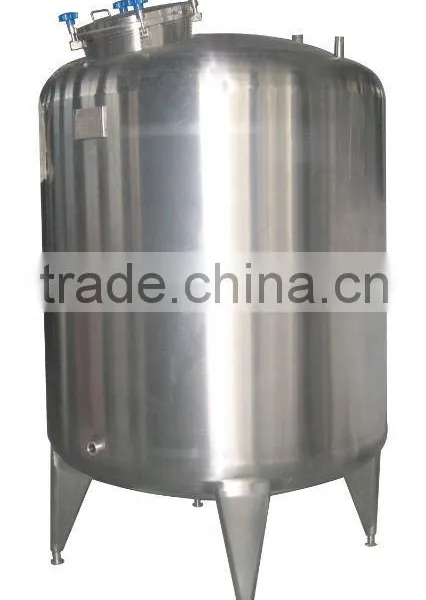

Vertical Liquid Storage Tank

Name: Vertical Liquid Storage Tank
Brand: Haichuan
SKU: 110876173
Availability: InStock

Vertical Liquid Storage Tank thumbnail-1

US$ 300 - 5,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Capacity:

1000L-10T

Place of Origin:

Zhejiang, China

Contact Supplier Request Quote Chat Now

Wenzhou Haichuan Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Capacity 1000L-10T

Place of Origin Zhejiang, China

Brand Name Haichuan

Model Number GY-07

Dimension(L*W*H) according to tank's capacity

Weight according to tank's capacity

Certification CE/ISO

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Tank's details description :

1.The manufacturing , pressure test and acceptance of the series of storage tanks are in accordance with “Steel made pressure vessel” and “technical requirements on manufacturing of steel made chemical vessel” .

2.The specifications for selection are 200L-8000L various volumes. It can also be design and processed according to actual requirements of customers .

3.The series of storage tanks are mainly applicable for the storage of large transfusion . Water injection , oral liquid and deionized water (purified water).

4.The tank body is equipped with high precise liquid level , respirator , view lamp , tank cleaning device , manhole or hand hole , digital displayed thermometer and several rapid installation interfaces .

5.The interface adopts internationally general-use ISO standard rapid installation chuck type . The plate of tank body adopts imported 316L or 304. The internal surface mirror polishing Ra0.28-0.45um, and the external surface adopts imported 304 mirror board polishing or semi-luster polishing .

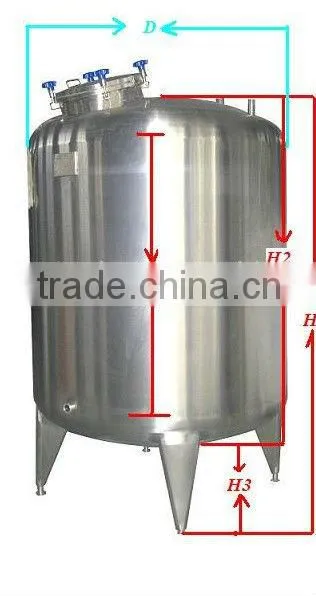

Main technical parameters:

Specification	Reference size (mm)
	D	H1	H2	H3	H	DN
200	700	400	800	235	1085	32
250	800	400	850	235	1135	32
300	800	460	910	235	1195	32
500	900	640	1140	270	1460	40
600	900	830	1130	270	1450	40
800	1000	880	1430	270	1750	40
1000	1100	880	1480	270	1800	40
1200	1100	1100	1700	270	2020	40
1500	1200	1150	1800	270	2120	40
2000	1400	1220	1970	280	2300	40
2500	1500	1150	1980	280	2310	40
3000	1600	1220	2120	280	2450	40
4000	1800	1250	2250	280	2580	40
5000	1900	1500	2550	320	2950	50
7000	2200	1450	2650	320	3050	50
8000	2200	1750	2950	320	3350	50
