Home > Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Chemical Storage & Transportation Equipment > Horizontal Liquid Storage Tank/horizontal Storage Tanks

Horizontal Liquid Storage Tank/horizontal Storage Tanks

Name: Horizontal Liquid Storage Tank/horizontal Storage Tanks
Brand: Haichuan
SKU: 110876183
Availability: InStock

Horizontal Liquid Storage Tank/horizontal Storage Tanks thumbnail-1

Horizontal Liquid Storage Tank/horizontal Storage Tanks photo-1

US$ 300 - 5,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Capacity:

1000L-10T

Place of Origin:

Zhejiang, China

Contact Supplier Request Quote Chat Now

Wenzhou Haichuan Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Capacity 1000L-10T

Place of Origin Zhejiang, China

Brand Name Haichuan

Model Number GY-02

Dimension(L*W*H) according to tank's capacity

Weight according to tank's capacity

Certification CE/ISQ

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Tank's details description :

1.The manufacturing , pressure test and acceptance of the series of storage tanks are in accordance with “Steel made pressure vessel” and “technical requirements on manufacturing of steel made chemical vessel” .

2.The specifications for selection are 1000L-20000L various volumes. It can also be design and processed according to actual requirements of customers .

3.The interface adopts internationally general-use ISO standard rapid rapid installation chuck type . The tank body is equipped with high precise liquid level , digital displayed thermometer , tank cleaning device , view lamp , manhole and several rapid installation interfaces .

4.The material of tank body adopts imported 316L or 304. The internal surface mirror polishing Ra0.28-0.45um, and the external surface adopts imported mirror polishing or semi-luster polishing .

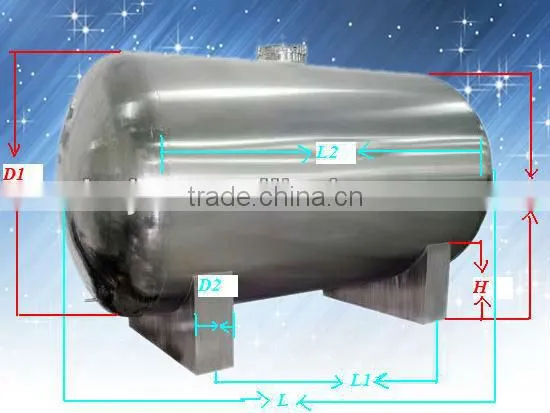

Main technical parameters:

Specification	Reference size (mm)
Specification	D	D2	L1	L2	L	H	D1	DN
1000	1000	150	1000	1130	1680	270	400	40
1200	1000	150	1160	1450	2000	270	400	40
1500	1100	150	1100	1400	2000	270	400	40
2000	1200	150	1300	1730	2380	270	400	40
2500	1300	150	1400	1770	2470	280	500	40
3000	1400	150	1400	1930	2680	280	500	40
4000	1500	200	1600	2160	2960	320	500	40
5000	1600	200	1700	2400	3280	320	500	50
6000	1700	200	1840	2550	3480	320	500	50
8000	1900	250	2070	2750	3780	320	500	50
10000	2000	250	2270	3100	4180	320	500	50
12000	2100	280	2460	3400	4550	360	500	65
15000	2300	280	2640	3600	4850	360	500	65
20000	2500	280	2860	3900	5250	360	500	65
