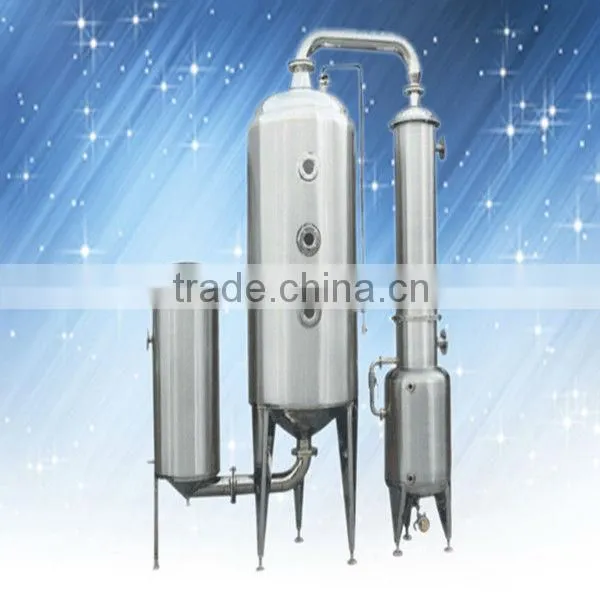

single effect external circulation vacuum concentrator
1 Alcohol recycling:
Big recycling capacity with vacuum contracting flow, 5-10 times of productivity than the old types, 30% of energy cost, small investment and big profit.
2 Contracting material:
Combination of external heating cycling and vacuum vaporizing, quick vaporizing speed, contracting rate 1:3; In the complete sealing, there is no foaming and the contracted medicine is not polluted and of strong medicine flavor. And it is easy to clean (cleaning can be done after opening the upper and lower lids). The machine is of easy operation, covers small area. The heater, vaporizer adopts the stainless steel heat keeping structure. The shell is stainless steel, and the surface is mirror processed and matted.
(Concentrator,vacuum concentrator,pharmaceutical machine concentrator)
single effect external circulation vacuum concentrator could even be designed in accordance with the requirements of customers.
Brief introduction :
The equipment is applicable or industrial alcohol recycling of Chinese medicines , western medicines , grape sugar , wine brewing , starch , oral liquids , chemical industry , foods , natural condiments , natural food additives , mono sodium glutamate and dairy products . It can be used in the low temperature vacuum concentration of heat sensitive substances with small batches and larges varieties .
Item |
Heater |
Evaporator |
Condenser |
|||||
Shell side |
Pipe side |
In tank |
Shell side |
Shell side |
Pipe side |
|||
Designed pressure (Mpa) |
0.35 |
0.09 |
0.09 |
0.35 |
0.3 |
0.09 |
||
Working pressure (Mpa) |
< 0.3 |
- 0.09 |
- 0.09 |
< 0.3 |
0.25 |
- 0.09 |
||
Designed temperature (°C) |
≥ 100 |
< 100 |
< 100 |
> 100 |
30~40 |
< 100 |
||
Working temperature (°C) |
≥ 100 or < 100 |
< 100 |
< 100 |
> 100 |
30~40 |
< 100 |
||
Medium |
Saturated steam |
Medical liquid, food |
Medical liquid, food |
Saturated steam |
Cooling water |
steam |
||
Main materials |
SS304 |
SS304 |
SS304 |
Q-235-A |
SS304 |
SS304 |
||
Volume (L) |
1100 |
|||||||
Heat exchange area (m2) |
6.5 |
1.3 |
18 |
|||||
Evaporating capacity (L/H) |
500 |
|||||||
Item |
Heater |
Evaporator |
Condenser |
|||||
Shell side |
Pipe side |
In tank |
Shell side |
Shell side |
Pipe side |
|||
Designed pressure (Mpa) |
0.35 |
0.09 |
0.09 |
0.09 |
0.3 |
0.09 |
||
Working pressure (Mpa) |
< 0.03 |
- 0.09 |
- 0.07 |
< 0.09 |
0.25 |
- 0.07 |
||
Designed temperature (°C) |
≥ 100 |
< 100 |
< 100 |
< 100 |
30~40 |
< 100 |
||
Working temperature (°C) |
≥ 100 or < 100 |
< 100 |
< 100 |
< 100 |
30~40 |
< 100 |
||
Medium |
Saturated steam |
Medical liquid, food |
Medical liquid, food |
Saturated steam |
Cooling water |
steam |
||
Main materials |
SS304 |
SS304 |
SS304 |
Q-235-A |
SS304 |
SS304 |
||
Volume (L) |
1500 |
|||||||
Heat exchange area (m2) |
11 |
1.8 |
34 |
|||||
Evaporating capacity (L/H) |
1000 |
|||||||
