DZD2 Series Electromagnetic Clutch/ Brakes

DZD2 Series Electromagnetic Clutch/ Brakes thumbnail-1
DZD2 Series Electromagnetic Clutch/ Brakes thumbnail-2
DZD2 Series Electromagnetic Clutch/ Brakes photo-1
DZD2 Series Electromagnetic Clutch/ Brakes photo-2
US$ 14 - 251 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
wuhudazhong
Model Number:
DZD2-04/I
Contact Supplier Request Quote Chat Now
Wuhu Dazhong Machinery Electric Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chinese main port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Anhui, China
Brand Name wuhudazhong
Model Number DZD2-04/I

DZD2 series single disc electromagnetic clutch/brakes character

1.rated torque:2.4N.m-1000N.m

2.use circle clintheriform spring transfer torque force

3.reaction quickly,connect and separate is very reliability,can hold orginal performance.

4.friction disc without lead and asbestos.

5.energized brake and hold.

6.low noise,long service,easy installation

7.small volume,weight light,any mounting direction,long-distance and focus control is easy implement.

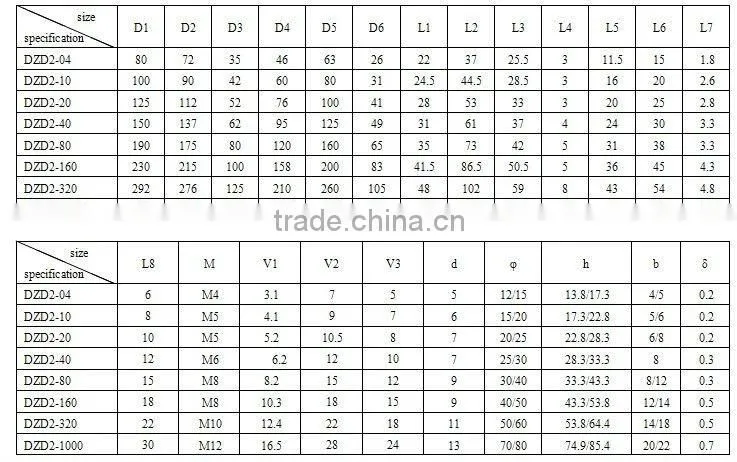

parameters specification

DZD2-04

DZD2-10

DZD2-20

DZD2-40

DZD2-80

DZD2-160

DZD2-320

DZD2-1000

Rated  brake  moment Me(N·m)

static state

4.4

11

22

45

90

175

350

1100

dynamic

4

10

20

40

80

160

320

1000

Voltage  rating          DC(V)

24,99,110,170

Power  rating         P20°C(W)

11

15

20

25

35

45

60

100

Max  gap  of  operation     (mm)

1.5

1.8

2.2

2.5

Permissible relative rotation

velocity           (rpm)

6000

5000

4000

3500

3000

2000

1500

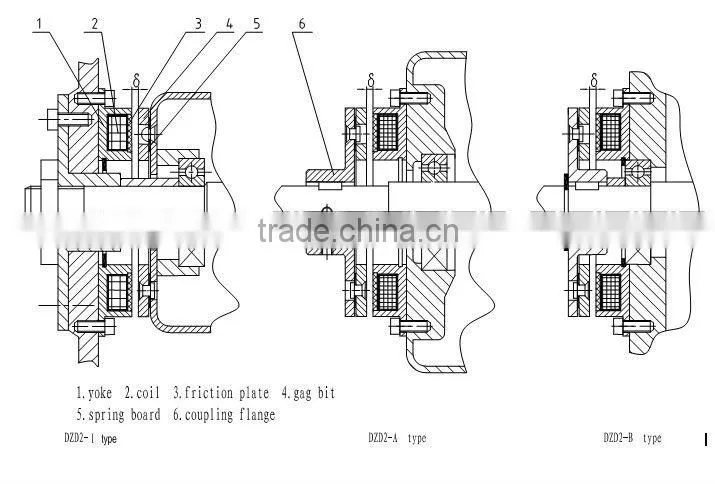

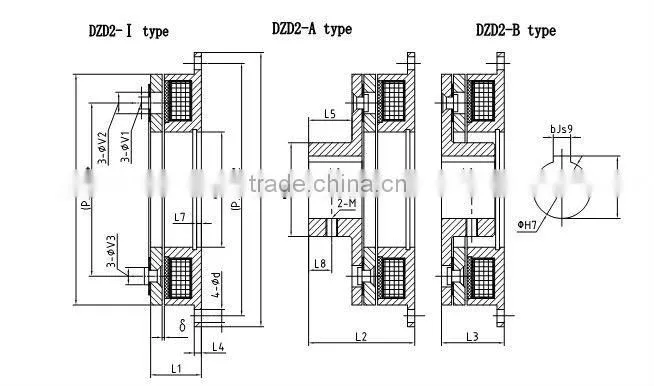

 DZD2 series electromagnetic clutch/ brakesDZD2 series electromagnetic clutch/ brakesDZD2 series electromagnetic clutch/ brakes

DZD2 series electromagnetic clutch/ brakes

DZD2 series electromagnetic clutch/ brakesDZD2 series electromagnetic clutch/ brakesDZD2 series electromagnetic clutch/ brakesDZD2 series electromagnetic clutch/ brakes
