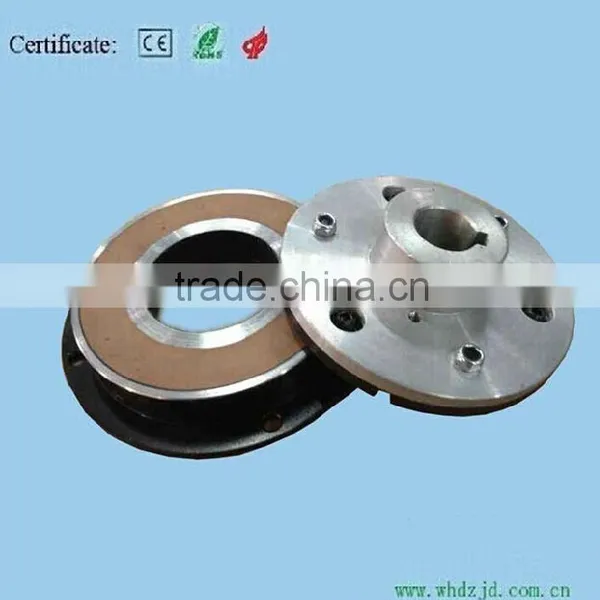

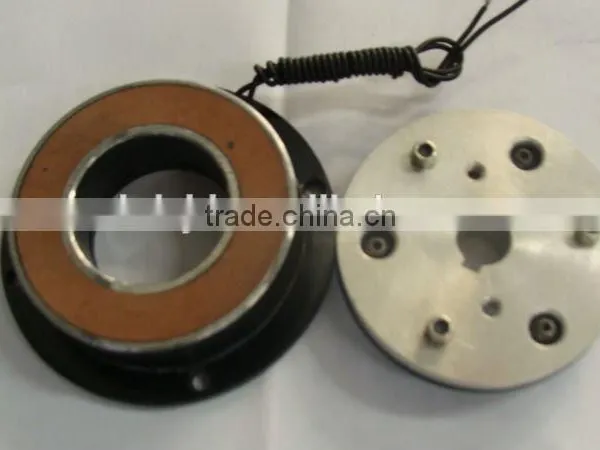

Help CenterElectromagnetic Disc Brake
Related Products
Single disc electromagnetic brake are widely used in packing machine,door drive,printing machine and instrument project etc.
1.reaction quickly,connect and separate is very reliability,can hold orginal performance.
2.friction disc without lead and asbestos.
3.energized brake and hold.
4.small volume,weight light,any mounting direction,long-distance and focus control is easy implement.
parameters specification |
DZD2-04 |
DZD2-10 |
DZD2-20 |
DZD2-40 |
DZD2-80 |
DZD2-160 |
DZD2-320 |
DZD2-1000 |
|
Rated brake moment Me(N·m) |
static state |
4.4 |
11 |
22 |
45 |
90 |
175 |
350 |
1100 |
dynamic |
4 |
10 |
20 |
40 |
80 |
160 |
320 |
1000 |
|
Voltage rating DC(V) |
24,99,110,170 |
||||||||
Power rating P20°C(W) |
11 |
15 |
20 |
25 |
35 |
45 |
60 |
100 |
|
Max gap of operation (mm) |
1.5 |
1.8 |
2.2 |
2.5 |
|||||
|
Permissible relative rotation velocity (rpm) |
6000 |
5000 |
4000 |
3500 |
3000 |
2000 |
1500 |
||
