Specifications
WSDZ1 good quanlity mini brakestorque:1N.m,Power:10w
voltage:12V,24V
environment temperature:50aa to -30aa
low noise

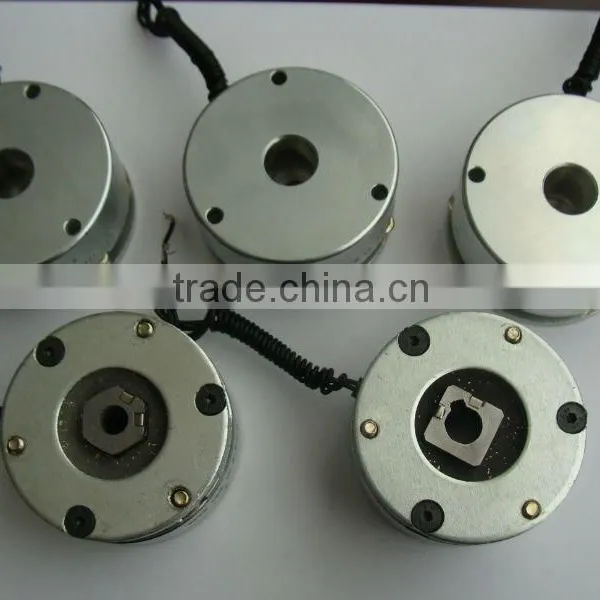

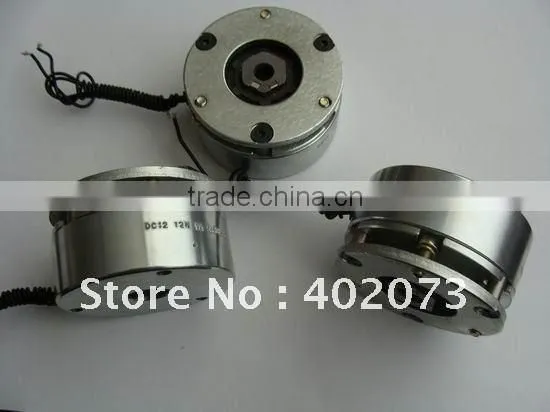

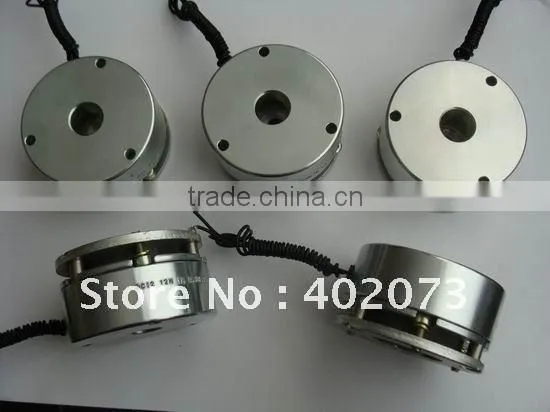

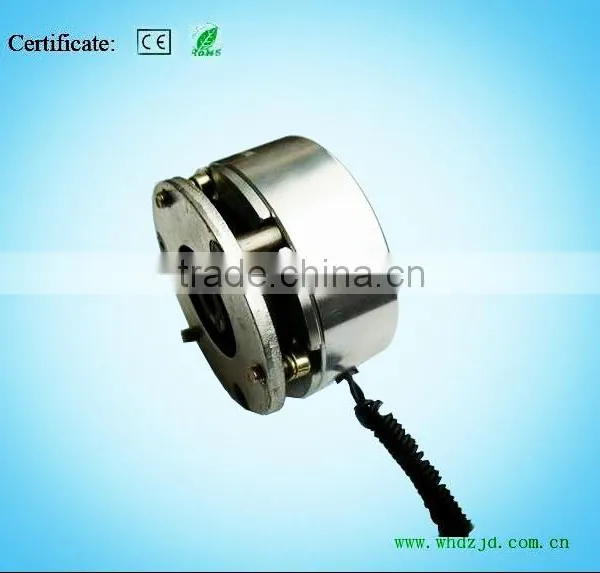

WSDZ1 series miniature electromagnetic brake loss of electricity -- pull - (released), power outages spring brake friction brake. Micromotor with matching. Widely used in the door-drive, electric wheelchairs, warehousing automation arena and the Theater machinery, automatic doors, medical equipment, Stepper Motor and other automated mechanical transmission system, with rapid parking, security braking effects. This brake is simple and compact structure, the installation of speed, low noise, smooth braking characteristics, braking, maintain two functions, is an ideal implementation of the automation components.
|
specifications Ltem names |
WSDZ1- 0.5 |
WSDZ1- 1 |
WSDZ1- 2B |
WSDZ1- 2 |
WSDZ1- 3 |
WSDZ1- 4B |
WSDZ1- 8B |
Rated Torque (N·m) |
0.5 |
1 |
2 |
2 |
3 |
4 |
8 |
Rated Power P20°C(W) |
6 |
8 |
10 |
10 |
13 |
15 |
25 |
Rated Voltage (VDC) |
110/99/48/24/12 |
||||||
Engaging Time (≤ms) |
45 |
50 |
55 |
55 |
55 |
63 |
87 |
Disanganing Time (≤ms) |
39 |
43 |
48 |
48 |
48 |
55 |
72 |
Allowable Max Speed (rpm) |
5000 |
5000 |
5000 |
5000 |
5000 |
3000 |
3000 |
