drive wheelchair brakesare mainly used in electric doorhigh frequency
low noise
easy installation

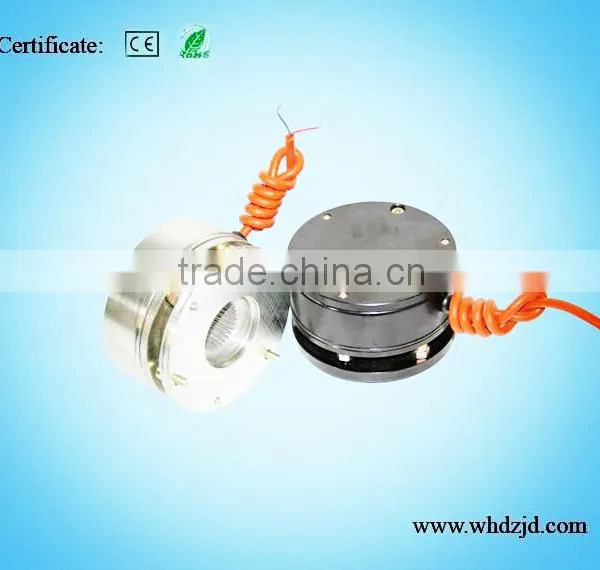

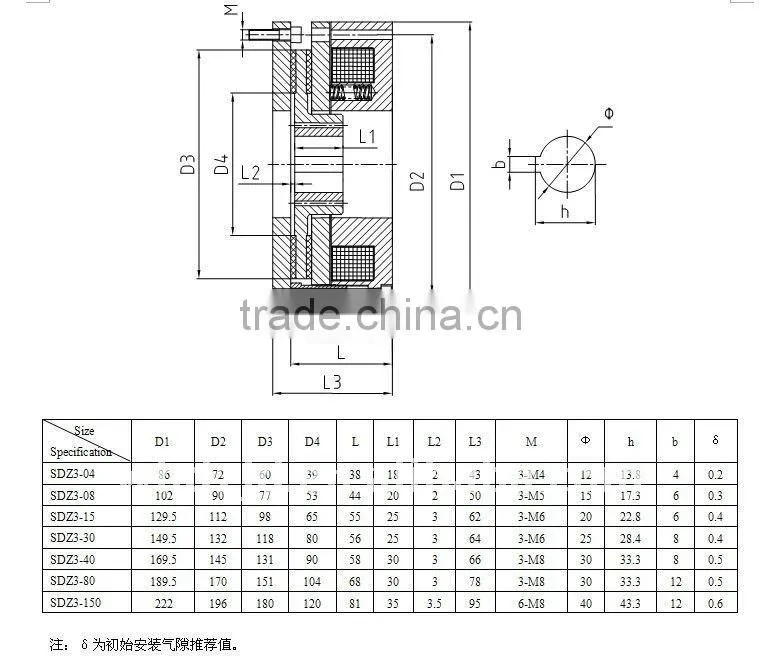

SDZ3 type electromagnetic brake spring loaded, according to the design of electric braking safety brakes, mainly used in forklift, rapid, accurate positioning, parking brake (FangXian) safety etc. Function.
When Ø spring force braking power
Ø have two-way crane brake function
Ø fully dynamic braking
Ø torque is adjustable, brake disc wear after the clearance is adjustable
Ø can release with manual
Ø can be attached and rubber sealing flange, make dustproof function
Ø transition flange (brake plate with installation
Ø electromagnet excitation coils of voltage can be designed
Ø brake disc friction slices of unleaded and asbestos
Environmental conditions of use
The brake can reliably operate under following environmental conditions:
No more than 1000 meters elevation.
Environmental temperature for operation ranges from -15°C-+40°C.
The Max.humidity on the average in most humid month is 90%,meanwhile the lowest temperature on the average of the month is required not more than 25°C.
A place requiring air or dusts within an amount that can erode metal or insulation.
Voltage fluctuation on coil not more than +5%--15% of operating voltage rating.The brake coil is allowed to decrease it’s voltage but remains above 36V in order to get fast brake or lower temperature of the coil.
The friction face should be cleaned.
