Negotiable
MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Lamp Body Material:
Aluminum
Place of Origin:
Zhejiang, China
Brand Name:
HX
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Lamp Body Material
Aluminum
Place of Origin
Zhejiang, China
Brand Name
HX
Model Number
HX3030-W18
Specifications

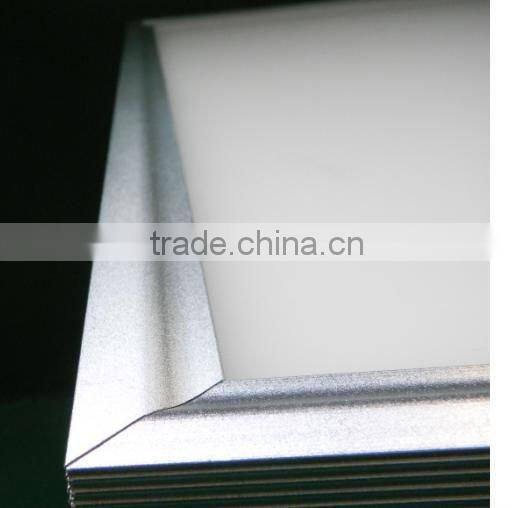

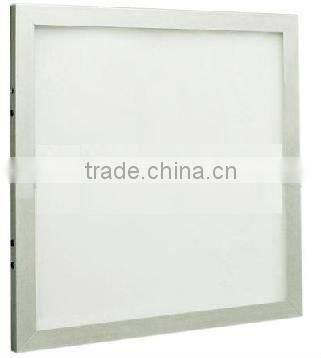

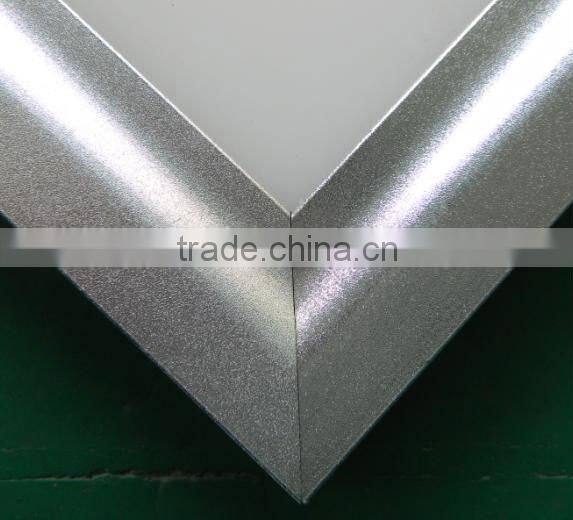

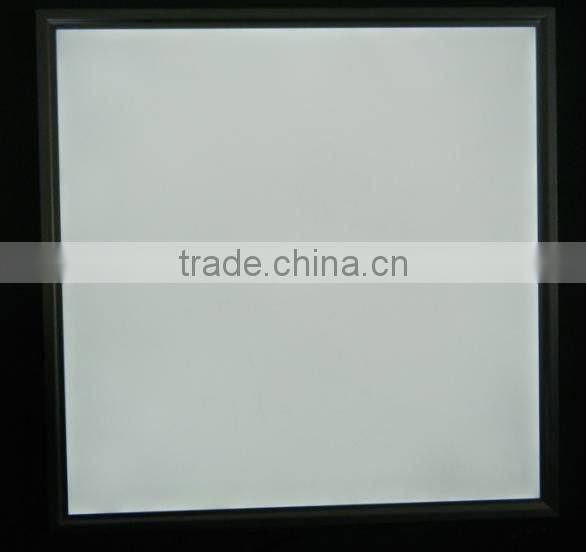

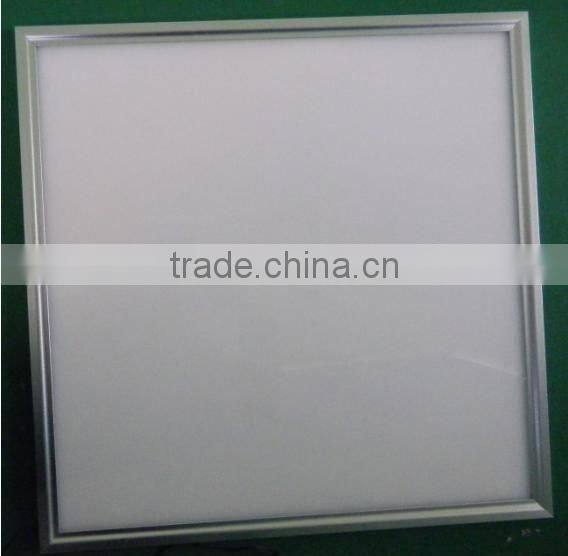

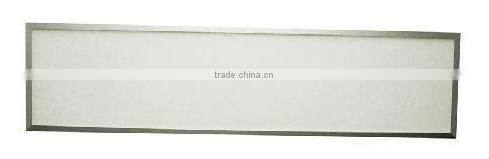

LED Panel LightSuper quality & New design
LED Panel Light
| Item No. | 3030-W18 | 6060C-W38 | 30120C-W38 | ||||
| LED Qty | 184pcs SMD3528 | 384pcs SMD3528 | 384pcs SMD3528 | ||||
| Total Power Consumption(W) | 18W | 38W | 38W | ||||
| Equal To Traditional Fluorescent Lamp | 2*14 W Down light | 3*18W T8 grid light | 3*18W T8 grid light | ||||
| Lamps Total Output Flux | 1000 lm±5% | 2200 lm±5% | 2200 lm±5% | ||||
| Dimension ( mm) | 300*300*15 mm | 600*600*15 mm | 300*1200*15 mm | ||||
| Light Dimension | 264*264mm | 564*564mm | 264*1164mm | ||||
| Color Temperature(CCT) | Cool White:6,000-7,000K & Neutral White:4,000-5,000K | ||||||
| Warm White:3,000-4,000K | |||||||
| Input Voltage(V) | 85-265VAC | ||||||
| Frequency Range(HZ) | 50/60HZ | ||||||
| Power Efficiency(%) | >=85% | ||||||
| Color Rendering Index(CRI) | 75-80Ra | ||||||
| Total Harmonic Distortion(THD) | <15% | ||||||
| Power Factor(PF) | >=0.95 | ||||||
| Beam Angle | 120º | ||||||
| Optional Color | White and R.G.B.Y | ||||||
| Working Temperature | –20 to+45°C | ||||||
| Working Humidity | 95% RH | ||||||
| Storage Temperature | 5-80°C | ||||||
| Lifespan | 30,000 hours | ||||||
| Main material | Aluminum Alloy | ||||||
| Application | office, meeting room, living room, aisle | ||||||
| reading room,supermarket. Etc | |||||||
