Help CenterHigh Quality JINKA Cnc Router 3 Heads CNC ROUTER CNC Woodworking Machine
Related Products
-
2015 Eco-friendly Full Automatic Metal Cnc Router Machine WholesaleUS$ 2,000 - 6,000MOQ: 1 Set -
Discounted Price Full Automatic Metal Cnc Router MachineUS$ 2,000 - 6,000MOQ: 1 Set
-
China Competitive Price Wood Cnc Engraving Machine Price for SaleUS$ 2,000 - 6,000MOQ: 1 Set
-
2016 New Arrival Full Automatic Metal Cnc Router MachineUS$ 2,000 - 6,000MOQ: 1 Set
-
Excellent Performance Woodworking Metal Cnc Engraving MachineUS$ 2,000 - 6,000MOQ: 1 Set

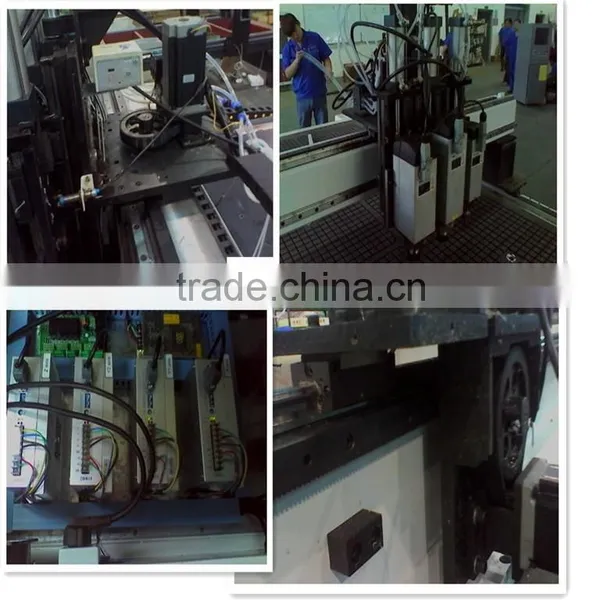

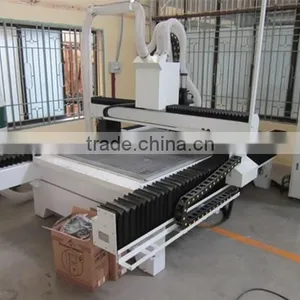

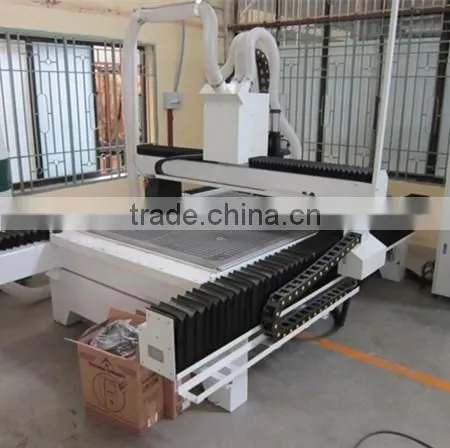

ATC 3 heads engraving machine has the higher precision and efficiency to process complicated pictures, crafts by holding the 3 different engraver tools which can process the cutting, hollowing-out etc. 3 different working procedure by automatic changing the tools. It widely used in solid wood carving, board furniture, antique furniture with relief carving etc.

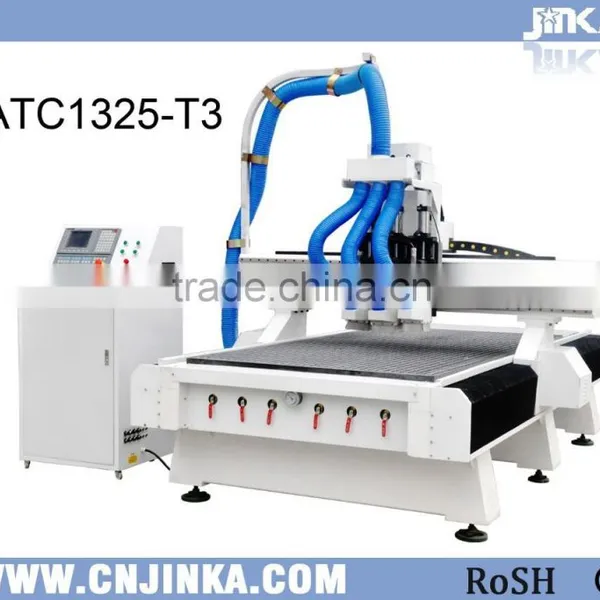

Model |
ATC-1325-T3 | |
| working area | X axis | 1300mm |
| Y axis | 2500mm | |
| Z axis | 160mm | |
| Precision |
X,Y,Z Traveling Positioning Accuracy |
±0.05mm |
|
X,Y,Z repositioning Positioning Accuracy |
±0.02mm | |
| Structure | Lathe structure | vacuum absorption into 6 areas |
| X,Y & Z axis structure |
X,Y axis gear rack transmission, Z axis rolling ball screw transmission. |
|
| Speed | Max. idle speed | 40000mm/min |
| Max. processing speed | 20000mm/min(X&Y axis), 15000mm/min(Z axis) | |
| Spindle | Power | 6KW/4.5KW/3KW-specified by customer |
| speed | 0-18000rpm/min | |
| Feeding height | 210mm | |
| Driving motor | Yaskawa AC servo motor | |
| working voltage | AC380V/50Hz | |
| File Format | G-code | |
| Contol system | Taiwan Syntec and Nc Studio control system | |
| Power of vacuum | 5.5KW | |
| Power of dust collector | 2.2KW | |
| Software | compatible withType3/Artcam/Castmate/CAXA/UG/Pro-E/Mastercam/Ucancam etc. | |
| Waranty | 1 year | |
| Dimension | 3600*2140*2000mm | |
| Net weight | 2500kg approx. | |
| Gross weight | 2800kg approx. | |
| Application Field: | 1. Wooden door, furniture and decoration; | |
| 2. Wooden crafts making; | ||
|
3. Electronic:electrocircuit, insulation materials, LED screen, family appliance shell and model carving; | ||
| 4. Musical instrument; | ||
|
5. EVA processing: carving and hollowing of VA material packing tools, medical apparatus, electronic products, carving and hollowing-out of glassware lining,etc. | ||
A. We will supply the machine with training video and user' s manual in English for operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone /MSN /ICQ/Skype and so on, when you meet some problems of installation, using or adjusting.
B. You can come to our factory for training. We will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments, all sorts of tools and testing facility. Training Time: 3~5 days
C. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch. It' s better to arrange a translator for both of our engineers during the training period. Training Time: 5~7 days
