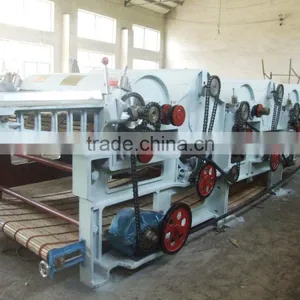

GM 250 six rollers cotton waste recycling machine
This machine uses high speed centrifugal force when operating to get red of impurities in cotton and at the same time loosen the lint cotton it can clean the dust and is mainly to process all kinds of lint cotton cloth clips cloth corner flock waste yarn and flax etc
This machine is made and designed in line on the basis of the characteristics and advanced experience of our local province and other provinces After identification the machine has reached the advantages of good quality high output low consumption and is provided with compact model operation dust removing and high safety
Main technical parameters
1.output 100-120kg/h
2.Capacity of removing impurities 6%-10%
3.Diameter of taker in 250mm
4.Rotation speed of taker in
I st roller 1900rpm/min 2ndroller 2100rpm.min
3rd roller 2100rpm/min 4th to 6throller 2100rpm/min
tton feeding roller
Diameter of the front one 40mm 5.1rpm/min
Diameter of the back one 57mm 13.4rpm/min
6.diameter of dust cage 500mm
Mesh 18*4*3(48-52/h)
ure cotton roll 140mm*985mm(diameter *length)
8.Rotation speed of fan 2900rpm/min
9.Chain :t =119.5
10.Motor equipped :
7.5kw -5.5kw-5.5kw-5.5kw-4kw-4kw one pc each
11.model of taker in :1.09*75*6 teeth
12.Bearing of taker in 111308 dust cage double chain wheel 205
13.Overall demensions
Length :7540mm width :1500mm height:1150mm
AS per customer requirement or our standard seaway package
EXW, FOB and CFR are all acceptable and payment will be 50 % as advance payment by T/T and the rest will be before shipment .
Usually this machine will be tested in our factory and it can be packed. When the customer received the machine, they can place the machine at site and use it immediately . NO extra installation is required. it can help save installation cost for the customer.
1. How can we contact u ?
you can contact by the following ways:
mobile:008613561616870 ( whatsapp)
Skype:candyyang85
2. How to reach your factory?
We are near Jinan and Qingdao airport , pls contact us for picking up and you can also reach by express train.
