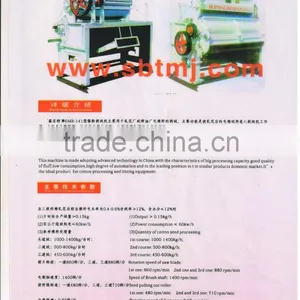

saw linter for separating the cotton seed and the short fiber

saw linter for separating the cotton seed and the short fiber

Shengbaote brand 6MR-141  sawtooth linter is mainlty used in cotton gining factories and oil -pressing mill for delinting of cotton seed and let the cotton seed get into the working box of the linter then at the barrier of ribbing it is break by the revolving saw blades so that cotton seed get separate from fluff

This machine is made adopting advanced technology in china  with the characteristics of big processing capacity good quality of fluff low consumption high degree of automation and in the leading position in t in similar products domestic market it s the ideal product for cotton processing and linting equipment

Main technical parameters

1.output ≥0.15kg/h

2.Power consumption≤60kw/h

3.Quantity of cotton seed processing

I st course  1000-1400kg/h

2^nd course  500-800kg/h

3^rd course 450-600kg/h

rotation speed of saw blade

i st one  860 rpm /min

2^nd one and 3^rd one  880rpm/min

speed of brush shaft 1400rpm/min

seed pulling out roller

i st one  480 rpm/min

2^nd and 3^rd  one  710rpm/min

rotation speed of dust cage  0.53rpm/min

power saw shaft  11kw   brush  5.5kw

overall dimensions  2485*1300*1600mm

weight  2000kg
