Specifications
1).Capacity: 1m3/min-100m3/m2).Pressure: 1.0/3.0Mpa
3).Power supply: 220V/1P/50Hz or 380V/3P/50Hz
4).OEM Service
Specifications:
1) Model: TCLG
2) Capacity: 1-50cbm
3) Operating pressure: 1.0, 1.5, 3.0, 5.0, 6.0MPa
4) Air inlet temperature: ≤80°C
5) Coolant: R22
6) Power supply: 220V/50Hz/1PH (60Hz)
7) Air outlet quality:
a) Dew point: -23°C
b) Dust: 0.01um
c) Oil content: ≤0.01ppm

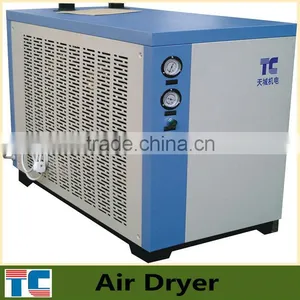

TCLG series high-efficiency freezer dryer is used to freeze-dehumidify compressed
air and filtered again. This equipment had applied for the national patent.
At first it utilizes the preposition cold device to pre-cool the compressed air
which enters the dryer, strains most liquid water, oil fog and dust through the
preposition filter, then utilizes the totally closed compressing type refrigeration
system and cool the compressed air which enters the dryer by force. It makes
a large number of steams containing among the condensate and liquid water. Finally,
trailing and accurate filter strains the oil fog, dust and liquid completely
under cool temperature. It has compact structure, convenient installation and
transport, high efficiency of purification and other advantages.
The high-efficiency freezer dryer is mainly applied for blow molding and other fields
need high pressure of compressed air.
Packing: Standard packing
