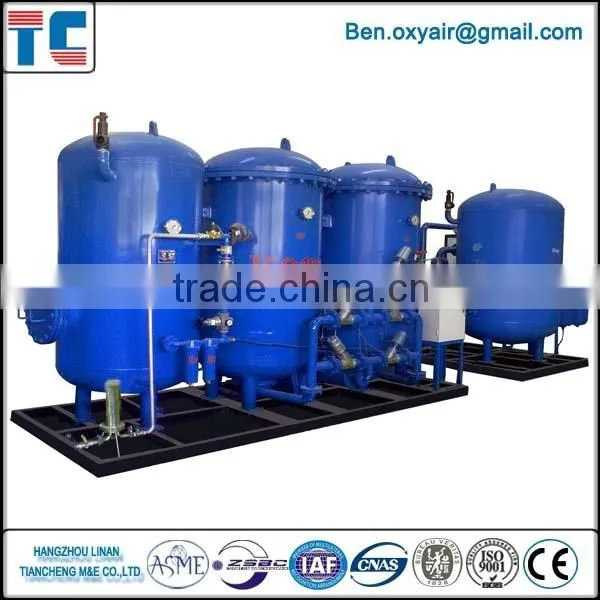

Hospital Grade China Oxygen Plant Delivery to Africa

Technical Index -  Oxygen Plant Manufacturer

Compressed Air Pressure

0.7-1.3MPa(7Bar-13Bar)

Oxygen Capacity

3 - 200Nm³/h

Oxygen Purity

93%+-2%

Outlet Pressure

0.30MPa(Oxygen Generator)/15MPa(Filling Manifold)

Dew Point

≤-40℃

Electrical Power

~380V/3P/50Hz or Customized

Specification -  Oxygen Plant Manufacturer

Model

Capacity (Nm3/hr)

Air consumption (Nm3/min)

Inlet (mm)

Outlet (mm)

Air  pretreatment

TCO - 6

6

1.9

25

15

TC-2

TCO - 10

10

2.8

32

15

TC-3

TCO - 20

20

5.6

40

20

TC-6

TCO - 30

30

8.4

50

20

TC-10

TCO - 50

50

14

65

25

TC-15

TCO - 80

80

22

65

32

TC-25

TCO - 100

100

28

80

32

TC-30

TCO - 150

150

42

100

40

TC-50

TCO - 200

200

56

125

40

TC-60

Product Features

1.  Full Automation

     All systems are designed for un-attended operation and automatic Oxygen demand adjustment.

 2.  Lower Space Requirement

    The design and Instrumentation makes the plant size very compact, assembly on skids, prefabricated and supplied from factory.

3.  Fast Start-up

    Start-up time is about 30 minutes to get desired Oxygen purity. So these units can be switched ON & OFF as per Oxygen demand changes.

4.  High Reliability

    It’s very reliable for continuous and steady operation with constant Oxygen purity. Plant availability time is better than 93% always.

5.  Zeolite Molecular Sieves Life

    Expected Zeolite Molecular Sieves life is more than 10-years i.e. whole life time of Oxygen plant. So no replacement costs.

6.  Low investment and energy consumption

7.  Simple operation and maintenance

Technical Information

Your kind requirment

                           1).O2 Flow Rate

                                   _____Nm3/hr

                           2).O2 Purity

                                    _____%

                           3).O2 Discharge Pressure

                                    _____Bar

                           4).Voltages and Frequency

                                    _____V/P/Hz

                           5).O2 Application
