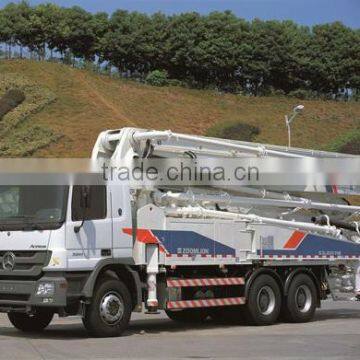

ZLJ5331THB 43X-5Z Truck-Mounted Concrete Pump
- 50 Set / Sets per Month
- SHANGHAI
- T/T
You May Like
Product Details
| Condition | New | Power Type | Diesel | |
| Place of Origin | Hunan, China | Brand Name | LIONKIN-ZOOMLION | |
| Model Number | ZLJ5331THB 43X-5Z | Power(W) | 300kw | |
| Weight | 32700kg | Dimension(L*W*H) | 11800x2500x4000 | |
| Certification | EUROIII |
Product Description
Specifications
We can supply 22m ,37m ,40m ,43m ,49m ,52m Truck-mounted concrete pump1. Main technology parameter
Model |
| ZLJ5331THB 43X-5Z | |
Pumping system | Max. Theor. output | m3/h | 120/70 |
Theor. concrete output Pressure | MPa | 11/7 | |
Rated working pressure | MPa | 35 | |
Pumping frequency |
| 22 | |
Hopper capacity | L | 550 | |
Filling height | mm | 1540 | |
Hydraulic system type |
| Close loop | |
Distribution valve |
| S valve | |
Oil cylinder dia.×stroke | mm | φ130×2100 | |
Concrete cylinder dia.×stroke | mm | φ230×2100 | |
Hydraulic oil cooling |
| Air cooling | |
Recommended concrete slump |
| 12~23 | |
Max. aggregate dimension | mm | 40 | |
Placing boom | Structure type |
| 43X-5Z |
Placing depth | m | 43 | |
Horizontal distance | m | 39 | |
Placing depth | m | 29.8 | |
Slewing angle |
| ±270° | |
Boom number |
| 5 | |
The length of boom section |
| 8790/7320/7370/7745/7775 | |
Sections folding angle |
| 90°/180°/242°/180°/250° | |
Pipe diameter | mm | 125 | |
End hose length | mm | 3000 | |
Min. height of opening placing boom | mm | 8500 | |
Outriggers span (front×rear×side) | mm | 8540×8490×8530 | |
Chassis and the whole machine | Chassis model |
| Actros3341 6×4 |
Wheelbase | mm | 4500+1350 | |
Engine type |
| OM501LA | |
Engine power | kW/(r/min) | 300/1800 | |
Engine moment | N.m/(r/min) | 2000/1080 | |
Maximum displacement | cc | 11946 | |
Oil tank cubage | L | 400 | |
Tail gas exhaust standard |
| Euro. Ⅲ | |
Total weight | kg | 32700 | |
Overall dimensions | mm | 11800×2500×4000 | |
Others | Lubrication mode |
| Automatic lubrication |
Oil tank volume | L | 780 | |
Control mode |
| Manual+remote control | |
Maximum water pressure | MPa | 7 | |
Water tank volume | L | 400 | |
Pipe cleaning mode |
| Water cleaning/dry cleaning | |
