FDP-15DL Horizontal Directional Drilling Rig (Trenchless)
- 50 Set / Sets per Month
- shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | HUANGHAI | |
| Model Number | FDP-15DL |
Product Description
Specifications
The FDP-15DL is a full hydraulic horizontal directional drilling rig (trenchless). It is self-propelled and integrated with rubb

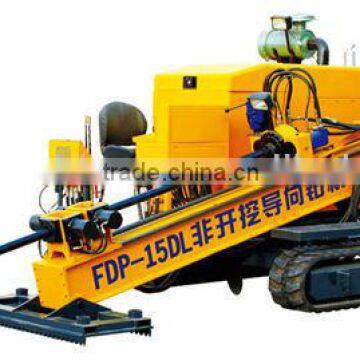

FDP-15DL Horizontal Directional Drilling Rig (Trenchless)
Features and Benefits
The FDP-15DL is a full hydraulic horizontal directional drilling rig (trenchless). It is self-propelled and integrated with rubber crawlers. Featured by high efficiency and low oil temperature, it is advanced in technology and simple in structure. The main hydraulic components, engine and mud pump are all products with well-known brands in China. The rubber crawler equipped on the rig is durable and suitable for moving in urban areas. It can move to standard trailer to make site transit very efficient. The rig has good stability and overall attractive appearance.
FDP-15DL Technical Information
Engine Power | 85KW (2200r/min) | Mud Pump | |
Feed/Pull Capacity | 75/150 KN | Model | BW-150A |
Rated Torque | 4200N.m | Max Capacity | 150L/min |
Main Shaft Rotary Speed | 0-60 0-120r/min | Max Pressure | 8Mpa |
Feed Stroke | 3500mm | Mud System | |
Guide Hole Diameter | Φ80mm | Mud Tank | 1 m³ |
Penetration Angle | 8-20° | Auxiliary Tool System | |
Pressure of Hydraulic System | 20Mpa | Rod Size | Φ60 x 3000mm |
Propelling Speed | 2.5km/h | Guide Bit | 80mm |
Structure | Integrated with rubber crawler and mud pump | Reamer | Φ179 Φ259 Φ313 Φ365 Φ417 |
Overall Dimensions | 5.8m x 2.05m x 2.38m | Distributor | 25T |
Weigh t | 6T | Tracker | Optional |
The length of guide hole and value of reaming vary, depending on strata and construction techniques adopted. | |||
