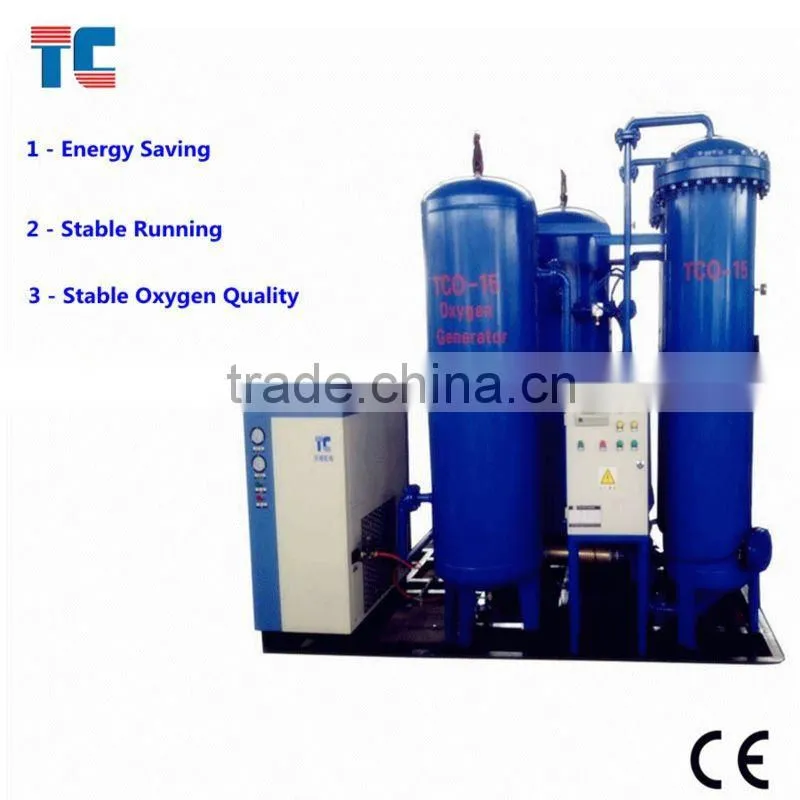

Help CenterGas PSA Oxygen Plant Apply for Gas Filling Station CE Made In China
Related Products
-
PSA Nitrogen Gas Generation System With CE Design as Air Separation UnitUS$ 6,000 - 88,000MOQ: 1 Set -
Nitrogen Generation System in GasolineUS$ 6,000 - 88,000MOQ: 1 Set
-
PSA Nitrogen Gas Generation System With CE Design StandardUS$ 6,000 - 88,000MOQ: 1 Set
-
PSA Nitrogen in GasolineUS$ 6,000 - 88,000MOQ: 1 Set
-
PSA Oxygen Generator for Metallurgical CombustionUS$ 8,000 - 99,999MOQ: 1 Set
Specifications
1)Purity:93~95%2)Capacity:3~200Nm3/h
3)Pressure out:0.1-0.4Mpa adjustable
4)OEM Serives Offerd
5)Gas PSA Oxygen Generator
PSA Oxygen System Specification
| Model | Capacity (Nm3/hr) | Air consumption (Nm3/min) | Inlet (mm) | Outlet (mm) | Air pretreatment |
| TCO - 3 | 3 | 0.95 | 20 | 15 | TC-1 |
| TCO - 6 | 6 | 1.9 | 25 | 15 | TC-2 |
| TCO - 10 | 10 | 2.8 | 32 | 15 | TC-3 |
| TCO - 20 | 20 | 5.6 | 40 | 20 | TC-6 |
| TCO - 30 | 30 | 8.4 | 50 | 20 | TC-10 |
| TCO - 50 | 50 | 14 | 65 | 25 | TC-15 |
| TCO - 80 | 80 | 22 | 65 | 32 | TC-25 |
| TCO - 100 | 100 | 28 | 80 | 32 | TC-30 |
| TCO - 150 | 150 | 42 | 100 | 40 | TC-50 |
| TCO - 200 | 200 | 56 | 125 | 40 | TC-60 |
Advantages&Applications

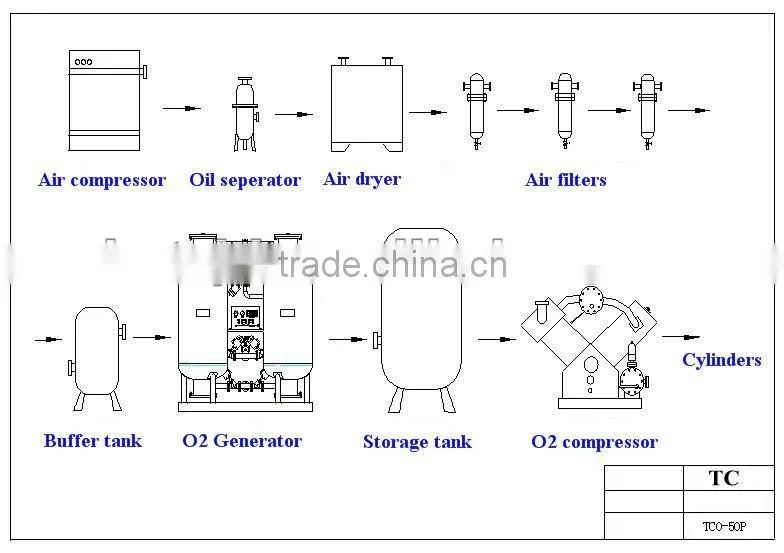

PSA Oxygen System Equipment Flow Chart
The normal purity oxygen system (90%~93%) is consisted of equipment as followings: (according to user different requirements, may has changes)
Compressor |
→ |
Pre-treatments |
→ |
O2 Generator |
→ |
Buffer Tank |
→ |
User |
Technical Features
1).Full Automation
All systems are designed for un-attended operation and automatic Oxygen demand adjustment.
2).Lower Space Requirement
The design and Instrument makes the plant size very compact,assembly on skids,prefabricated from factory.
3).Fast Start-up
Start-up time is only 5 minutes to get desired Oxygen purity.So these units can be switched ON&OFF as per Oxygen demand changes.
4).High Reliabiity
Very reliable for continuous and steady operation with constant Oxygen purity.Plant availability time is better than 99% always.
5).Molecular Sieves life
Expected Molecular sieves life is around 15-years i.e. whole life time of Oxygen plant.So no replacement costs.
6).Adjustable
By altering flow,you can deliver nitrogen with precisely the right purity.
The Best Oxygen Plants Manufacture In China
CE certificate of TC
