Liquid Oxygen Plant without Oxygen Compressor Low Maintanance cost
- 5 Set / Sets per Month
- Ningbo or shanghai
- T/T Credit Card
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | TC |
Model Number: | KDON | Usage: | Oxygen | Production Rate: | 750Nm3/hr |
Voltage: | 380V/415V | Power(W): | 76KW | Weight: | 5500KG |
Dimension(L*W*H): | 3800mm/2100mm/2500mm | Certification: | CE/ISO9001 | Warranty: | 12 months after delivery |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
1.Liquid Oxygen Plant - Air Separation Plant Process:
An Liquid Oxygen Plant air separation plant separates atmospheric air into its primary components, typically nitrogen and oxygen, and sometimes also argon and other rare inert gases.
a.Purifying air by molecular sieve adsorption makes the process simple, start-up and operation easy and safe, switch-over loss small and rectifying condition stable.
b. By using the pre-cooling system to cool the air with normal temp. Thus it makes the molecular sieve adsorbent in good condition.
c.For the use of the automatically controlled filter, the air bearings turbo-expander and the aluminum
plate-fin heat exchanger, the stability, safety and reliability of the whole plant are improved greatly.
d.By using a new construction of the evaporator-condenser to avoid the accumulation of C-H chemical compounds.
2.Liquid Oxygen Plant Standard Scope of Supply:

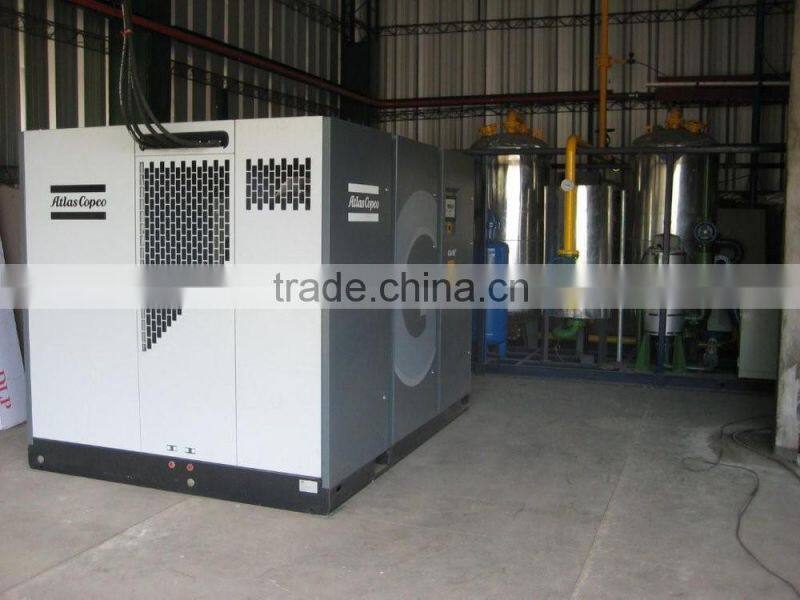

- Air Compressor Screw(ATLAS/Liutech/BJ/etc)
- Air pre-cooler system with Molecular sieve purifier system
- Turbine expander,Rectification column system

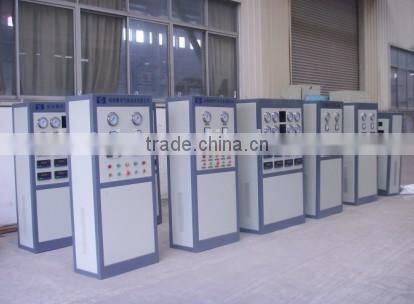

- Electrically controlled system 1 set,

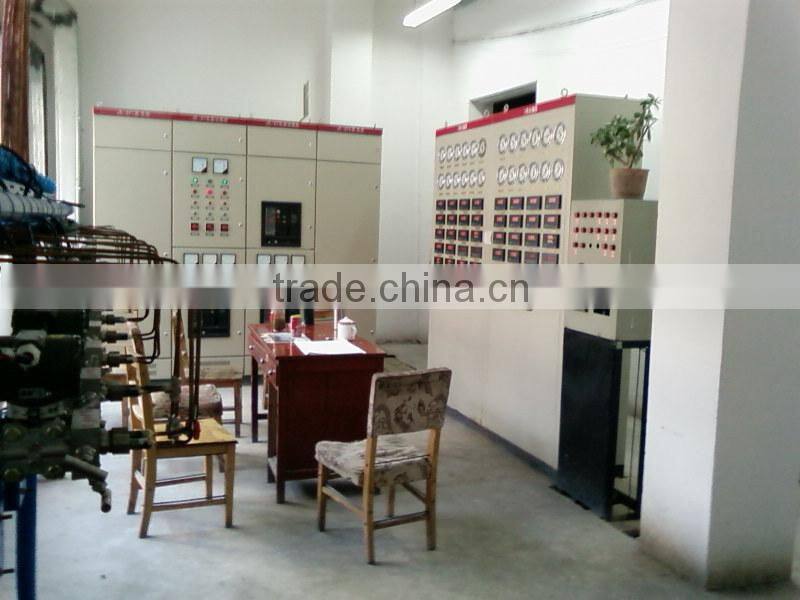

- Central Control Room
3.Liquid Oxygen Plant - Air Separation Plant Model Selection:
Model Selection | |||||
Model | O2 Capacity (Nm3/hr) | O2 cylinder per day | O2 Purity | N2 Capacity (Nm3/hr) | N2 Purity |
KDO(N) - 50 | 50 | 200 | 99.7% | 50 | 99.99% |
KDO(N) - 100 | 100 | 400 | 99.7% | 100 | 99.99% |
KDO(N) - 200 | 200 | 800 | 99.7% | 200 | 99.99% |
KDO(N) - 250 | 250 | 1000 | 99.7% | 250 | 99.99% |
KDO(N) - 300 | 300 | 1200 | 99.7% | 300 | 99.99% |
KDO(N) - 400 | 400 | 1600 | 99.7% | 400 | 99.99% |
KDO(N) - 500 | 500 | 2000 | 99.7% | 500 | 99.99% |
KDO(N) - 600 | 600 | 2400 | 99.7% | 600 | 99.99% |
KDO(N) - 800 | 800 | 3200 | 99.7% | 800 | 99.99% |

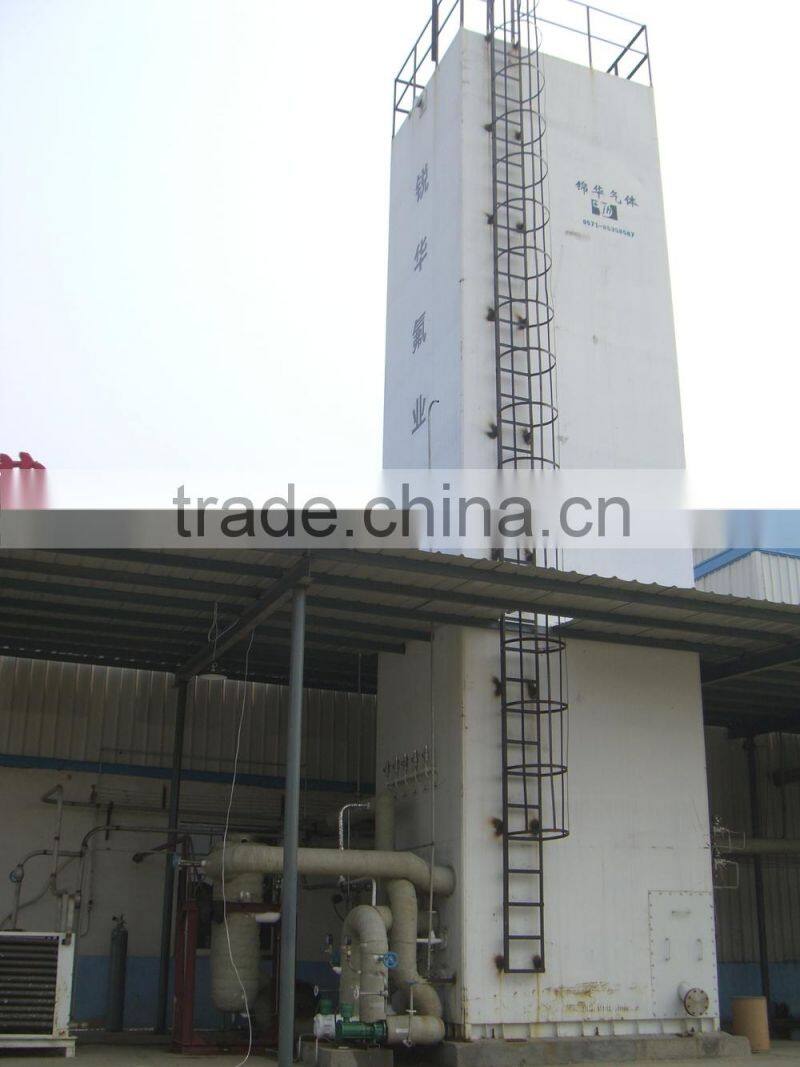

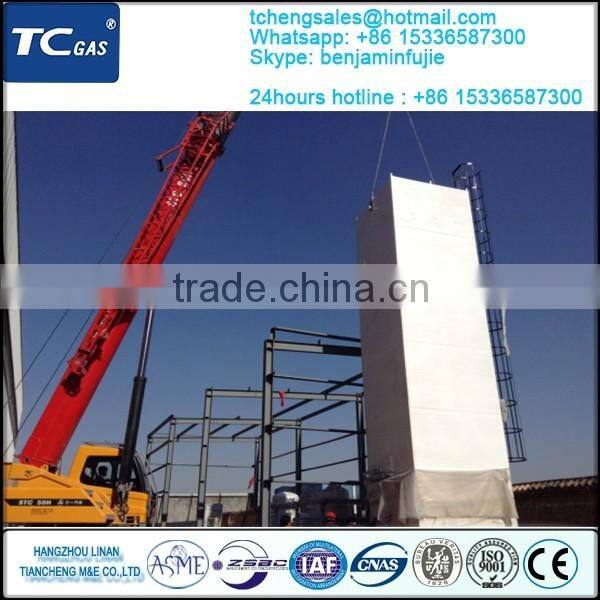

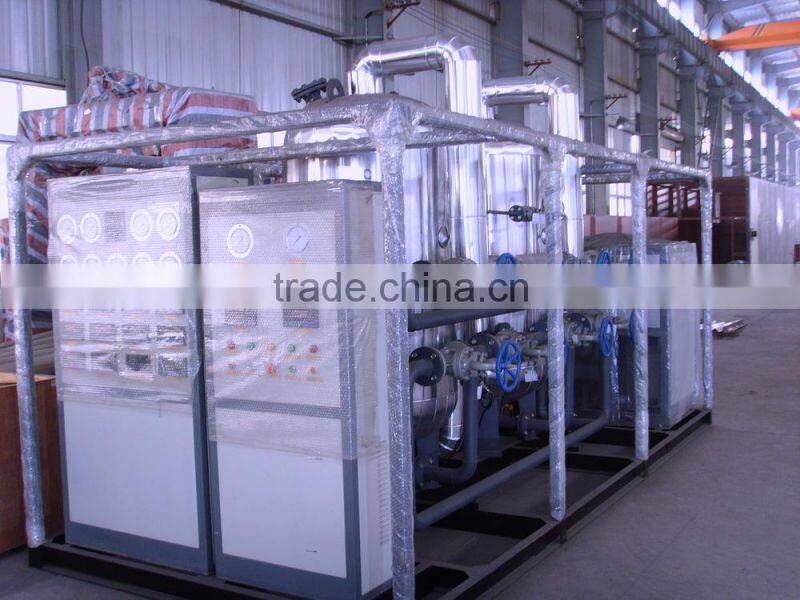

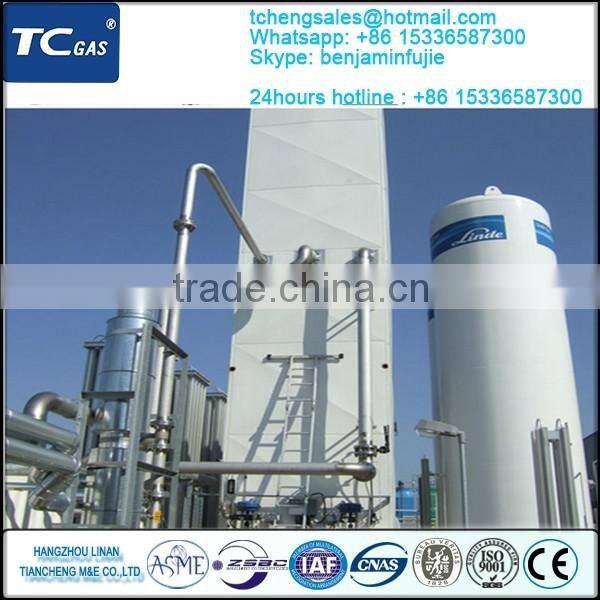

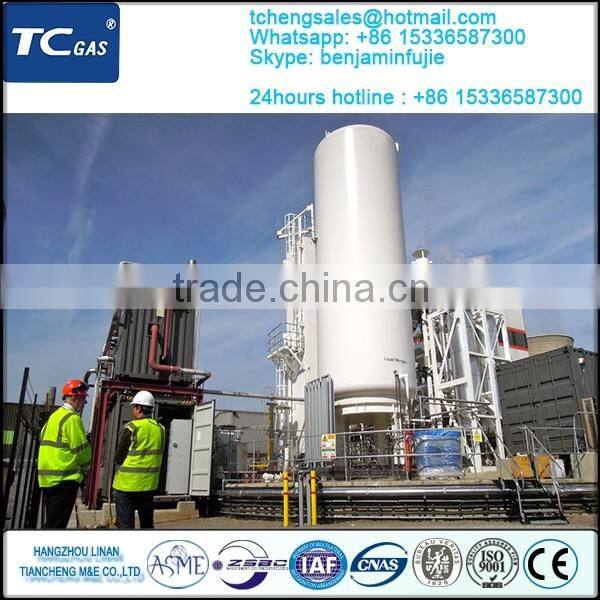

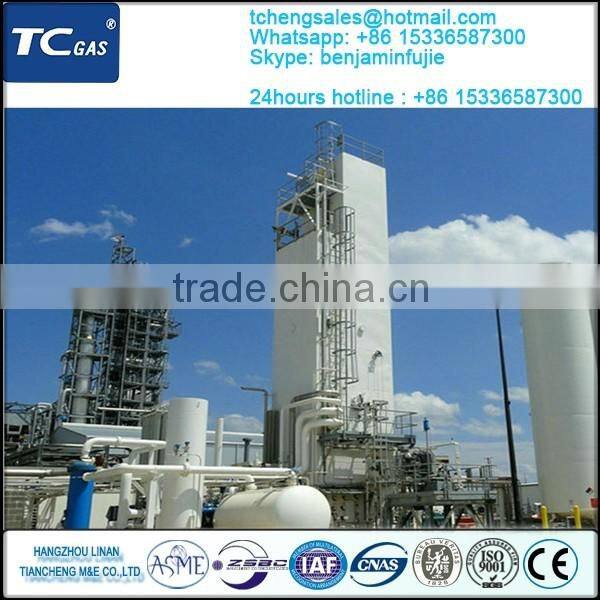

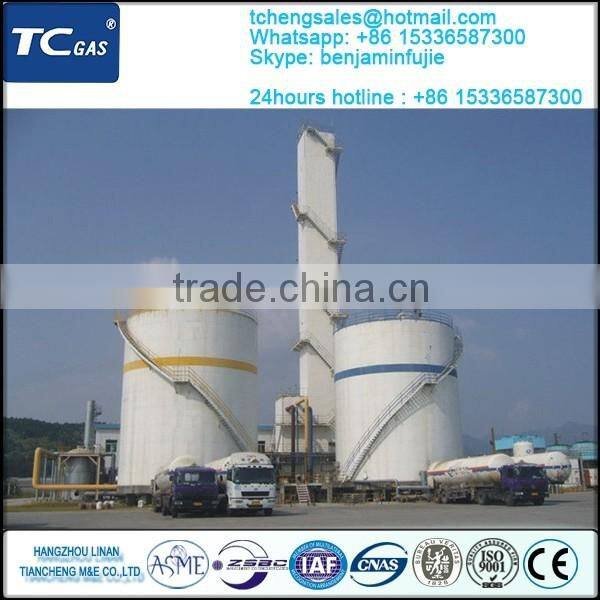

4.Products Display:
WHY CHOOSE US
Top Quality Ensure,24hours response always!!!
Contact Us
- Hangzhou Linan Tiancheng Mechanical And Electrical Co., Ltd.
- Contact nameBenjamin Fu
- Phone86-571-63725798
- AddressInside No. 1088, South Jinxi Road, Linglong Industrial Zone, Linan
