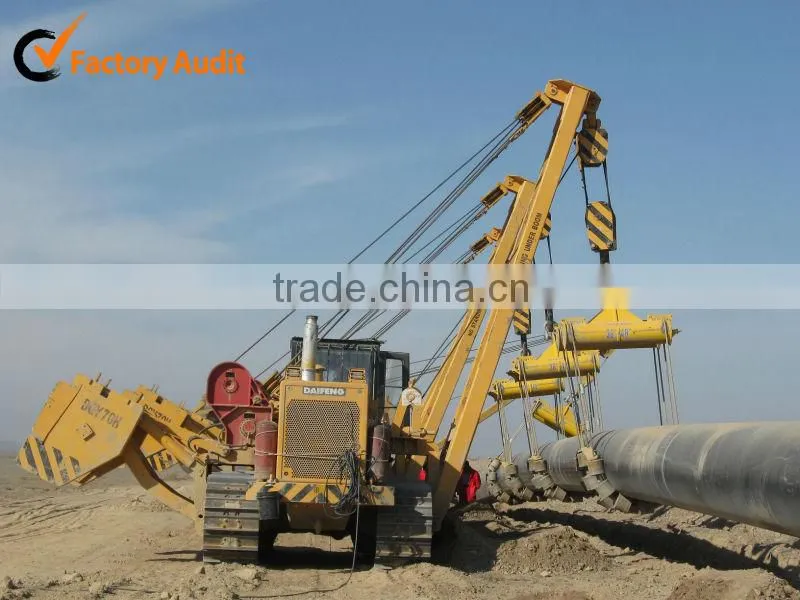

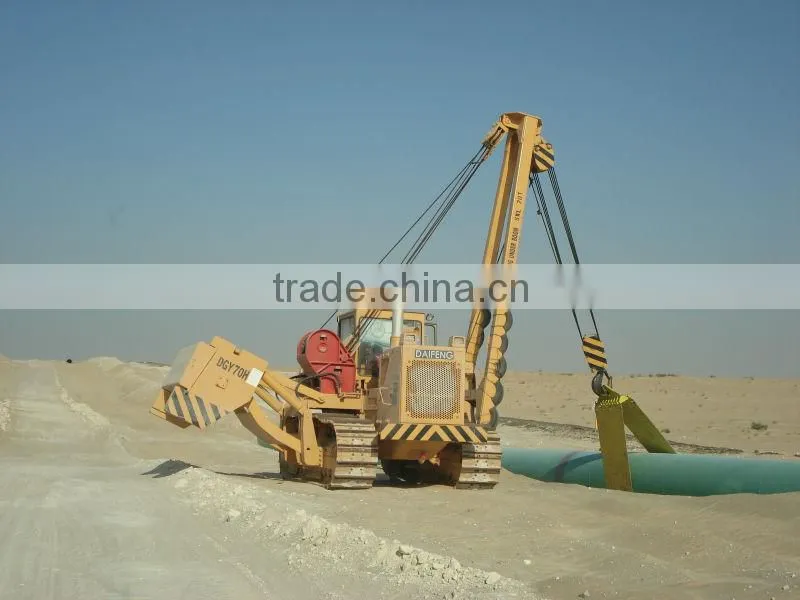

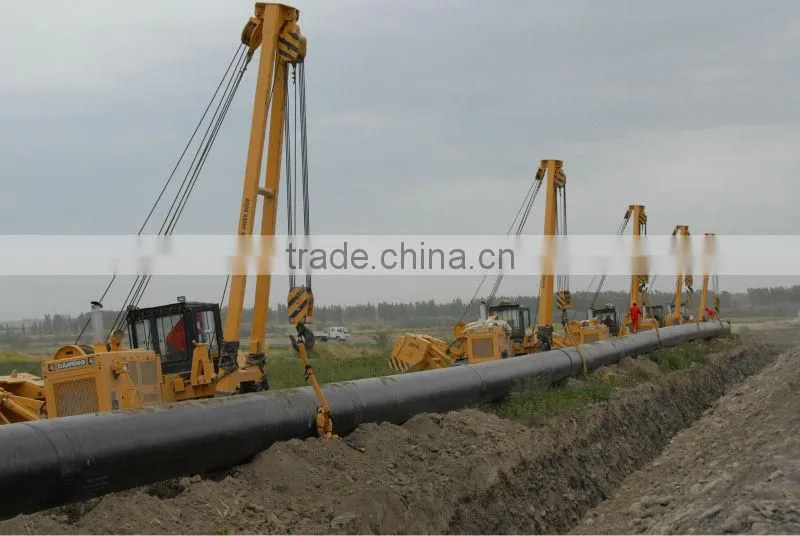

Help CenterDGY70H HYDRAUKIC PIPELAYER
Related Products
Specifications
Hydraulic Control , Max. lifting Capacity:70,000kg , CUMMINS NT855-C360 Engine, Operating Weight:51,000kg
Hydraulic Control , Max. lifting Capacity:70,000kg 154,323 Ib, CUMMINS NT855-C360 Engine, Operating Weight:51,000kg 112,436 Ib
Feature:
(1).Adopt special designed chassis and track roller for Pipelayer
(2).Turbo intercooler CUMMINS engine, which reserves enough power to meet any tough working condition.
(3).The counterweight adopt four-bar linkage design which has excellent stability and more extending distance, thus reduce the whole weight of the machine
(4).Well-equipped safety device such as automatic load moment limiter, hoisting height limit switch, boom buffer limiter device, make operation more safe.
(5).Modular design has facilitated removal /installation of components and shorten machine downtime.
(6).Customized integrated solution for different working environment such as the frigid zone , the tropics ,deserts and marsh area.

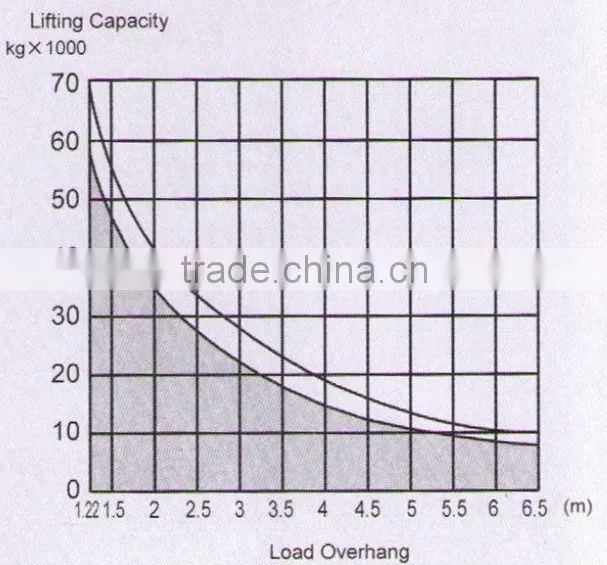

Lifting Performance Curve:

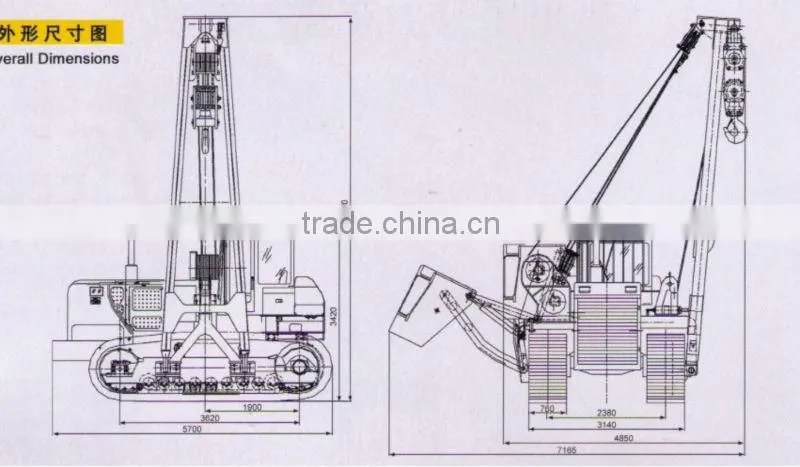

Overall Dimensions:
Main specification:
Lifting capacity at tipping point |
70000kg |
||
Max. lifting moment at min .load overhang |
836KN.m(686KN*1.22m) |
||
Max. lifting moment at max .load overhang |
650KN.m(100KN*5.50m) |
||
Boom length |
7.0m |
||
Max. lifting height of the hook |
5.37m |
||
Hoisting speed(six part line) |
6m/min |
||
Boom elevating time |
6s |
||
Model of chassis |
DGY-70 |
||
Model of diesel engine |
CUMMINS NT855-C360 |
||
Rated power |
239kw/320HP |
||
Model of oil hydraulic pump |
CBY4100/2040 |
||
Rated working pressure of system |
20000kPa/2900psi |
||
Lifting winch |
Hydraulic driven , Planetary transmission, Free-fall function |
||
Diameter of lifting wire rope |
@22mm |
||
Length of lifting wire rope |
60m |
||
Ranging winch |
Hydraulic driven , Planetary transmission |
||
Diameter of ranging wire rope |
@22mm |
||
Length of ranging wire rope |
80m |
||
Temperature of surroundings |
-20°C- +40°C |
||
Overall dimension (L*W*H) |
With boom |
5.7*4.85*7.82m |
|
Without boom |
5.7*4.85*7.82m |
||
Ground pressure |
Without load |
92kPa |
|
Operating weight |
51000kg |
||
