Place of Origin Hunan, China
Brand Name YTO
Model Number DZ-80G

Specifications

The self-carried power generating system can provide a power supply of 80KW/100KVA or 100KW/125KVA

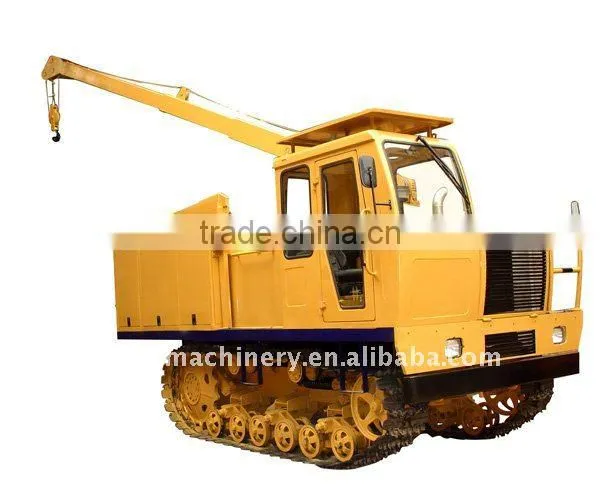

DZ-80G Self-Propelled Power Station

The self-carried power generating system can provide a power supply of 80KW/100KVA or 100KW/125KVA. The vehicle adopts the 1352-JZK chassis, which is specifically used in mobile power stations and is developed by our own. This chassis can be used as a carrier of full automatic welding machines. The vehicle has a good stability when traveling with lifted load. The approach angle and the departure angle are enlarged, the climbing capacity is strong, and the traction force is powerful. The narrow axle base on either side is deployed with 3 sets of trolleys and 6 thrust wheels, whose load-carrying capacity is extremely strong. The tracks ground length is long and therefore the average specific ground pressure is small. The Stanford generator adopts technologies from SIEMENS. The electric welding machines are LIMCEN products.

Complete machine
Model DZ80G
Chassis model 1352-JZK
Overall dimensions (L×W×H) 5100×2370×2800 mm
Total weight of the complete machine 8800 kg
Average specific ground pressure ≤35.3 Kpa
Rated traction force 85 kN
Generator model UCl.274C2
Engine
Model LR6105ZT51
Rated power 100 KW
Rated rotational speed 2300 rpm
Specific fuel consumption ≤228 g/kw.h
Lorry-mounted crane
Height 1500 mm
Arm length 3000/5000 mm
Rated static lifting height 1000kg at 5m kg
