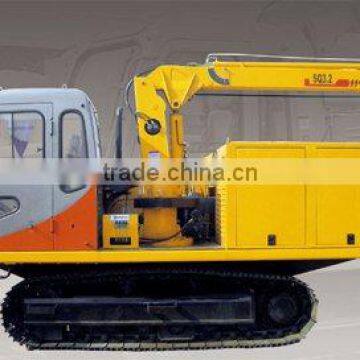

MPS-H128 Self-Propelled Power Station
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
LUODE
Model Number:
MPS-H128
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Henan, China
Brand Name
LUODE
Model Number
MPS-H128
Specifications
The lengthened working mechanism platform can be matched together with four DC400 welding machines, air compressors, drying boxe
MPS-H128 Technical Specification of All Hydraulic
Mobile Powder Station
| Operating Weight | 10400kg | |
| Overall Dimensions(Length×Width×Height) | 6000x2660x3170mm | |
| Electric Welder | Dc400 | |
| Engine | Type | Cummins 6BT5.9-C180 Turbo-charged, Water Cooling, |
| Power | 112 kw | |
| Rotating Speed | 2300 rpm | |
| Type | Stamford (Wuxi) Generator UCI274D(50hz/1500rpm) | |
| Rated Power | 100kw | |
| Rated Capacity | 100kva | |
| Output Powder | 3380V Three phasel 380v | |
| Operating Format | Pressure Flux | 28mpa/180l/Min |
| Traveling | Indoor Hand &Foot Synchronization Joy Stick | |
| Generating | indoor Button Orientation Control | |
| Lifting | Outer Joy Stick | |
| Travel | Travel Speed(Front & reverse) | 2.8-4.6km/H(Two Shift, Continuously variable transmission) |
| Grade ability | 30° | |
| Ground Pressure | 40/33/25/20 Kpa | |
| Chassis | Minimum Ground clearance | 490mm |
| Track Shoe Width | 500mm/600mm | |
| Cantalever Lift | Type | XCMG Sq3.2ciq Hydraulic360° swing, Telescopic Boom |
| Max Lifting capacity | 3200kg | |
| lifting Radius | 21005220mm | |
| Pressure Flux | 20mpa/25l/Min | |
