Specifications

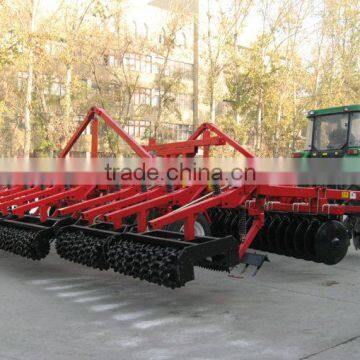

This machine is an advanced soil preparation machine characterized with high efficient and low cost.This machine is an advanced soil preparation machine characterized with high efficient and low cost. The model has the functions of hacking, ground-flattening and suppression and it can be applied to the ploughed land to hack, suppress, loose soil before spring sowing, mixing up soil and fertilizer and stubble-broken operation in light and medium quality.
Characteristics:
This model is half-hanging soil preparation machine and its mating power is wheeled tractor with power over132 Kw. It is a new farming machine that can be folded while transported. Its operational width is 7m and folded width is only 3.4m. The machine can be used in soil preparation in large tract of land and its property of foldability is advantageous over other models that can’t be folded in transportation.
Main technical parameters:
No. | Technical parameters | |
1 | Model | 1ZL-7.0 |
2 | Type | foldable |
3 | Overall dimension (length×width× height) | 6635mm ×3400mm×3150mm |
4 | Mating engine power | 92kw—118kw (wheeled type tractor) |
5 | Way of connecting with tractor | Half-hanging |
6 | Operational width | 7m |
7 | Operational speed | 6km/h~10km/h |
8 | Operational depth | <120mm |
9 | Rate of hacking (≤ 5cm earth lump) | ≥ 80% |
10 | Notch, full-blade disc knife, spike, hacking roller, suppressing wheel | |
11 | Weight of the machine | 5100kg |
