Home > Products > Diesel & Gassoline Generatoers > GF-30 KW~160kw Open-Selft Diesel generator

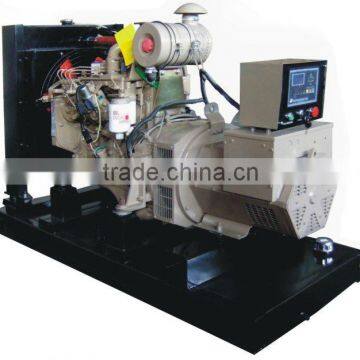

GF-30 KW~160kw Open-Selft Diesel generator
Negotiable
/ Set
1 Set(Min.Order)
- 200 Set / Sets per Month
- T/T
You May Like
Product Details
| Place of Origin: | Fujian, China | Brand Name: | JD | Model Number: | GF-30KW~160kw |
| Output Type: | AC Three Phase | Speed: | 1500rpm | Frequency: | 50Hz |
| Rated Power: | 30kw~160kw | Rated Voltage: | 380V |
Product Description
Specifications
CUMMINS Engine
| Genset model Open type/Silent type | Prim output / Standby output KW | Engine Brand | ENGINE MODEL | Alternator MODEL |
| GF/GFS-30KW | 30/33 | CUMMINS | 4BT3.9-G2/36KW | YHG-30KW |
| GF/GFS-40KW | 40/44 | CUMMINS | 4BTA3.9-G2/50KW | YHG-40KW |
| GF/GFS-68KW | 68/74.8 | CUMMINS | 6BT5.9-G1/92KW | YHG-68KW |
| GF/GFS-80KW | 80/88 | CUMMINS | 6BT5.9-G2/92KW | YHG-80KW |
| GF/GFS-100KW | 100/110 | CUMMINS | 6BTA5.9-G2/110KW | YHG-100KW |
| GF/GFS-112KW | 112/132.2 | CUMMINS | 6BTAA5.9-G2/120KW | YHG-112KW |
| GF/GFS-150KW | 150/165 | CUMMINS | 6CTA8.3-G2/163KW | YHG-150KW |
| GF/GFS-160KW | 160/176 | CUMMINS | 6CTAA8.3-G2/183KW | YHG-160KW |
| Diesel engine Techanical Data | |||||||
| Model | Rated power/ Max power(KW) | Cylinder No. | Bore*Stroke( mm*mm) | Displacement (L) | Compression ration | Min.fuel consumption (g/kw.h) | Governing way |
| 4BT3.9-G2/36KW | 36/39.6 | 4 | 102*120 | 3.9 | 16.5:1 | 213 | Electrical |
| 4BTA3.9-G2/50KW | 50/55 | 4 | 102*120 | 3.9 | 16.5:1 | 213 | Electrical |
| 6BT5.9-G1/92KW | 92/101.2 | 6 | 102*120 | 5.9 | 17.5:1 | 212 | Mechanical |
| 6BT5.9-G2/92KW | 92/101.2 | 6 | 102*120 | 5.9 | 17.5:1 | 212 | Electrical |
| 6BTA5.9-G2/110KW | 110/121 | 6 | 102*120 | 5.9 | 17.5:1 | 211 | Electrical |
| 6BTAA5.9-G2/120KW | 120/132 | 6 | 102*120 | 5.9 | 17.5:1 | 212 | Electrical |
| 6CTA8.3-G2/163KW | 163/180 | 6 | 114*135 | 5.9 | 17.3:1 | 210 | Electrical |
| 6CTAA8.3-G2/183KW | 183/201.3 | 6 | 114*136 | 8.3 | 17.0:1 | 208 | Electrical |
| Genset model Open type/Silent type | |
| GF/GFS-30KW | 1820*760*1240/2200*950*1310 |
| GF/GFS-40KW | 1950*830*1270/2400*950*1360 |
| GF/GFS-68KW | 2150*880*1400/2700*1100*1450 |
| GF/GFS-80KW | 2150*880*1400/2700*1100*1450 |
| GF/GFS-100KW | 2350*950*1360/2700*1100*1450 |
| GF/GFS-112KW | 2350*950*1360/2800*1150*1510 |
| GF/GFS-150KW | 2470*950*1430/2850*1260*1720 |
| GF/GFS-160KW | 2600*950*1450/3100*1260*1750 |
