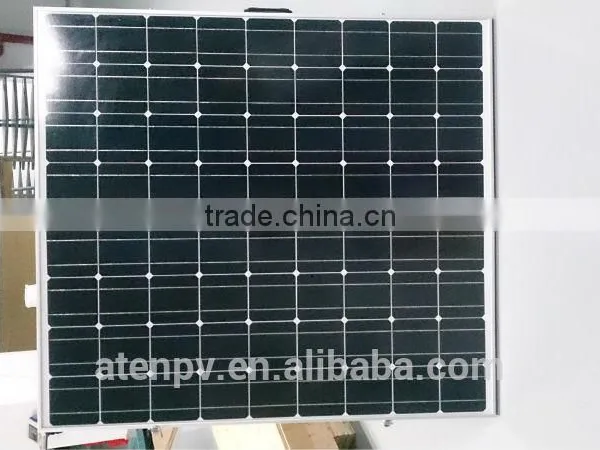

Help Center100w Folding pv Solar Kit for Camping With CE ROHS
Related Products
-
3W Solar Pump Mini Solar Fountain Solar System Small Solar PumpUS$ 10.8 - 12MOQ: 1000 Pieces -
1.5W Solar Pump Mini Solar Fountain Solar System Small Solar PumpUS$ 9.2 - 11MOQ: 1000 Pieces
-
1.4W Solar Pump Mini Solar Fountain Solar System Small Solar PumpUS$ 13 - 14MOQ: 1000 Pieces
-
2.5W Solar Pump Mini Solar Fountain Solar System Small Solar PumpUS$ 17.5 - 19.8MOQ: 500 Pieces
-
1.12W Solar Pump Mini Solar Fountain Solar System Small Solar PumpUS$ 7.2 - 9.5MOQ: 1000 Pieces
Specifications
HIGH EFFICIENCY!!HIGH QUALITY!!!
Electrical Characteristics
Model |
AP-200-MG |
Optimum Operating Voltage (Vmp) |
36.00 V |
Optimum Operating Current (Imp) |
5.5A |
Open - Circuit Voltage (Voc) |
43.2 V |
Short - Circuit Current (Isc) |
5.8A |
Maximum Power at STC (Pmax) |
200 W |
Operating Module Temperature |
-40 °C to +85 °C |
Maximum System Voltage |
1000 V DC (IEC) / 600 V DC (UL) |
|
|
|
|
Mechanical Characteristic
Solar Cell |
Monocrystalline |
No. of Cells |
72 |
folding Dimensions |
57x119.5x7.5cm |
Weight |
1.1kgs |
opening Dimensions |
114x119.5x3.5cm |
Frame |
Anodized aluminium alloy |
Junction Box |
IP67 rated |
Output Cables |
TUV (2Pfg1169:2007), UL 4703, UL 44 |
|
Optional 4.0 mm2,symmetical lengths(-)1000mm and (+)1000mm | |
Connectors |
SOLAR integrated twist locking connectors |
Temperature Characteristics
Temperature Characteristics
Nominal Operating Cell Temperature (NOCT) |
45±2°C |
Temperature Coefficient of Pmax |
-0.44 %/°C |
Temperature Coefficient of Voc |
-0.33 %/°C |
Temperature Coefficient of Isc |
0.055 %/°C |
25-year transferrable power output warranty:
5 years/95% ,12 years/90%, 18 years/85%, 25 years/80%
Based on nominal power
3 years material an
d workmanship warranty
B. 100% A grade solar cell with Positive tolerance power range.
C. High Conversion Efficiency , High transmission rate , low iron tempered Anti-reflecting/coating film 3.2mm glass
D. Anti-aging & high visosity EVA
E. high frame resistant & Double-sided fluorine TPT
F. Anodized aluminum alloy high thickness frame
G. 3 or 6 bypass diodes , 90mm 4m2 cable , MC4 connectors & waterproof junction box
H. Long life, Easy installation, high wind & hail impact resistance
I. Be resistant to atmospheric exposure & effects of delamination
Shenzhen Aten Photovoltaic Technology Co.,Ltd is a
young and rapidly growing company within solar panels , solar modules.
solar street lights ,solar rechargeable lights, inverters ………and integrate

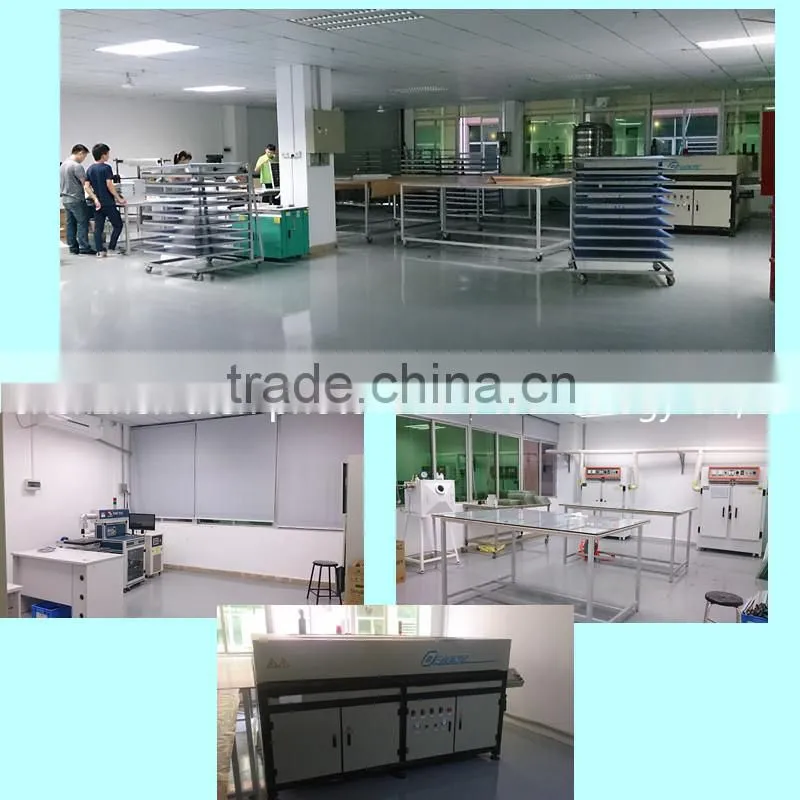

development and manufacturing in house. We have complete and scientific
quality management systems, Our well-equipped facilities and excellent
quality control throughout all stages of production line to ensure that
eliminate quality concerns of our customers.
We are also in the position in according to customers’ demands
to make a design of solar system. As all customers trusted supplier
is what we pursuit all the time! Our hope is to secure the health of
our planet to future generation by transforming our infinite supply
of sunshine into a practical energy for humanity.
