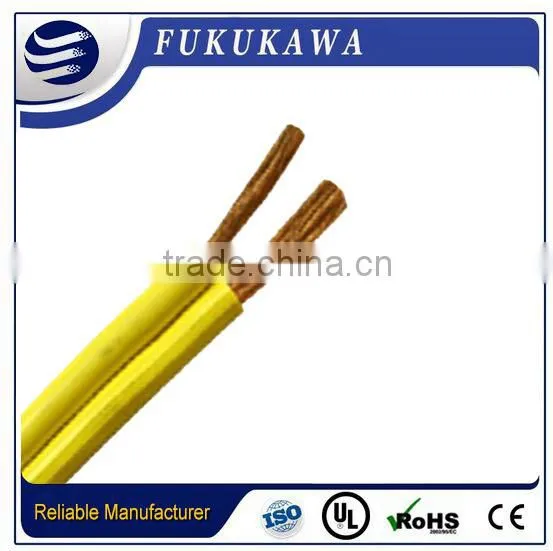

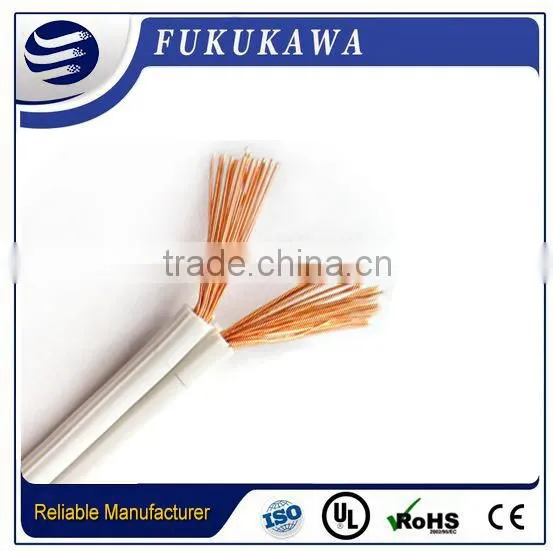

Help CenterSPT WIRE
Related Products

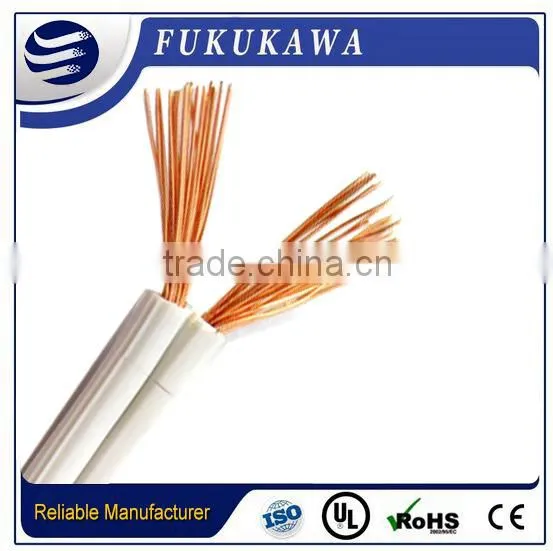

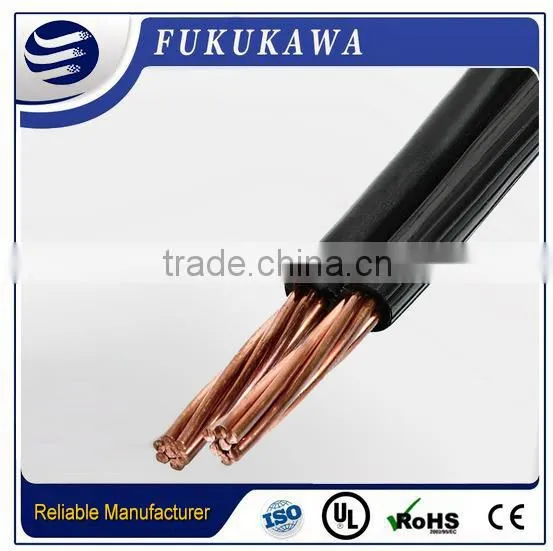

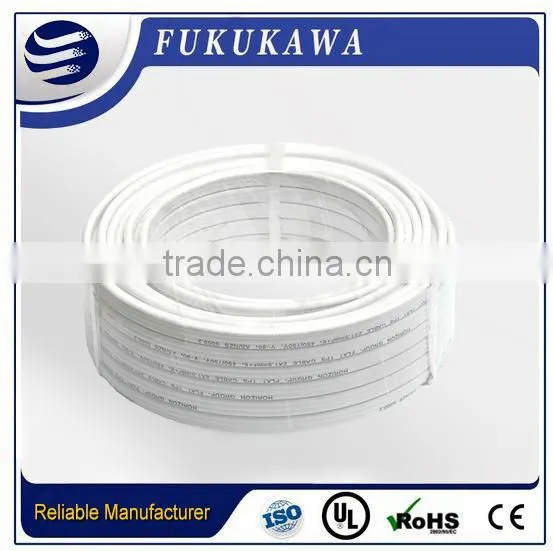

Specifications:
1. Conductor: Stranded Annealed Copper wire or CCA Wire
2. Insulation: PVC sheathed
3. Rating Voltage: 300V 60° C- 105° C
4. PVC Color: White/Grey/Black
5. SIEZ: 10AWGx2C 12AWGx2C; 14AWGx2C; 16AWGx2C; 18AWGX2C; 20AWGx2C.
6. UL standard Approval
TYPE SPT-1: LAMP CORD: LAMP CORD: 60° C- 105° C 300V (UL/CSA)
TYPE SPT-2: LAMP CORD: Same as SPT-1, but heavier construction, 300V
TYPE SPT-3: LAMP CORD: Same as SPT-2, but heavier construction, 300V
Applications:
SPT-1 Lamp Cord is indended for use in household appliances, including clocks, lamps, radios and fans.
Conductors: Annealed, bunch stranded copper per UL 62
Insulation: Polyvinylchoride (PVC) per UL 62
SPT-1 Lamp Cord Features: Resist Oils, Water, Acids, Alkalies, Ozone
SPT-2 Lamp Cord is indended for use in household appliances, including clocks, lamps, radios and fans.
Conductors: Annealed, bunch stranded copper per UL 62
Insulation: Polyvinylchoride (PVC) per UL 62
SPT-2 Lamp Cord Features: Resist Oils, Water, Acids, Alkalies, Ozone
SPT-3 Lamp Cord Features:
Resist Oils, Water, Acids, Alkalies, Ozone
Two Conductor cord for use as internal wiring of air conditional and refrigeration equipment
Three conductor
SPT-3 cord fror power supply to domestic refrigeration equipment and window type air conditioners
Detail Specifications:
Application: The cables are used as connecting line or inner wiring in power installation, household appliances, electric tools, machines etc. | ||||
Type: SPT-1 : Thermoplastic, parallel-jacketed, light duty cord use in damp locations, 300V | ||||
SPT-2 : Same as SPT-1, but heavier construction, 300V | ||||
SPT-3 : Same as SPT-2, but heavier construction, 300V | ||||
Reference Standard: UL 62 approved |
Rated Voltage: 300V |
Rated Temperature: 60°C –105°C |
||
Conductor: Stranded Bare Copper/copper clad Aluminum (CCA) |
Insulation : PVC |
|||
Type |
AWG/No.of cores |
NO./Normal Diameter of strand(mm) |
Normal Thickness of Insulation(mm) |
Over Diameter of Cable(mm) |
SPT-1 |
20 x 2c |
21/0.18 |
0.78 |
2.55 x 5.1 |
18 x 2c |
41/0.16 |
0.76 |
2.7 x 5.4 |
|
18 x 3c |
41/0.16 |
0.76 |
2.7 x 8.0 |
|
SPT-2 |
18 x 2c |
41/0.16 |
1.14 |
3.4 x 6.8 |
16 x 2c |
65/0.16 |
1.14 |
3.7 x 7.4 |
|
18 x 3c |
41/0.16 |
1.14 |
3.5 x 8.6 |
|
16 x 3c |
65/0.16 |
1.14 |
3.8 x 9.6 |
|
SPT-3 |
18 x 2c |
41/0.16 |
1.52 |
4.4 x 8.7 |
16 x 2c |
65/0.16 |
1.52 |
4.8 x 9.5 |
|
14 x 2c |
41/0.254 |
2.03 |
6.0 x 12.0 |
|
12 x 2c |
65/0.254 |
2.41 |
7.4 x14.0 |
|
10 x 2c |
105/0.254 |
2.79 |
9.1x18.2 |
|
18 x 3c |
41/0.16 |
1.52 |
4.4 x 10.7 |
|
16 x 3c |
65/0.16 |
1.52 |
4.8 x 11.8 |
|
14 x 3c |
41/0.254 |
2.03 |
6.0 x 14.5 |
|
12 x 3c |
65/0.254 |
2.41 |
7.4x16.5 |
|
10 x 3c |
105/0.254 |
2.79 |
9.1 x 18.8 |
|
1. Response within 12 hours
2. Strict quality control system.
3. Faster lead time than our competitors.
4. Excellent quality with reasonable price.
5. Strong technical support (technical data, drawing, etc.)
6. Cable solutions to your particular requirements.
7. Free sample is available with economic express fee.
8. 12 months quality guarantee after delivery.
About Us:
We Fukuawa (Fukchuen) Company,RongTai company,JinRongYu Cable Company just the Son Companies OF HONGKONG KIN DING TAI GROUP.(KDT GROUP) Which Establish in 2009.

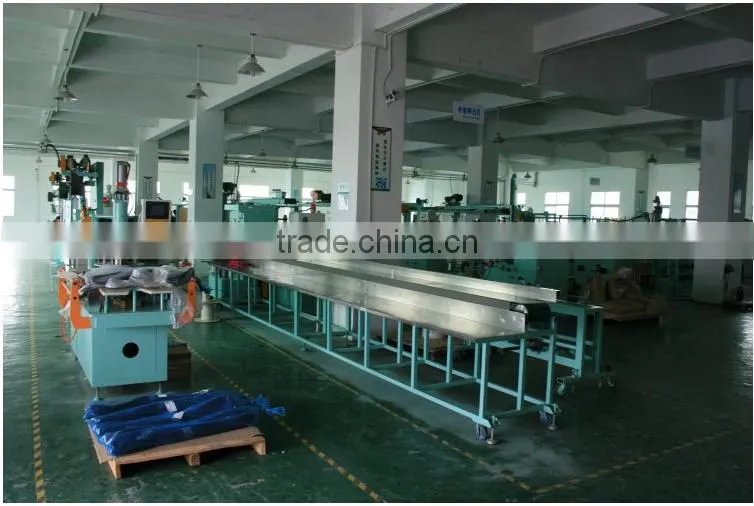

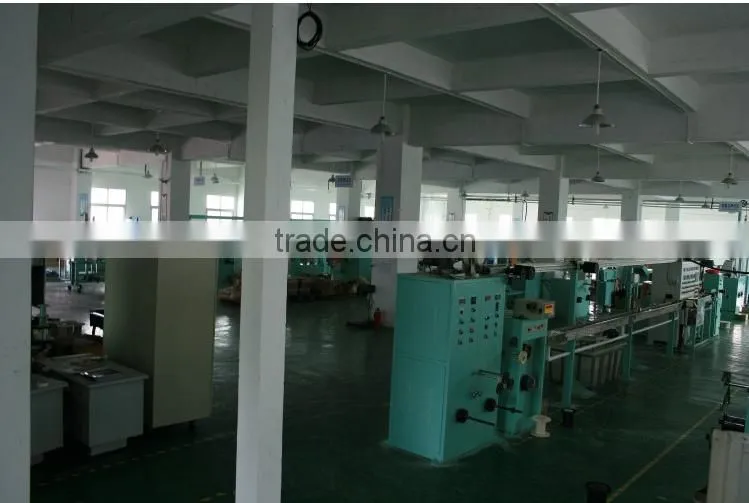

1.We have 3 factories in Mainland, different factory produce different kingds of cables with good price.
Our productsCovering:UL Electric Cables,Thhn/Thwn,Thw/Tw,Spt Teflon cables, fire resistant cables, optical fiber Cables, Medical wires,silicon wires,any kinds of speicial cables.
also could make Multicore Control Cables,Network cables,coaxial cables,communication cables, electric cables, welding cables,Mini HDMI,MINI USB3.0,MINI Displayport Cable etc.
2.Certificate: UL. CE. RoHs. ISO. SGS.etc.
3.R&D: More Than 30.
4.Professional Test Department. (We could pass any test if you need for your goods.)
5.We also the supplier of Huawei,Lenovo,Foxconn etc.
HOPE WE COULD BE A PART OF YOU IN THE COMING FUTURE .
1. What is your Brand?
Fukukawa is specialized for UL cable, XLPE/PE/PVC/Rubber/Teflon/PTFE/PUR any insulated Cables for medium-low voltage electric products.
2. Do you have any experiences?
We export large quantities to North America,South America,European Country,Middle East, Africa, Southeast Asia . Bid tenders of government in some Middle East and Africa Countries.
3. Can I get samples before order?
Yes, we offer you sample for quality check.
4. Can I customize some special product and make my logo on the product?
OEM and ODM are welcomed. We are focusing on customer service.
5. Payments:
Western Union, T/T and L/C are available.
6. What certificates you have?
CE, CB, UL ,SGS, ISO9001.
7. Special support for customer:
Provide USD $50,000 Credit; 2 years guarantee, the replacements free during our guarantee time.
8.Delivery time:
20working days after receive your deposit.
9. For more service and details, welcome to send us message or inquiry.
