Poultry Equipment/poultry Ventilation System/poultry Ventilation Fan

Poultry Equipment/poultry Ventilation System/poultry Ventilation Fan thumbnail-1
Poultry Equipment/poultry Ventilation System/poultry Ventilation Fan photo-1
US$ 280 - 500 MOQ: 10 Sets
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Wall Fan
Blade Material:
Stainless Steel
Contact Supplier Request Quote Chat Now
Fujian Siboly Envirotech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Mounting Wall Fan
Blade Material Stainless Steel
Place of Origin Fujian, China
Brand Name Siboly for poultry ventilation system
Model Number XF-1380 for poultry ventilation system
Voltage 380V/50Hz
Power 1.1KW
Air Volume 44500M3/h
Speed 450
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Fully automatic poultry fan farming equipment for chicken farm



poultry ventilation system

  poultry equipment/poultry ventilation system/poultry ventilation fan





Specification of poultry ventilation system


Specification/Model

XF-1380

XF-1220

XF-1060

XF-900

Air volume(m3/h)

44500

37000

32000

29500

Output(kw)

1.1

0.75

0.55

0.37

V/Hz

380/50

380/50

380/50

380/50

Model Blade diameter(mm)

1270

1110

950

770

Blade rotatin speed(rpm)

450

450

450

450

NoisedBA

≤72

≤70

≤70

≤70

Dimension(mm)

1380×1380×400

1220×1220×400

1060×1060×400

900×900×400

Weight(kg)

85

65

55

43



Inside structure for poultry ventilation system



    1, Frame:  frames are made of galvanized board, thickness 1.0mm, galvanizing layer 180g/square meter.



    2, Blade:  6 pieces, material stainless steel.



    3, Impeller, casting aluminum alloy impeller.



    4, Bearing of impeller :permanently sealed bearing.



    5, Venture: galvanized board, thickness 1.0mm.



    6, Blade tip clearance: 25mm, mirroe face.



    7, Inlet wind protecting net:  spraying paint steel wire, thickness 2.8mm.



    8, Electrical motor:  aluminum alloy frame motor, 380V/220/415V, 1.1KW/0.75KW(1.5HP/1HP), 50HZ/60HZ, 3PH/Single Phase, 4-pole speed, 1410r/m, IP55, class F, efficiency 90%, top/foot mounted,



    9, Motor bearing, :national grade.



    10, Belt: V-belt and A-belt (Made-in-China and Japan brand Mitsuboshi).



    11, Shutters, galvanized board, 0.8 mm thickness while the middle piece thickness 1.0mm. Galvanizing layer ,120g/square meter.



    12, Opening system, nylon material, brown color and black color.



    13, Rivets: aluminum alloy and stainless steel rivets.



    14, Cable: 1 meter long, strong robber wire.



    15, Tensioner: plastic or aluminum.



    16, Warranty : 1 year for the whole machine.

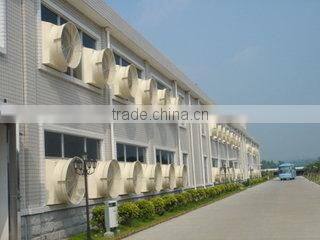

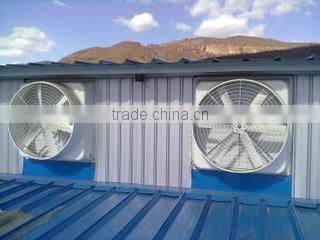

Application of poultry ventilation system

poultry equipment/poultry ventilation system/poultry ventilation fanpoultry equipment/poultry ventilation system/poultry ventilation fanpoultry equipment/poultry ventilation system/poultry ventilation fanpoultry equipment/poultry ventilation system/poultry ventilation fan



Installation diagram  ( poultry ventilation system  )

poultry equipment/poultry ventilation system/poultry ventilation fan

poultry equipment/poultry ventilation system/poultry ventilation fan





VIP customer for poultry ventilation system

If you are interested in our poultry ventilation system  ,Please feel free to contact us for further information.Any time,we will bring the best service to you.
