fresh oxygen system water cooler variable speed cooling exhaust fan with remote control variable speed

Specifications

fresh oxygen system water cooler
-Satisfy demands
-Touch Panel Controller & Luxury Remote Controller
-High efficiency&

fresh oxygen system  water cooler low consumption variable speed cooling exhaust fan with remote control variable speed

enery saving cooler



industrial air humidifier,mist maker,fogger maker

Specification



Type	XZ10-18C-2
Airflow(m3/h)	18000
External Dimension (mm)	1100*1100*920
Outlet Dimension(mm)	670*670
Net Weight(kg)	73
Power Supply(v/hz)	380/50
Power Consumption	1.1kw
Water Capacity(L)	35
Water Consumption	15-20
Effective Area(m2)	100-150
Controler	LED-Touch Controller Luxury Remote Controller
Auto Fan Type	axial
Noise	≤70
Speed	1 Speed
Evaporation Efficiency	85%
Outlet	Side
Casing	Standard



Why choose Siboly Industrial Evaporative Air Cooler?

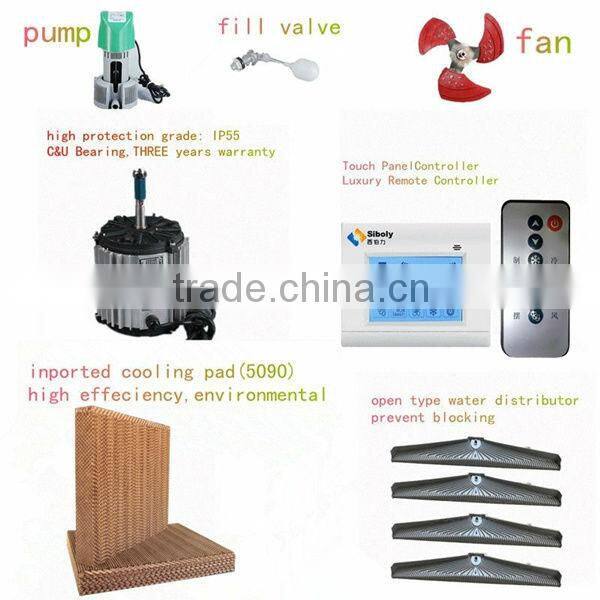

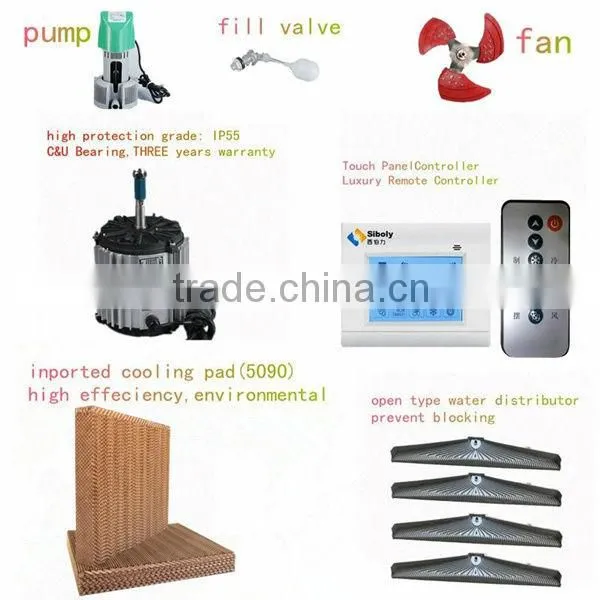

Highest-quality for EACH components.



Shell: Patent design, high moleclar material, corrosion-resistant, anti-deformation.



Stucture: up,down&side outlet, to meet the demand of different spots.

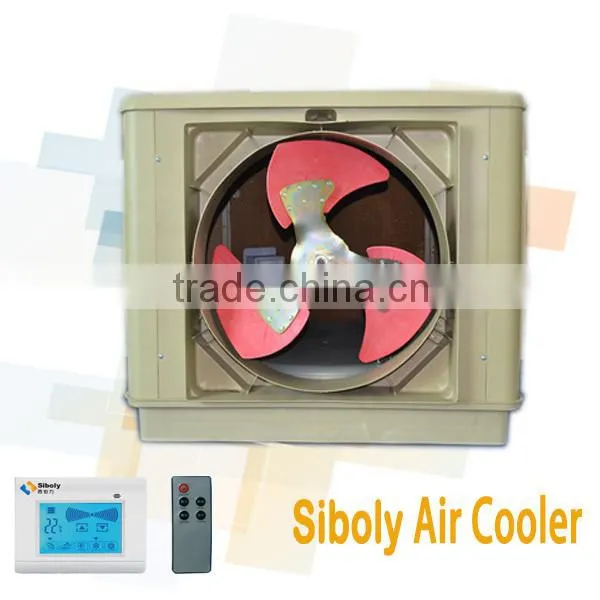

Fan: professional designed axial fan, large airflow, and noise is much lower than centrifugal type.



Motor: aluminium shell adopted, quick heat dissipation, high protection class, IP55.



Water distribution: adopting open-type water distribution, fluent flow, resistance to block.



Wet pad: high performance evaporative filter net, large evaporation capacity and excellent cooling

        Effect.



Control System: adopting the first domestic touch screen controler and equipped the smart three

       phase single speed and variable frequency controler for classic series.

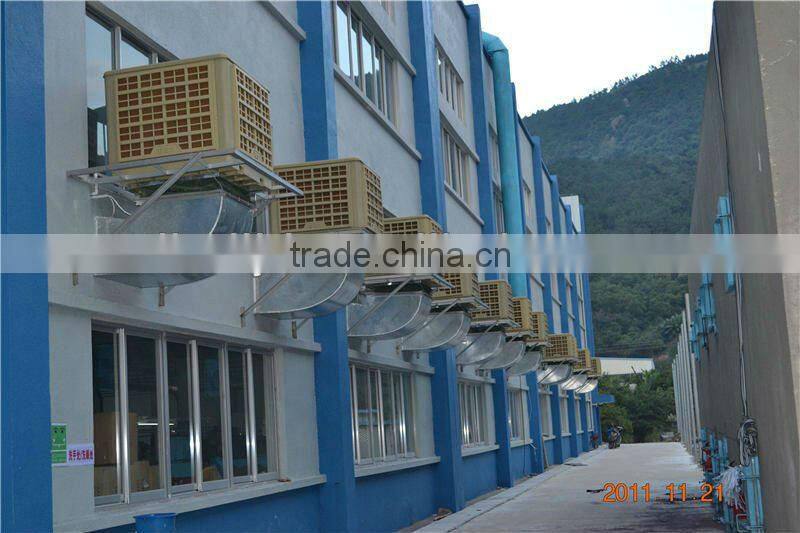

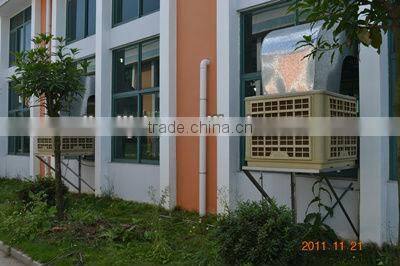

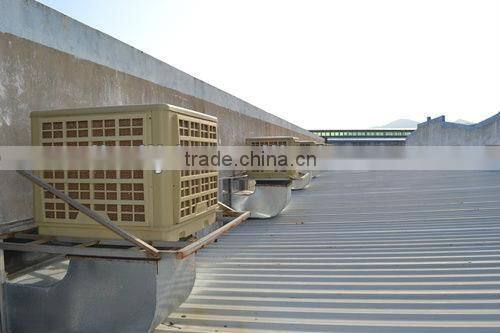

Show Area:



Air cooler are now in widespread use.











The Air Cooler works by endothermic reaction (a reaction that consumes heat), so this evaporative Air Cooler sucks air through a water pad saturated with water. As the air flows through the water pad, some of the water evaporates into the air, consuming the heat that was in the air.







An air stream is then blown out the front of the unit and is considerably cooler than the current room temperature! This is not an air conditioner and therefore uses much less energy. The unit works well in dry climates; not very effective in areas with high humidity as the unit utilizes water to cool.
