Home > Industrial Equipment & Components > Ventilation Equipment > Ventilation Fan > Commercial and University Restaurant Evaporative Air Circulating Fan
Commercial and University Restaurant Evaporative Air Circulating Fan
US$ 360 - 500
MOQ: 10 Sets
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Other, wall/window/roof...
Blade Material:
Plastic
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Air Cooled in Air-conditionUS$ 1 - 720MOQ: 1 Unit -
Industrial Roof Top Ventilation Fan Cooling Equipment for SupermarketUS$ 1 - 500MOQ: 5 Pieces
-
Agricultural Greenhouse Smoke Exhaust Fan With Best Price and Excellent QualityUS$ 200 - 300MOQ: 5 Sets
-
Airflow 18000m3/h Roof Top Ventilation Fan/warehouse Ventilation FansUS$ 300 - 400MOQ: 5 Sets
-
Roof Top Ventilation Fan/warehouse Ventilation Fans/cold Room Ventilation FanUS$ 400 - 500MOQ: 5 Sets
Electric Current Type
AC
Mounting
Other, wall/window/roof...
Blade Material
Plastic
Place of Origin
Fujian, China
Brand Name
Siboly
Model Number
XZ31-18X-3
Voltage
220,230,380
Power
1.1KW
Air Volume
18000m³/h
Certification
CE, CCC, Other, CE,CCC,GB
After-sales Service Provided
Overseas service center available
Specifications
air circulating fan-ECO friendly
-18000m3/h use for 120sqm
-1.1kw/h ,cost 1/3 of normal AC
-Fresh air circulating
Details of XZ31-18X-3
Commercial and university restaurant evaporative air conditioner
| Type | XZ31-18X-3 |
| Airflow(m3/h) | 18000 |
| External Dimension (mm) | 1100*1100*920 |
| Outlet Dimension(mm) | 670*670 |
| Net Weight(kg) | 73 |
| Power Supply(v/hz) | 380/50 |
| Power Consumption | 1.1kw |
| Water Capacity(L) | 35 |
| Water Consumption | 15-20 |
| Effective Area(m2) | 80-120 |
| Controler | Industrial Controller |
| Auto Fan Type | axial |
| Noise | ≤75 |
| Speed | One Speed |
| Evaporation Efficiency | 85% |
| Outlet | down |
| Casing | Standard |
model details :
Universal seriesFunction and feature
1.Shell:Patent desihn,high strengh molecule material,which is UV-proof,anti-corrosion,and anti-deformation
2.Structure: Different air discharge type(including top,down and side) available to meet different installation requiremenrts of various applications.
3.Fan:Using professional designed axial fan,with large airflow,low energy consumption and the lower noise than the centrifugal type in the same airflow
4.Motor:High qulity aluminum motor,with “C&U”double sealing bear,high heat dissipation and protection class,waterproof and moistureproof.
5.Water distribution:Using open type water distributor,which to help flow smoothly and not easy to block.
6.Wet pad:imported green cooling pad(5090),larger evaporation capacity,good cooling efficient and easy to clean
7.Controlling system:Using touch screen wall controller with the luxury remote controller and equipped in the three phase single speed and variable frequency air cooler,this is the first time in china.
1.Shell:Patent desihn,high strengh molecule material,which is UV-proof,anti-corrosion,and anti-deformation
2.Structure: Different air discharge type(including top,down and side) available to meet different installation requiremenrts of various applications.
3.Fan:Using professional designed axial fan,with large airflow,low energy consumption and the lower noise than the centrifugal type in the same airflow
4.Motor:High qulity aluminum motor,with “C&U”double sealing bear,high heat dissipation and protection class,waterproof and moistureproof.
5.Water distribution:Using open type water distributor,which to help flow smoothly and not easy to block.
6.Wet pad:imported green cooling pad(5090),larger evaporation capacity,good cooling efficient and easy to clean
7.Controlling system:Using touch screen wall controller with the luxury remote controller and equipped in the three phase single speed and variable frequency air cooler,this is the first time in china.

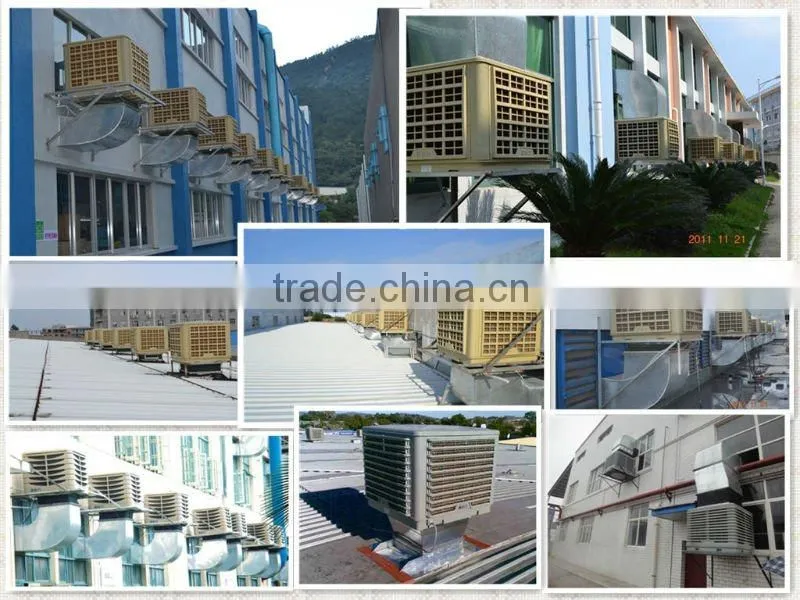

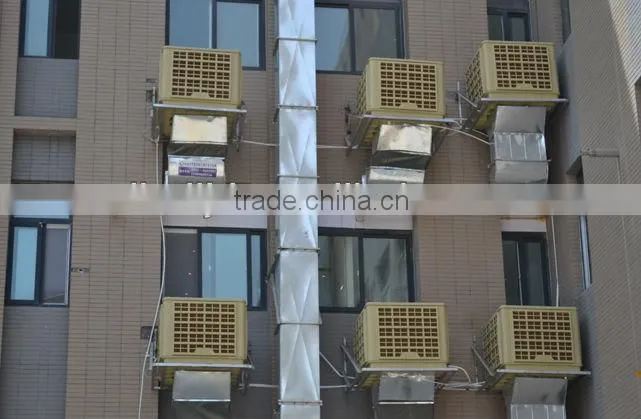

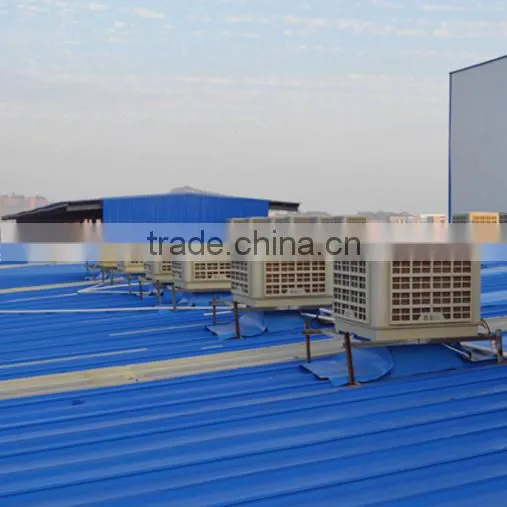

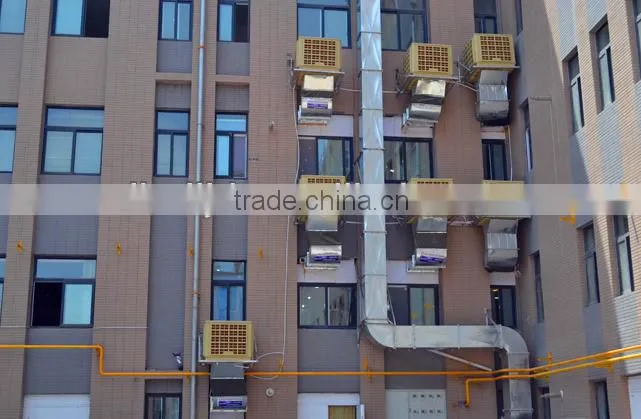

Restaurant Project
Advantage as below
1) Very low invest - Just cost 1/3 of air conditioning -
2) Energy saving -energy saving 80% compare with normal air conditioning.
3) Environmental ,Ventilation, Health - Use natural water cooling .
4) Warantee 2 years for complete unit ,3yeats for motor ,10years guarantee construction .
Widely application
1)Any Industrial (Texitle,Garment,Plastic,Ceramic etc)
2)Commercial (shopping mall,restaurant,parties etc)
3)House,villas, office ....
4)Coporation countries: South Africa ,Algeria ,Philippines ,Thailand,Australia,Brazil ,Romania,Cyprus,Africa,Middle East ,etc ...
If any query ,feel free to contact us .
Best regards,
Aaron
Fujian Siboly Envirotech Co.,Ltd
