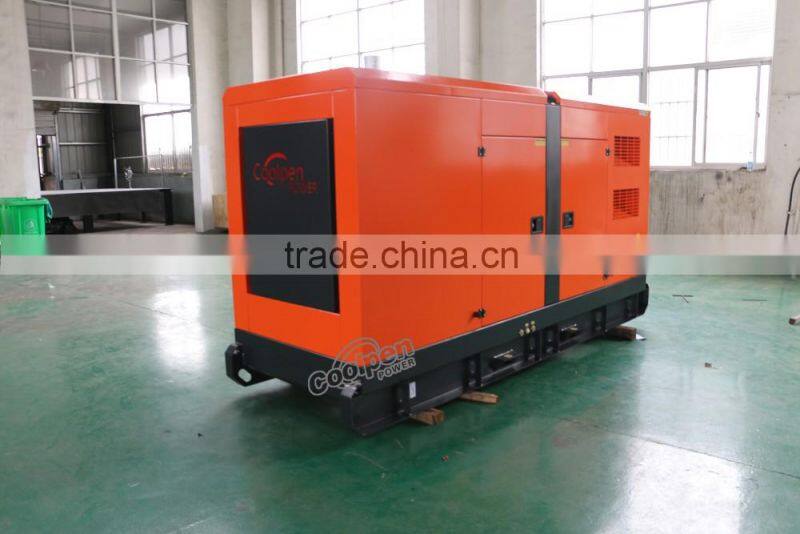

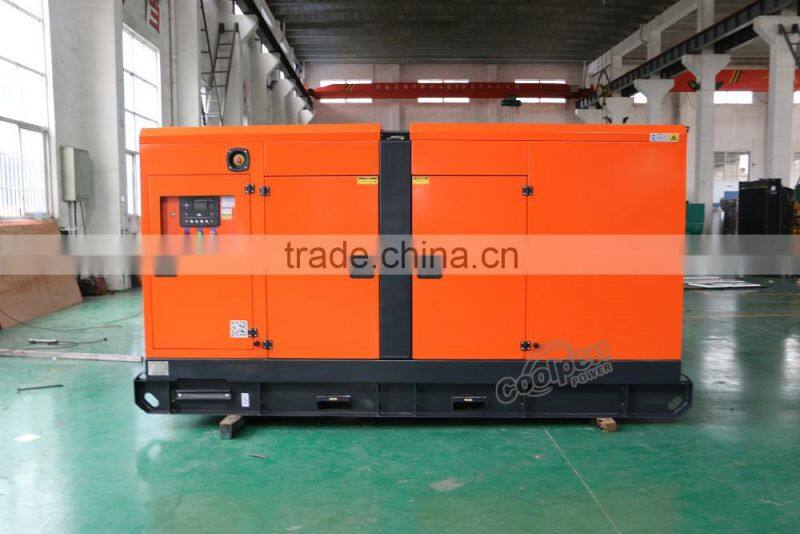

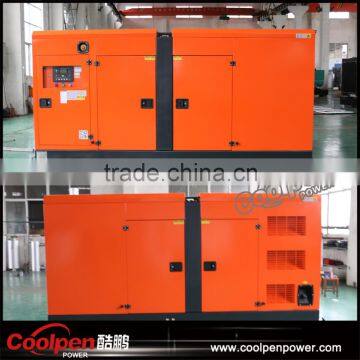

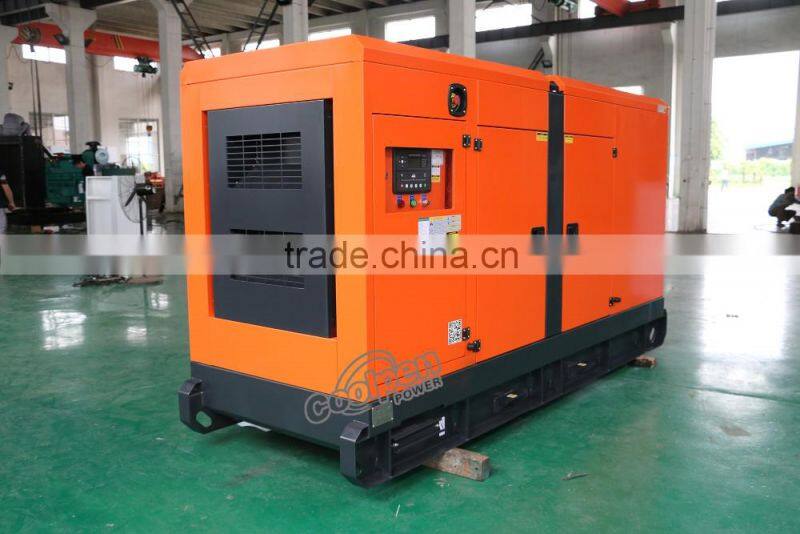

1500rpm generator electricity start 3 phase generator
| 1 | Genset specification | ||
| 1.1 | Genset model | CPK150S | |
| 1.2 | Rated power | KW | 150 |
| 1.3 | Voltage | V | 400/230 |
| 1.4 | Speed | RPM | 1500 |
| 1.5 | Frequency | HZ | 50 |
| 1.6 | Rated power factor | 0.8(lag) | |
| 1.7 | Weight | kg | 1560 |
| Dimension | mm | 3600*1250*2000 | |
| 2 | Engine | ||
| 2.1 | Brand | |
|
| 2.2 | Model | 6CTA8.3-G1 | |
| 2.3 | Engine power | KW | 163 |
| 2.4 | No.of cylinder | 6 | |
| 2.5 | Cooling type | water-cooled | |
| 2.6 | Speed | RPM | 1500 |
| 2.7 | Bore*stroke | mm | 102*120 |
| 2.8 | Displacement | L | 8.3 |
| 2.9 | Starting system | DC24V electrical starting | |
| 2.10 | Fuel consumption | g/kw.h | 208 |
| 2.11 | Fuel type | Diesel | |
| 2.12 | Lube capacity | L | 16.4 |
| 3 | AC alternator | ||
| 3.1 | Brand | MECC ALTE | |
| 3.2 | Model | ECO38-2SN/4 | |
| 3.3 | Type | Brushless permanet magnet | |
| 3.4 | Voltage | V | 400 |
| 3.5 | Insulation degree | H | |
| 3.6 | Protection grade | IP22 | |
| 3.7 | Voltage control | AVR automatic adjustment | |
| 4 | Controller | ||
| 4.1 | Model | DSE7320 | |
| 4.2 | Overall size | mm | 240*181*42 |
| 4.3 | Panel cutout size | mm | 220*160 |
| 4.4 | Maximum panel thickness | mm | 8.0 |
Having more than 15 years of expertise in the design and manufacture of Diesel and Gas Generating sets, Jinagsu Coolpen Power Equipment Co. Ltd.’s management and skilled technical personnel ensure every Coolpen Power Generating set will provide reliable power and peace of mind. Whether used daily or as an emergency our talented Team creates a Power Solution for your special needs.
Each of our generating sets are manufactured at the Company’s modern facilities located in Daqiao Industrial Park, Jiangsu Province, China. We are a professional enterprise integrating the research, development and sale of generating sets to bring you top-class products and services.
Coolpen Power offers wide variety of generating sets for various sectors such as residential, commercial, Industrial, mining and banking. The Power range of our generating sets is mainly from 5 KVA- 3000 KVA (low or high Voltage) of various types; such as Open-type, Sound attenuated enclosures (Silent Canopy), Mobile (Trailer) and Containerized type generating sets that can operate in harshest of environments.
To ensure world-class technology our major components such as Engines and Alternators and steel are all produced or sourced in United States of America, United Kingdom, Europe, Japan and China. Our Partners include; Cummins, Perkins, MTU. Mitsubishi, Volvo, Doosan, Googol, Shangchai, Weichai, Jichai, Stamford, ABB, Meccalte.
Jiangsu Coolpen Power Equipment Co. Ltd is proud of its origins and strives to continue to bring economical, superior and most advanced products manufactured in China, to the world market.
1.What is your warranty period?
Our warranty is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.
2.Does your generator have global warranty?
Yes, most of our products like Cummins, Perkins, Doosan power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
3.Can you accept OEM?
Yes, we can accept OEM.
4.What is your payment terms?
1) T/T 30% in advance, and the balance 70% shall be paid before shipment.
2) L/C at sight.
5.What is your delivery time?
Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, then the delivery time is longer.
