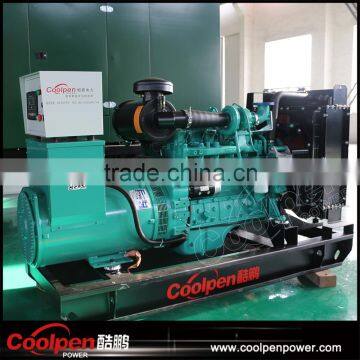

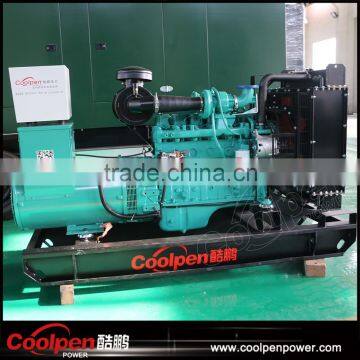

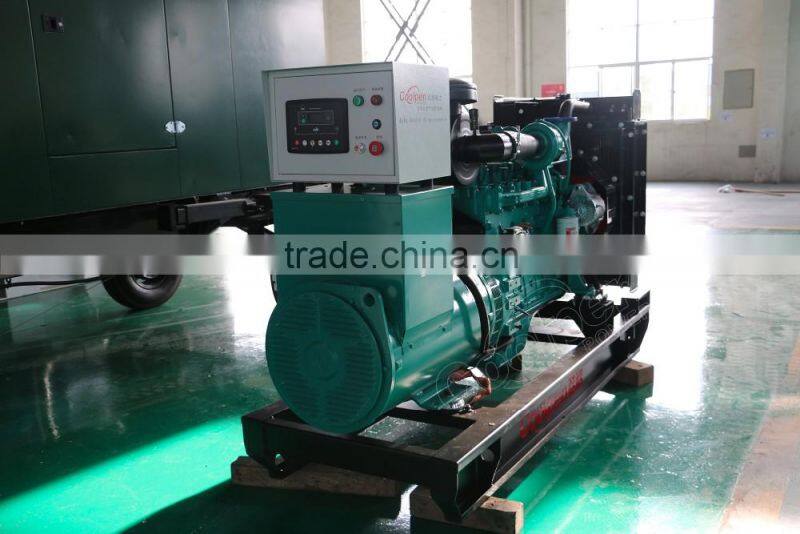

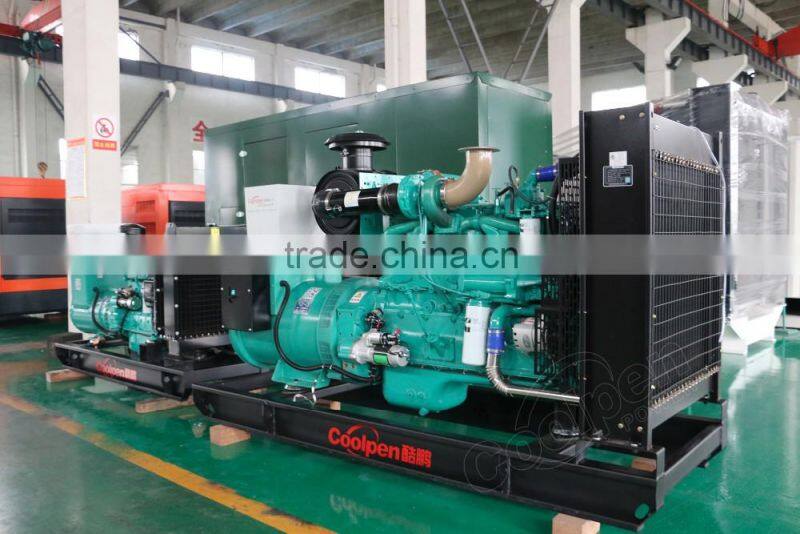

chinese made generator rated power 125kva diesel generator price
| 1. | Technical data | ||
| 1 | Genset specification | ||
| 1.1 | Genset model | CPK100 | |
| 1.2 | Rated power | KW/KVA | 100/125 |
| 1.3 | Standby power | KW | 110 |
| 1.4 | Voltage | V | 400/230,380/220 |
| 1.5 | Speed | RPM | 1500 (1800 optional) |
| 1.6 | Frequency | HZ | 50 (60 optional) |
| 1.7 | Rated power factor | 0.8(lag) | |
| 1.8 | Weight | kg | 1350 |
| Dimension | mm | 2200*860*1460 | |
| 2 | Engine | ||
| 2.1 | Brand | |
|
| 2.2 | Model | 6BTA5.9-G2 | |
| 2.3 | Engine power | KW | 106 |
| 2.4 | No.of cylinder | 6 | |
| 2.5 | Cooling type | water-cooled | |
| 2.6 | Speed | RPM | 1500 |
| 2.7 | Bore*stroke | mm | 102*120 |
| 2.8 | Displacement | L | 5.9 |
| 2.9 | Starting system | DC24V electrical starting | |
| 2.10 | Fuel consumption | g/kw.h | 227 |
| 2.11 | Fuel type | Diesel | |
| 2.12 | Lube capacity | L | 16.4 |
| 3 | AC alternator | ||
| 3.1 | Brand | ABB | |
| 3.2 | Model | AMG 0250BS04 DBSI | |
| 3.3 | Type | Brushless permanet magnet | |
| 3.4 | Voltage | V | 400 |
| 3.5 | The regulating rate of steady voltage | % | ±0.5% |
| 3.6 | The regulating rate of instantaneous voltage | % | ±15% |
| 3.7 | The regulating rate of steady frequency | % | ≤1% |
| 3.8 | The time of steady frequency | ≤3s | |
| 3.9 | Insulation degree | H | |
| 3.10 | Protection grade | IP22 | |
| 3.11 | Voltage control | AVR automatic adjustment | |
| 4 | Controller | ||
| 4.1 | Model | DSE7320 | |
| 4.2 | Overall size | mm | 240*181*42 |
| 4.3 | Panel cutout size | mm | 220*160 |
| 4.4 | Maximum panel thickness | mm | 8.0 |
Through years of active development, Coolpen Company has accumulated rich material foundation and technical force and expanded its reputation and market share. At present our gensets had been used in many countries, such as philippine,, indonesia, Pakistan. In those countries, we had power generation project, Chemical plant project, We have established long-term partnership with this clients.
The product brands include, Doosan, Volvo, MTU,Perkins,Shangchai, Jichai,Yuchai,Weichai,etc.It is able to provide 5KVA to 3000KVA high quality and low energy consumption generating sets of ordinary type, intelligent type ,auto starting type, auto switching type, low noise type,digital frequency conversion type and vehicle mounted mobile type.
“Survival by Quality, Development by Credit , Benefit by Management” is our tenet; perfect after sales service, rich experienced technicians and sound service outlets is the guarantee of our customers; professional technical support, timely service system and the optimal engineering scheme is our promise. The company will accelerate the introduction of new generator equipment suitable fro the power market, accelerate technical innovation, further enhance enterprise competitiveness and continue to expand its domestic and foreign markets.
1.What is your warranty period?
Our warranty is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.
2.Does your generator have global warranty?
Yes, most of our products like Cummins, Perkins, Doosan power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
3.Can you accept OEM?
Yes, we can accept OEM.
4.What is your payment terms?
1) T/T 30% in advance, and the balance 70% shall be paid before shipment.
2) L/C at sight.
5.What is your delivery time?
Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, then the delivery time is longer.
