Home > Electrical & Electronics > Relay & Contactor > Relay > Good Quality HAT901 PCB Relay T90 12V 5PIN

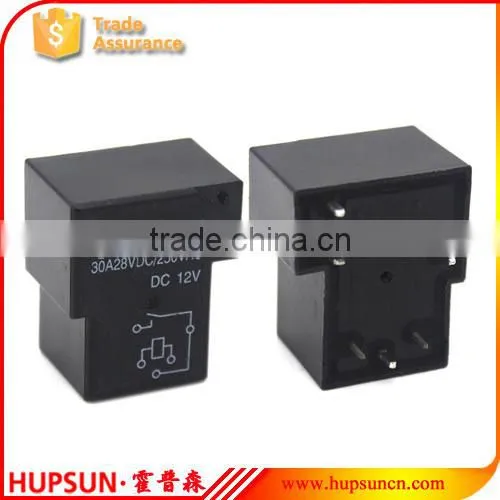

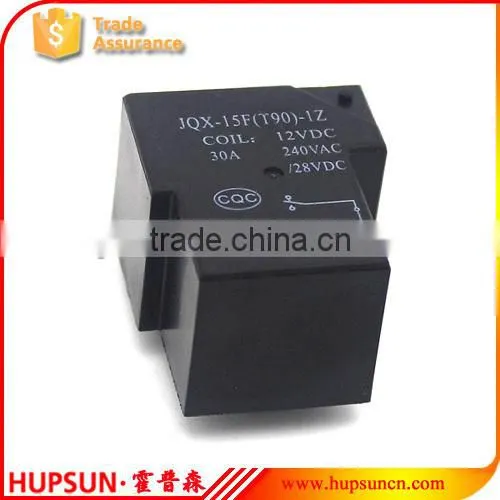

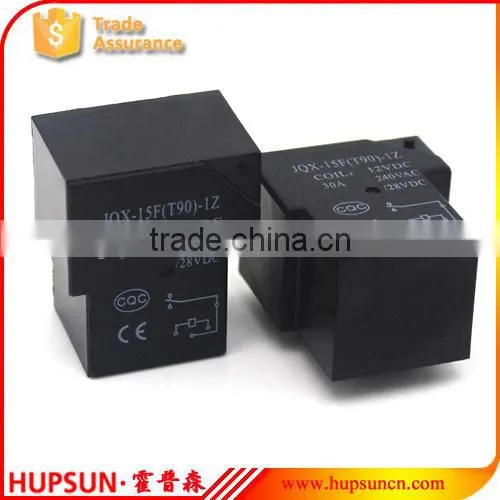

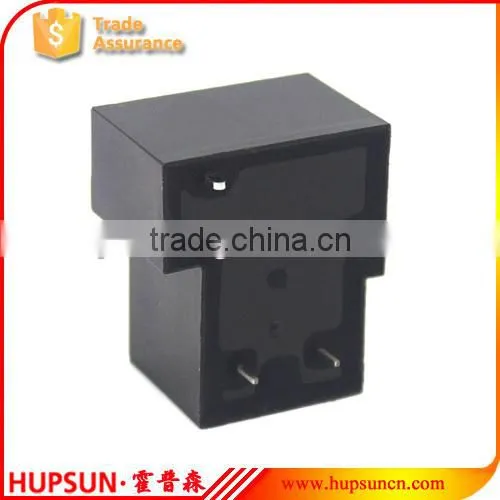

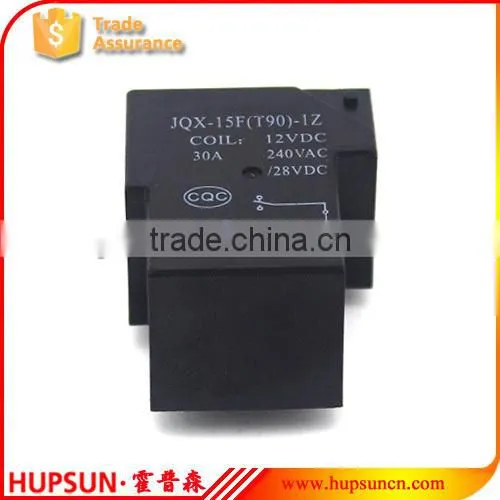

Good Quality HAT901 PCB Relay T90 12V 5PIN
US$ 0.3 - 0.6
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HUPSUN
Model Number:
JQX-15F(T90)
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/ Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HUPSUN High Quality Cheap Price 12V 24V T90 Circuit Board Relay Quality ChoiceUS$ 0.3 - 0.6MOQ: 500 Pieces -
General Purpose Relay NO 30A NC 20A JQX-15F T90 PCB Low Power RelayUS$ 0.3 - 0.6MOQ: 500 Pieces
-
Special Quality SLA-12VDC-SL 1H 1C 40A T90 (JQX-15F) Relay Quality ChoiceUS$ 0.3 - 0.6MOQ: 500 Pieces
-
New Design Overload 2P Over Voltage and Under Voltage Protection RelayUS$ 2.50 - 3.30MOQ: 10 Pieces
-
12V 30A T90 PCB RELAYUS$ 0.37 - 0.43MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
HUPSUN
Model Number
JQX-15F(T90)
Theory
Electromagnetic Relay
Usage
PCB
Size
Other, 20.5*27.5*32.5mm
Protect Feature
Sealed
Contact Load
Low Power
Good quality HAT901 PCB relay T90 12V 5PIN
Features
♦ N.O.30A and N.C. 20A for switching capacity
♦1 Form A, B and C contacts available
♦ Life expectancy to 100 thousand operations
♦ Class B insulation standard
♦ Available with an expoxy seal for automatic wave soldering and immersion cleaning
Good quality HAT901 PCB relay T90 12V 5PIN
General data
| Classification | PCB relay |
| Product Model | JQX-15F(T90) |
| Contact Form | 1H, 1Z |
| Coil Voltage | 5/6/9/12/24/36/48VDC |
| Operate Voltage | ≤3.8/4.5/6.8/9.0/13.5/18.0/27.0/36.0VDC |
| Release Voltage | ≥0.5/0.6/0.9/1.2/1.8/2.4/3.6/4.8VDC |
| Coil Power(W) | 0.93W |
| Contact Rating | 1H 30A; 1Z 20A (250VAC / 28VDC) |
| Contact Resistance | 100mΩ |
| Insulation Resistance | 100mΩ(500VDC) |
| Dielectric Strengh Between Opera Contact | 1500VAC 1min |
| Dielectric Strengh Between Opera Contact | 2000VAC 1min |
| Electrical Life | 1×105 |
| Mechanical Life | 1×107 |
| Ambient Temperature | -25 ~+60°c |
| Outline Dimension(L×W×H) | 32.5×27.5×20.5mm |
| Mounting Form | PCB terminal |
| Weight | ≈26g |
Good quality HAT901 PCB relay T90 12V 5PIN

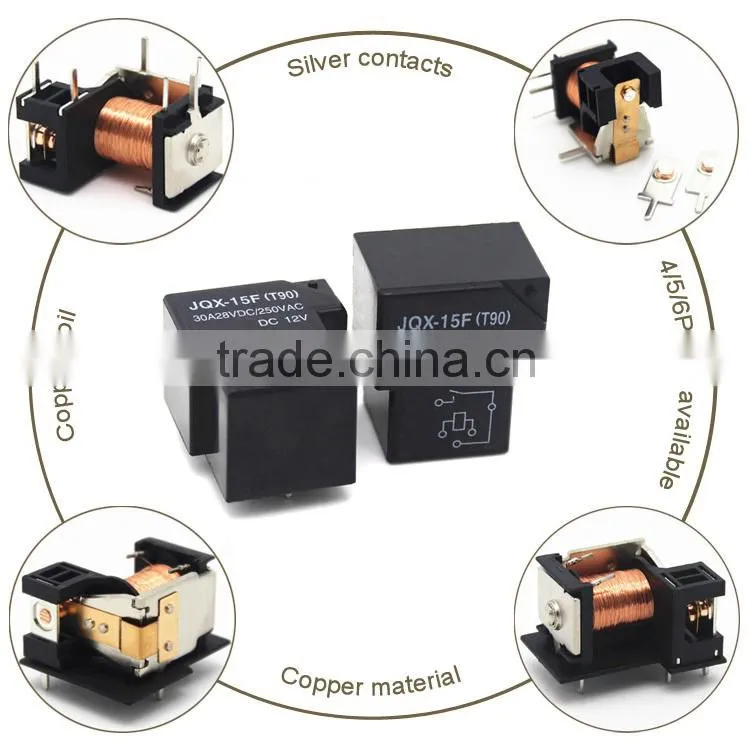

Detailed Images
