Copper terminals waterproof automotive relay, automotive power relay, 12v 40a automotive relay

FOB Price

USD $0.32 - $0.58 / Piece

500 Pieces(Min.Order)

Product Details

Copper terminals waterproof automotive relay, automotive power relay, 12v 40a automotive relay

Feature:

40A switching capability

1Form A & 1 Form C contact arrangement

Coil voltage: 12VDC, 24VDC

Various mounting terminals available

Plastic sealed and dust protected types available

Product Description

Contact data

Contact arrangement	1A , 1C
Contact resistance	100mΩ (1A 24VDC)
Contact material	AgCdO, AgSnO
Contact rating(Res.load)	40A 14VDC NO 40A 14VDC/NC 30A 14VDC
Max. switching power	560W
Max. switching voltage	30VDC
Max. switching current	40A
Mechanical endurance	1*107OPS
Electrical endurance	1*105OPS
Insulation resistance	100mΩ (500VDC)
Dielectric strength between coil&contacts	750VAC 1min
Dielectric strength between open contacts	500VAC 1min
Operate time(at nomi.volt)	10ms max.
Release time(at nomi.volt)	10ms max.
Shock resistance functional	98m/s2
Shock resistance destructive	980m/s2
Vibration resistance	10Hz - 55Hz 1.5mm DA
Humidity	98% RH, 40°c
Ambient temperature	-55°c - 85°c
Termination	QC, PCB Terminal
Unit weight	Water-proof cover: approx 55g, Other: approx 35g
Construction	Plastic sealed, Dust protected

Coil data

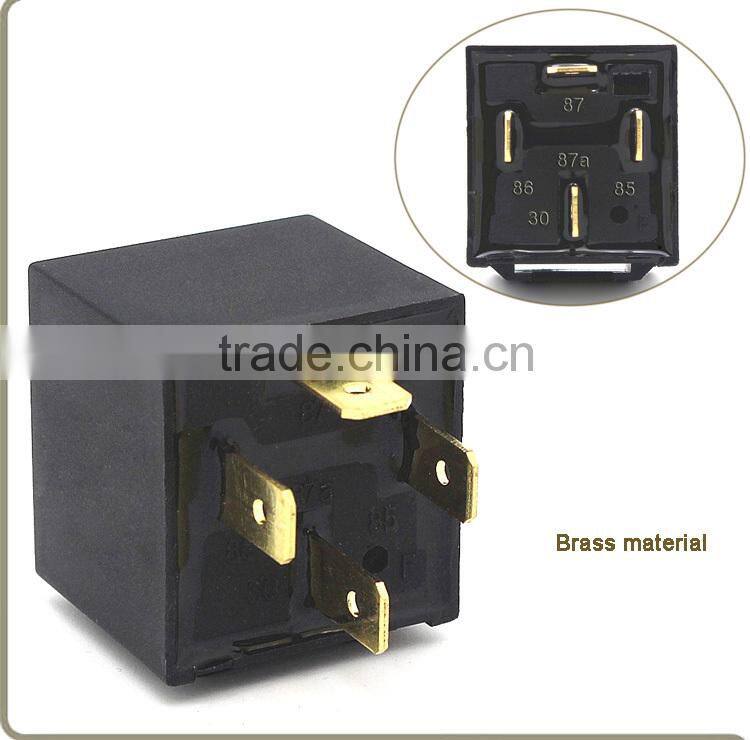

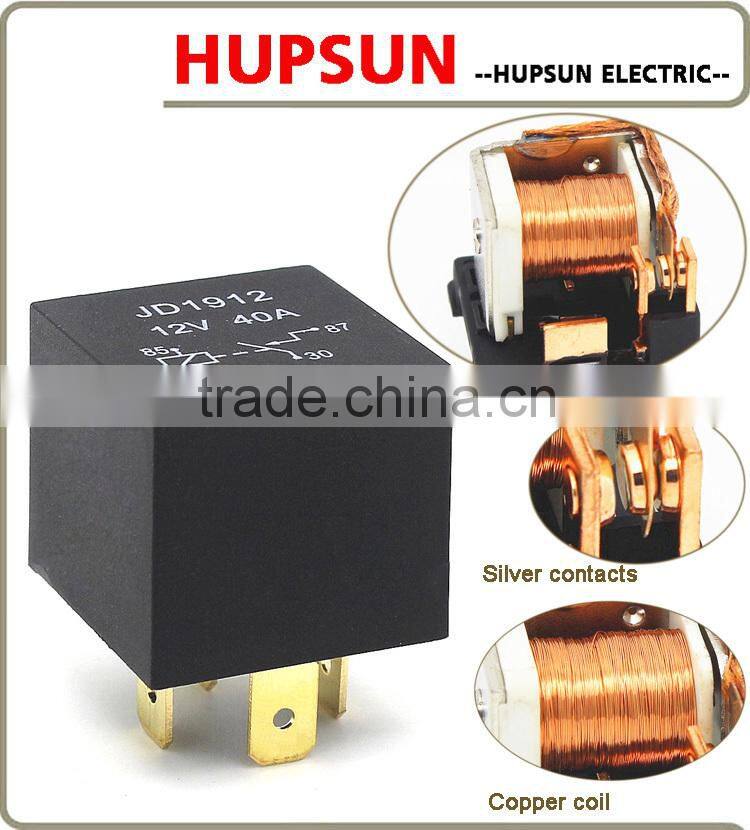

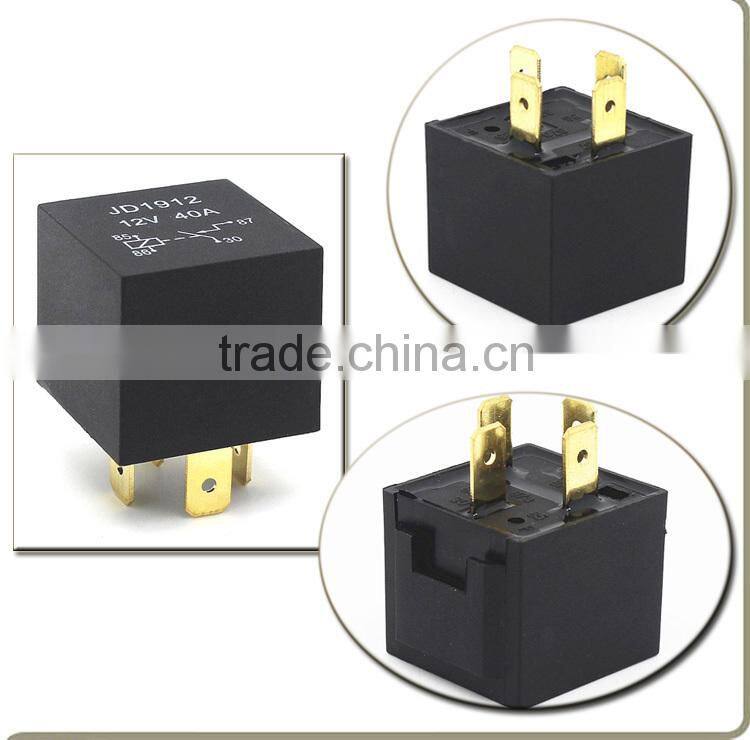

Product Pictures:
