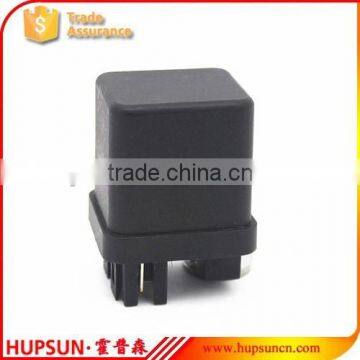

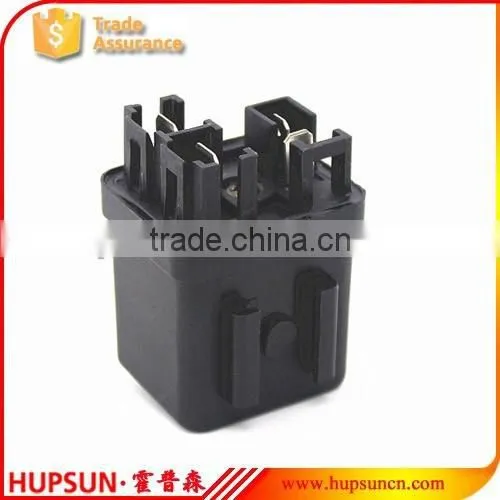

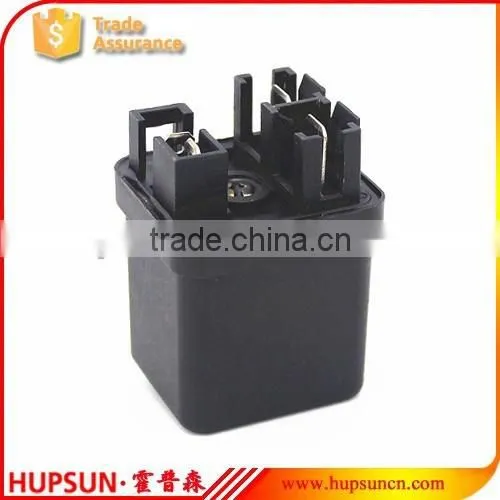

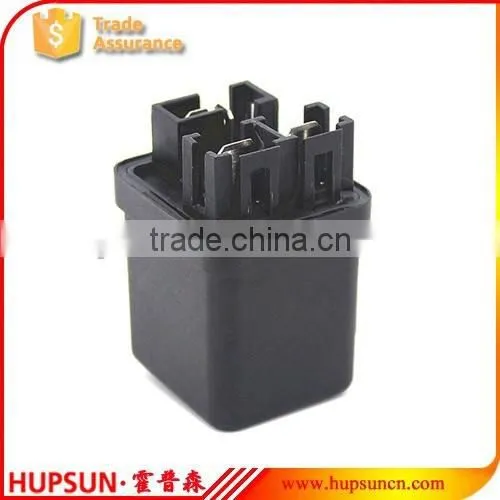

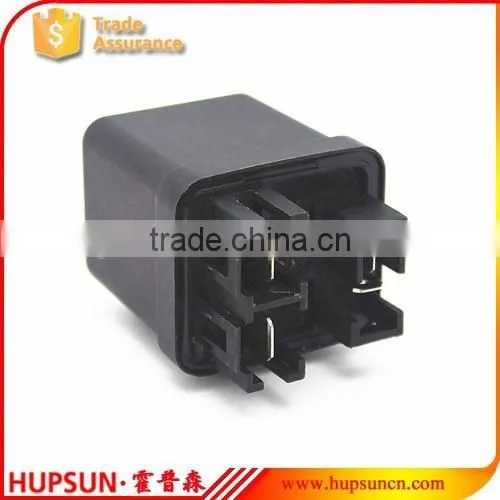

China Hyundai Relay Supplier, Peugeot Auto Relay 5pin, Preheating Relay

Name: China Hyundai Relay Supplier, Peugeot Auto Relay 5pin, Preheating Relay
Brand: HUPSUN
SKU: 110798787
Availability: InStock

Yueqing Hupsun Import And Export Company Limited

US$ 0.5 - 0.85 MOQ: 500 Pieces

Key Specifications

Voltage:

Other, 12v, 24v

Rated Current:

Other, 60A

OE NO.:

7109

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Voltage Other, 12v, 24v

Rated Current Other, 60A

OE NO. 7109

Car Make General motorcycle types

Place of Origin Zhejiang, China

Brand Name HUPSUN

Model Number 7109

Warranty 1 Years

China hyundai relay supplier, peugeot auto relay 5pin, preheating relay

Feature:

60A switching capability

1Form A contact arrangement

Coil voltage: 12VDC, 24VDC

Various mounting terminals available

Plastic sealed and dust protected types available

Product Description

Contact data

Contact arrangement	1A , 1C
Contact resistance	100mΩ (1A 24VDC)
Contact material	AgCdO, AgSnO
Contact rating(Res.load)	60A 14VDC NO 60A 14VDC/NC 50A 14VDC
Max. switching power	1120W
Max. switching voltage	60VDC
Max. switching current	60A
Mechanical endurance	1*10⁷OPS
Electrical endurance	1*10⁵OPS
Insulation resistance	100mΩ (500VDC)
Dielectric strength between coil&contacts	750VAC 1min
Dielectric strength between open contacts	500VAC 1min
Operate time(at nomi.volt)	10ms max.
Release time(at nomi.volt)	10ms max.
Shock resistance functional	98m/s2
Shock resistance destructive	980m/s2
Vibration resistance	10Hz - 55Hz 1.5mm DA
Humidity	98% RH, 40°c
Ambient temperature	-55°c - 85°c
Termination	QC, PCB Terminal
Unit weight	Water-proof cover: approx 55g, Other: approx 35g
Construction	Plastic sealed, Dust protected

Coil data
