Transparent Automotive Relay With Iron Backrest, Iron Blade Auto Relay

Name: Transparent Automotive Relay With Iron Backrest, Iron Blade Auto Relay
Brand: HUPSUN
SKU: 110798909
Availability: InStock

Yueqing Hupsun Import And Export Company Limited

US$ 0.32 - 0.58 MOQ: 500 Pieces

Key Specifications

Voltage:

Other, 12v, 24v

Rated Current:

40A

OE NO.:

1914

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Voltage Other, 12v, 24v

Rated Current 40A

OE NO. 1914

Car Make General motorcycle types

Place of Origin Zhejiang, China

Brand Name HUPSUN

Model Number JD1914

Warranty 1 Years

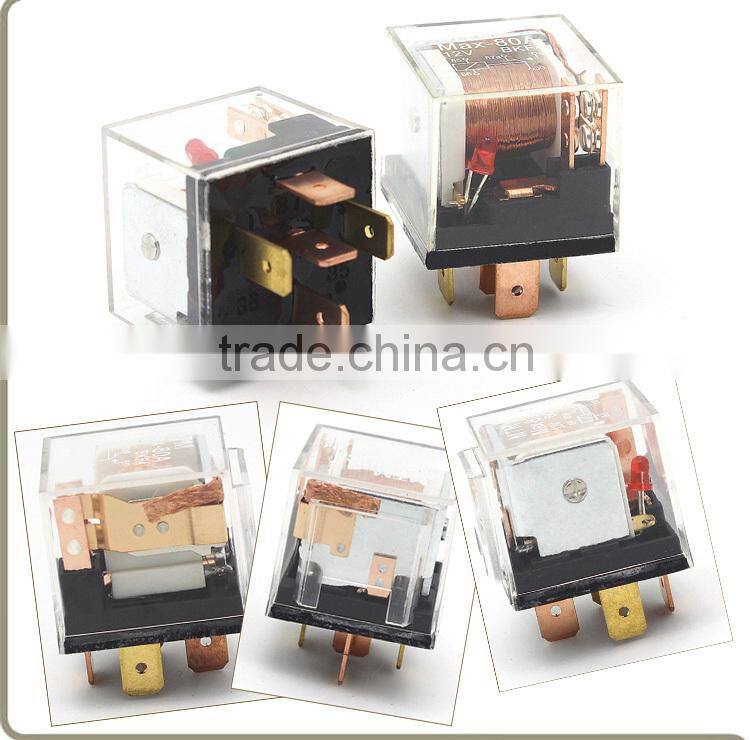

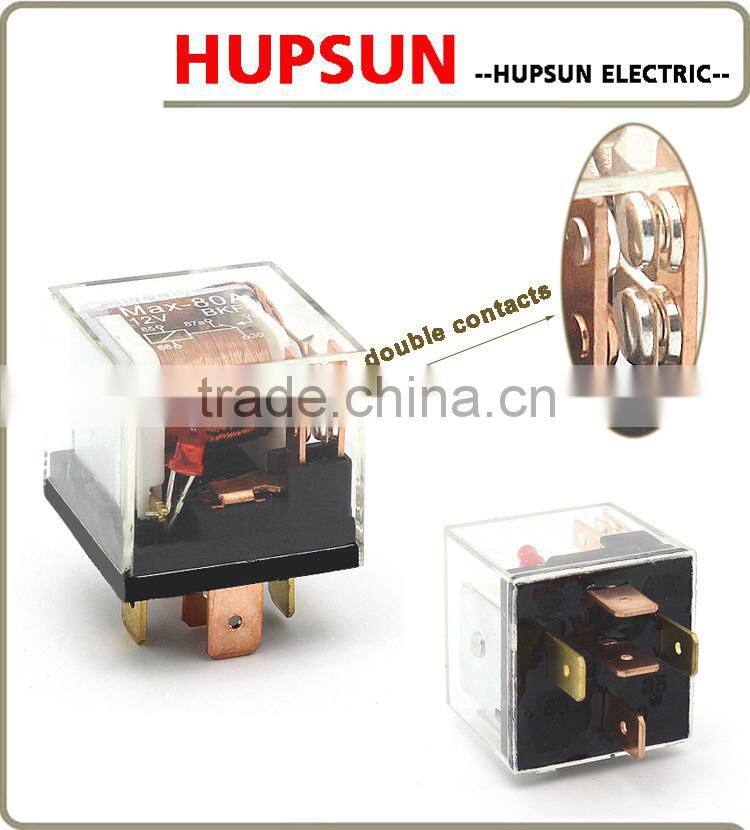

Transparent automotive relay with iron backrest, iron blade auto relay

Feature:

40A switching capability

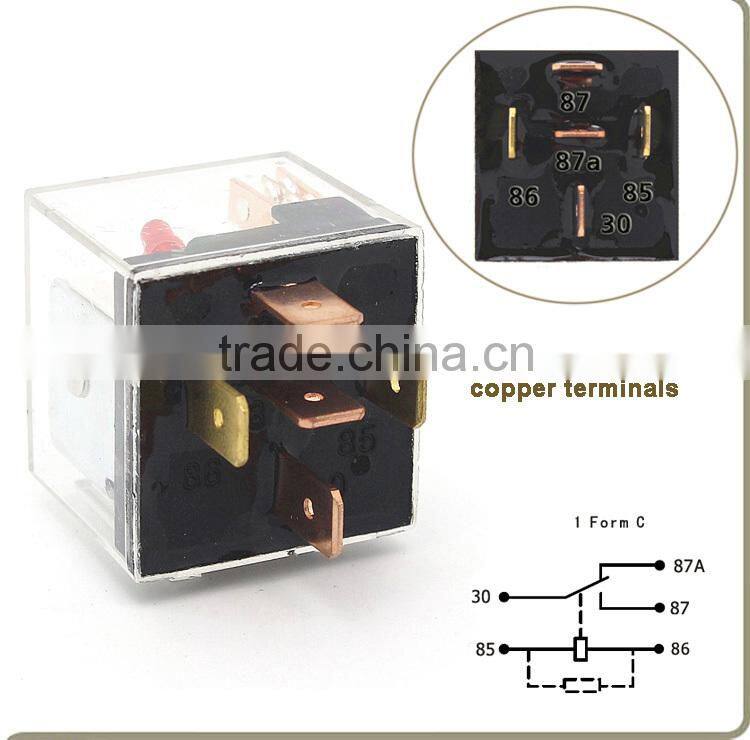

1Form A & 1 Form C contact arrangement

Coil voltage: 12VDC, 24VDC

Various mounting terminals available

Plastic sealed and dust protected types available

Product Description

Contact data

Contact arrangement	1A , 1C
Contact resistance	100mΩ (1A 24VDC)
Contact material	AgCdO, AgSnO
Contact rating(Res.load)	40A 14VDC NO 40A 14VDC/NC 30A 14VDC
Max. switching power	1120W
Max. switching voltage	30VDC
Max. switching current	40A
Mechanical endurance	1*10⁷OPS
Electrical endurance	1*10⁵OPS
Insulation resistance	100mΩ (500VDC)
Dielectric strength between coil&contacts	750VAC 1min
Dielectric strength between open contacts	500VAC 1min
Operate time(at nomi.volt)	10ms max.
Release time(at nomi.volt)	10ms max.
Shock resistance functional	98m/s2
Shock resistance destructive	980m/s2
Vibration resistance	10Hz - 55Hz 1.5mm DA
Humidity	98% RH, 40°c
Ambient temperature	-55°c - 85°c
Termination	QC, PCB Terminal
Unit weight	Water-proof cover: approx 55g, Other: approx 35g
Construction	Plastic sealed, Dust protected

Coil data
