Normal Open Contact Form Auto Starting Relay 4PIN 60A Auto Starter Relay, Starter Auto Relay
US$ 0.5 - 0.75
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Voltage:
Other, 12v, 24v
Rated Current:
Other, 60A
OE NO.:
7108
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Black Color Water-proof Auto Relay, 4PIN 12V 40A Waterproof Car Relay Quality Choice Most PopularUS$ 0.32 - 0.58MOQ: 500 Pieces -
Hight Quality Reasonable Price Universal Toyota Car Relay 5PIN 12V 40A Quality ChoiceUS$ 0.32 - 0.58MOQ: 500 Pieces
-
China Hyundai Relay Supplier, Peugeot Auto Relay 5pin, Preheating RelayUS$ 0.5 - 0.85MOQ: 500 Pieces
-
5PIN 40A Headlight Auto Dimmer Relay, Auto Light RelayUS$ 0.32 - 0.58MOQ: 500 Pieces
-
1C 40A Headlight Dimmer Relay, Car Charger Relay, Battery Charger RelayUS$ 0.32 - 0.58MOQ: 500 Pieces
Voltage
Other, 12v, 24v
Rated Current
Other, 60A
OE NO.
7108
Car Make
General motorcycle types
Place of Origin
Zhejiang, China
Brand Name
HUPSUN
Model Number
7108
Warranty
1 Years
Normal open contact form auto starting relay 4PIN 60A auto starter relay, starter auto relay
Feature:
60A switching capability
1Form A contact arrangement
Coil voltage: 12VDC, 24VDC
Various mounting terminals available
Plastic sealed and dust protected types available
Product Description
Contact data
| Contact arrangement | 1A , 1C |
| Contact resistance | 100mΩ (1A 24VDC) |
| Contact material | AgCdO, AgSnO |
| Contact rating(Res.load) | 60A 14VDC NO 60A 14VDC/NC 50A 14VDC |
| Max. switching power | 1120W |
| Max. switching voltage | 60VDC |
| Max. switching current | 60A |
| Mechanical endurance | 1*107OPS |
| Electrical endurance | 1*105OPS |
| Insulation resistance | 100mΩ (500VDC) |
| Dielectric strength between coil&contacts | 750VAC 1min |
| Dielectric strength between open contacts | 500VAC 1min |
| Operate time(at nomi.volt) | 10ms max. |
| Release time(at nomi.volt) | 10ms max. |
| Shock resistance functional | 98m/s2 |
| Shock resistance destructive | 980m/s2 |
| Vibration resistance | 10Hz - 55Hz 1.5mm DA |
| Humidity | 98% RH, 40°c |
| Ambient temperature | -55°c - 85°c |
| Termination | QC, PCB Terminal |
| Unit weight | Water-proof cover: approx 55g, Other: approx 35g |
| Construction | Plastic sealed, Dust protected |
Coil data
| Rate voltage VDC | Pick-up Voltage VDC | Drop-out Voltage VDC | Coil Resistance *(1±10%)Ω | Parallel resistance *(1±5%)Ω | Equivalent resistance Ω | Power consumption W | |
| Water-proof cover | 12 | 7.2 | 1.2 | 90 | 680 | 79.5 | 1.6 |
| Water-proof cover | 12 | 7.2 | 1.2 | 90 | --- | --- | 1.8 |
| Water-proof cover | 24 | 14.4 | 2.4 | 360 | 2700 | 317.6 | 1.6 |
| Water-proof cover | 24 | 14.4 | 2.4 | 360 | --- | --- | 1.8 |
| Other | 12 | 7.8 | 1.2 | 85 | 680 | --- | 1.7 |
| Other | 12 | 7.8 | 1.2 | 85 | --- | 75.6 | 1.9 |
| Other | 24 | 15.6 | 2.4 | 350 | 2700 | --- | 1.6 |
| Other | 24 | 15.6 | 2.4 |
350 | --- | 309.8 | 1.9 |

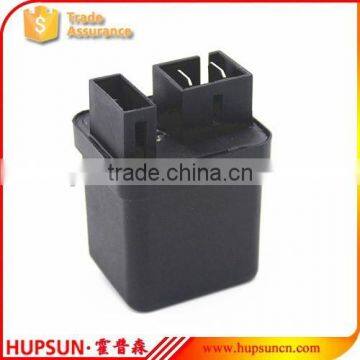

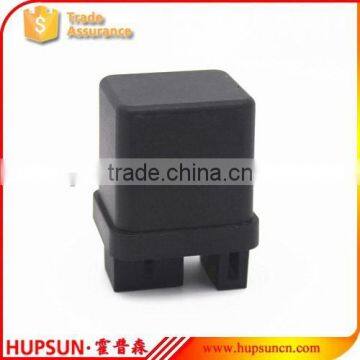

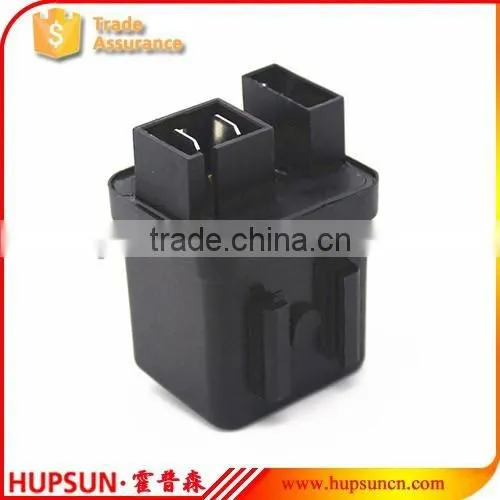

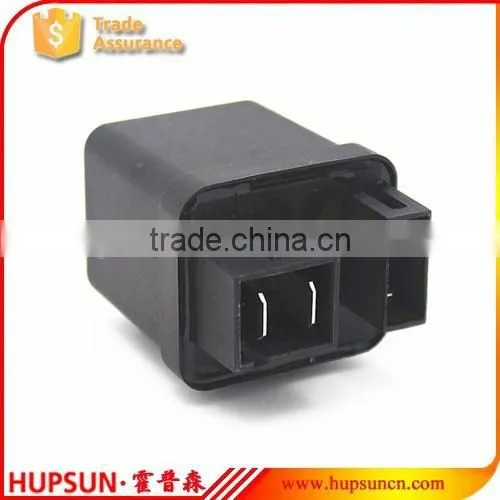

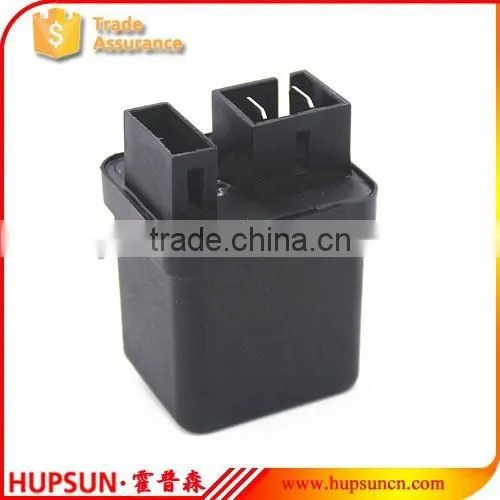

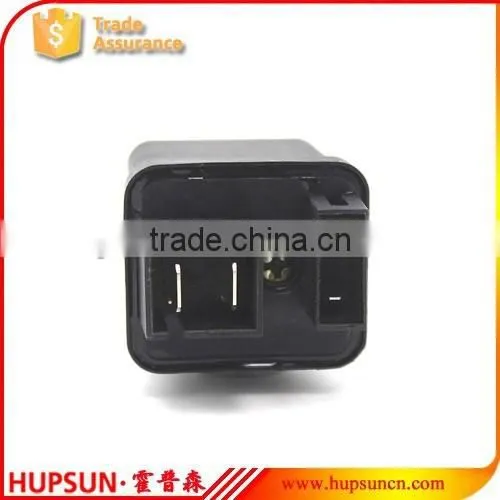

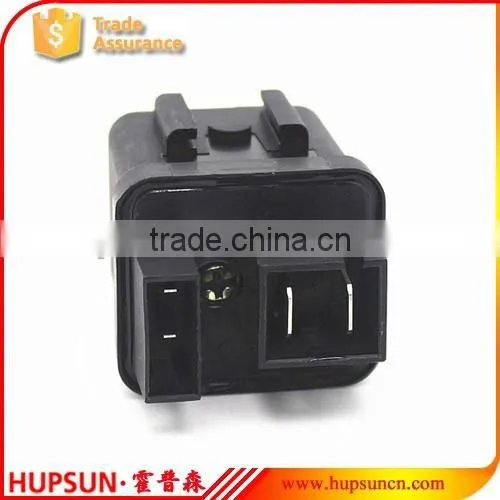

Product Pictures:
