Hella Type Auto Relay 14VDC 30A

Yueqing Hupsun Import And Export Company Limited
Hella Type Auto Relay 14VDC 30A thumbnail-1
Hella Type Auto Relay 14VDC 30A thumbnail-2
Hella Type Auto Relay 14VDC 30A thumbnail-3
Hella Type Auto Relay 14VDC 30A thumbnail-4
Hella Type Auto Relay 14VDC 30A thumbnail-5
Hella Type Auto Relay 14VDC 30A thumbnail-6
Hella Type Auto Relay 14VDC 30A photo-1

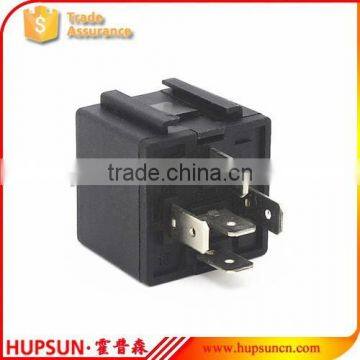

Hella Type Auto Relay 14VDC 30A photo-2

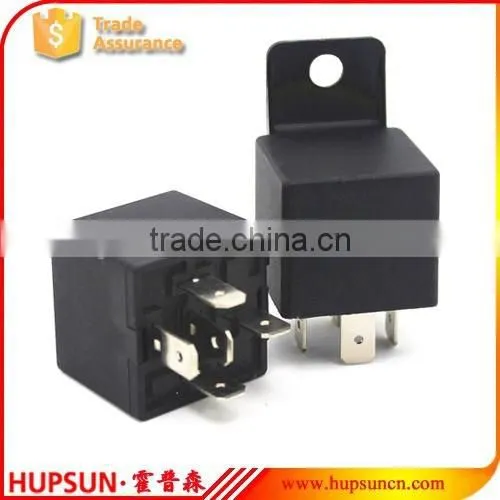

Hella Type Auto Relay 14VDC 30A photo-3

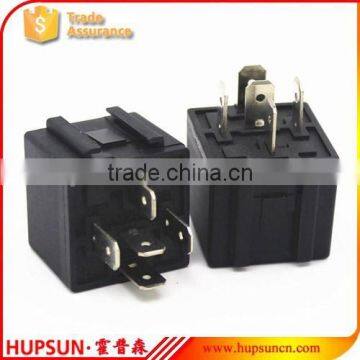

Hella Type Auto Relay 14VDC 30A photo-4

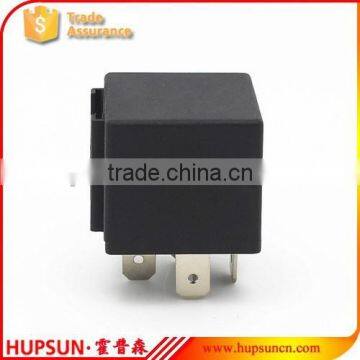

Hella Type Auto Relay 14VDC 30A photo-5

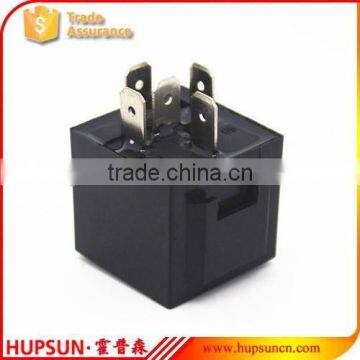

Hella Type Auto Relay 14VDC 30A photo-6
US$ 0.32 - 0.58 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Voltage:
Other, 12v, 24v
Rated Current:
Other, 30A
OE NO.:
1914
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Voltage Other, 12v, 24v
Rated Current Other, 30A
OE NO. 1914
Car Make General motorcycle types
Place of Origin Zhejiang, China
Brand Name HUPSUN
Model Number JD1914
Warranty 1 Years

Hella type auto relay 14VDC 30A





Feature:

30A switching capability

1Form A & 1 Form C contact arrangement

Coil voltage: 12VDC, 24VDC

Various mounting terminals available

Plastic sealed and dust protected types available





Product Description

Hella type auto relay 14VDC 30A



Contact data

Contact arrangement1A , 1C
 Contact resistance 100mΩ (1A 24VDC)
 Contact material AgCdO, AgSnO
 Contact rating(Res.load) 30A 14VDC           NO 30A 14VDC/NC 20A 14VDC
 Max. switching power 560W
 Max. switching voltage 30VDC
 Max. switching current 30A
 Mechanical endurance 1*107OPS
 Electrical endurance 1*105OPS
 Insulation resistance 100mΩ (500VDC)
 Dielectric strength between coil&contacts 750VAC 1min
 Dielectric strength between open contacts 500VAC 1min
 Operate time(at nomi.volt) 10ms max.
 Release time(at nomi.volt) 10ms max.
 Shock resistance functional 98m/s2
 Shock resistance destructive

 980m/s2

 Vibration resistance10Hz - 55Hz 1.5mm DA
 Humidity 98% RH, 40°c
 Ambient temperature-55°c - 85°c
 Termination QC, PCB Terminal
 Unit weight Water-proof cover: approx 55g,  Other: approx 35g
 Construction Plastic sealed, Dust protected



Coil data

 Rate voltage VDCPick-up Voltage VDCDrop-out Voltage VDCCoil Resistance    *(1±10%)ΩParallel resistance *(1±5%)ΩEquivalent resistance ΩPower consumption W
Water-proof cover 12 7.2 1.2 90 680 79.5 1.6
Water-proof cover 12 7.2 1.2 90 --- --- 1.8
Water-proof cover 24 14.4 2.4 360 2700 317.6 1.6
Water-proof cover 24 14.4 2.4 360 --- --- 1.8
Other 12 7.8 1.2 85 680 --- 1.7
Other 12 7.8 1.2 85 --- 75.6 1.9
Other 24 15.6 2.4 350 2700 --- 1.6
Other 24 15.6

 2.4

 350 --- 309.8 1.9







Product Pictures:



Hella type auto relay 14VDC 30AHella type auto relay 14VDC 30AHella type auto relay 14VDC 30AHella type auto relay 14VDC 30A
