High Quality Low Price Sealed 5PIN 30A SPDT 24V 12V DC Relay
US$ 0.3 - 0.5
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Voltage:
Other, 12v, 24v
Rated Current:
Other, 30A
OE NO.:
1926
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Car Electric Relay Bosch Type 12v 30a Bosch RelayUS$ 0.32 - 0.58MOQ: 500 Pieces -
Relay Supplier 4PIN SPST Auto Relay Normal Open RelayUS$ 0.32 - 0.58MOQ: 500 Pieces
-
Blue Color Non Water-proof Automotive Alarm Relay 12V 24V 40A RelayUS$ 0.32 - 0.58MOQ: 500 Pieces
-
Copper Terminal Silver Contacts With LED Indicator Auto Relay, Transparent Auto RelayUS$ 0.32 - 0.58MOQ: 500 Pieces
-
Auto Electrical Relay 5PIN 80A 12V Transparent Auto Relay Quality ChoiceUS$ 0.32 - 0.58MOQ: 500 Pieces
Voltage
Other, 12v, 24v
Rated Current
Other, 30A
OE NO.
1926
Car Make
General motorcycle types
Place of Origin
Zhejiang, China
Brand Name
HUPSUN
Model Number
JD1926
Warranty
1 Years
High quality low price sealed 5PIN 30A SPDT 24V 12V DC relay
Feature:
30A switching capability
1Form A & 1 Form C contact arrangement
Coil voltage: 12VDC, 24VDC
Various mounting terminals available
Plastic sealed and dust protected types available
Product Description
Contact data
| Contact arrangement | 1A , 1C |
| Contact resistance | 100mΩ (1A 24VDC) |
| Contact material | AgCdO, AgSnO |
| Contact rating(Res.load) | 30A 14VDC NO 30A 14VDC/NC 20A 14VDC |
| Max. switching power | 560W |
| Max. switching voltage | 27VDC |
| Max. switching current | 30A |
| Mechanical endurance | 1*107OPS |
| Electrical endurance | 1*105OPS |
| Insulation resistance | 500mΩ (500VDC) |
| Dielectric strength between coil&contacts | 500VAC 1min |
| Dielectric strength between open contacts | 500VAC 1min |
| Operate time(at nomi.volt) | 10ms max. |
| Release time(at nomi.volt) | 10ms max. |
| Shock resistance functional | 98m/s2 |
| Shock resistance destructive | 980m/s2 |
| Vibration resistance | 10Hz - 55Hz 1.5mm DA |
| Humidity | 98% RH, 40°c |
| Ambient temperature | -55°c - 85°c |
| Termination | QC, PCB Terminal |
| Unit weight | Water-proof cover: approx 55g, Other: approx 35g |
| Construction | Plastic sealed, Dust protected |
Coil data
| Rate voltage VDC | Pick-up Voltage VDC | Drop-out Voltage VDC | Coil Resistance *(1±10%)Ω | Parallel resistance *(1±5%)Ω | Equivalent resistance Ω | Power consumption W | |
| Water-proof cover | 12 | 7.2 | 1.2 | 90 | 680 | 79.5 | 1.6 |
| Water-proof cover | 12 | 7.2 | 1.2 | 90 | --- | --- | 1.8 |
| Water-proof cover | 24 | 14.4 | 2.4 | 360 | 2700 | 317.6 | 1.6 |
| Water-proof cover | 24 | 14.4 | 2.4 | 360 | --- | --- | 1.8 |
| Other | 12 | 7.8 | 1.2 | 85 | 680 | --- | 1.7 |
| Other | 12 | 7.8 | 1.2 | 85 | --- | 75.6 | 1.9 |
| Other | 24 | 15.6 | 2.4 | 350 | 2700 | --- | 1.6 |
| Other | 24 | 15.6 | 2.4 | 350 | --- | 309.8 | 1.9 |

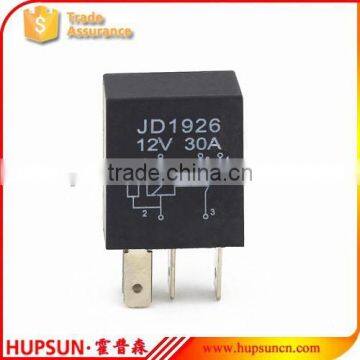

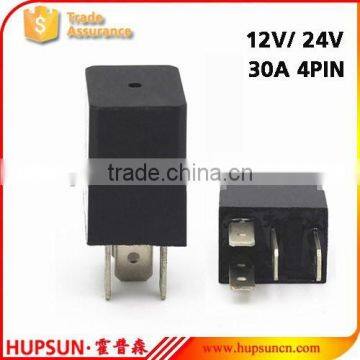

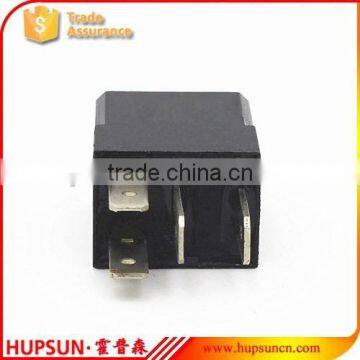

Product Pictures:
