Relay supplier 4PIN SPST auto relay normal open relay
USD $0.32 - $0.58
/ Piece
500 Pieces(Min.Order)
- 900000 Piece / Pieces per Month
- Ningbo Shanghai
- T/T Credit Card PayPal
You May Like
-
Auto Relays OE 0009828023 for BENZ
-
Shiyan Dongfeng DFAC Truck Part 37QB10E-35020 Flasher Relay
-
Turn Signal Light Bulb LED Flasher Relay 81980-50030 8198050030 81980 50030 For Lexus Toyota Scion Subaru
-
Auto Headlamp Relay ASSY 90987-01003 9098701003 90987 01003 For Toyota Camry 83-86 Celica 82-85 Corolla 77-87
-
New Auto Relay 90987-04004 9098704004 90987 04004 156700-0860 For Toyota Lexus Scion Prius Rav4 12V
-
Fast Shipping Auto Multi-Use Relay 90987-02020 9098702020 90987 02020 156700-1930 for Toyota Lexus
Product Details
| Voltage: | Other, 12v, 24v | Rated Current: | 40A | OE NO.: | 1912 |
| Car Make: | General motorcycle types | Place of Origin: | Zhejiang, China | Brand Name: | HUPSUN |
| Model Number: | JD1912 | Warranty: | 1 Years |
Product Description
Relay supplier 4PIN SPST auto relay normal open relay
Feature:
40A switching capability

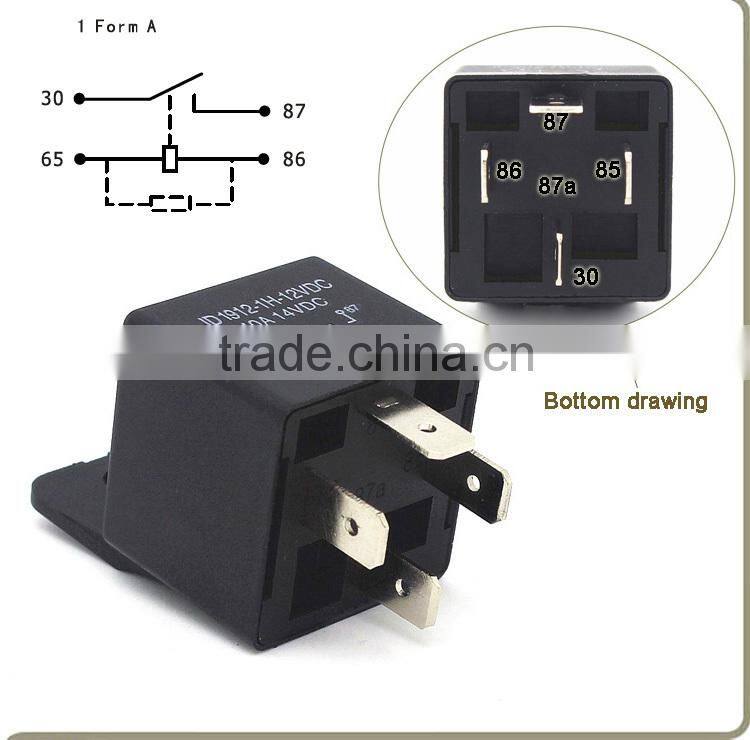

1Form A & 1 Form C contact arrangement
Coil voltage: 12VDC, 24VDC
Various mounting terminals available
Plastic sealed and dust protected types available
Product Description
Contact data
| Contact arrangement | 1A , 1C |
| Contact resistance | 100mΩ (1A 24VDC) |

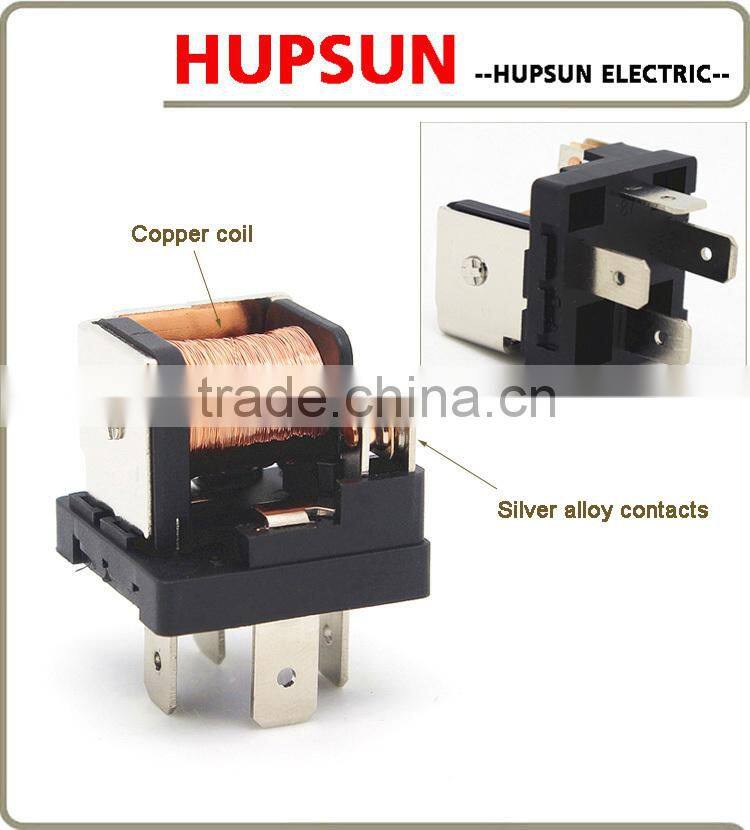

| Contact material | AgCdO, AgSnO |
| Contact rating(Res.load) | 40A 14VDC NO 40A 14VDC/NC 30A 14VDC |
| Max. switching power | 560W |
| Max. switching voltage | 30VDC |
| Max. switching current | 40A |
| Mechanical endurance | 1*107OPS |
| Electrical endurance | 1*105OPS |
| Insulation resistance | 100mΩ (500VDC) |
| Dielectric strength between coil&contacts | 750VAC 1min |
| Dielectric strength between open contacts | 500VAC 1min |
| Operate time(at nomi.volt) | 10ms max. |
| Release time(at nomi.volt) | 10ms max. |
| Shock resistance functional | 98m/s2 |
| Shock resistance destructive | 980m/s2 |
| Vibration resistance | 10Hz - 55Hz 1.5mm DA |
| Humidity | 98% RH, 40°c |
| Ambient temperature | -55°c - 85°c |

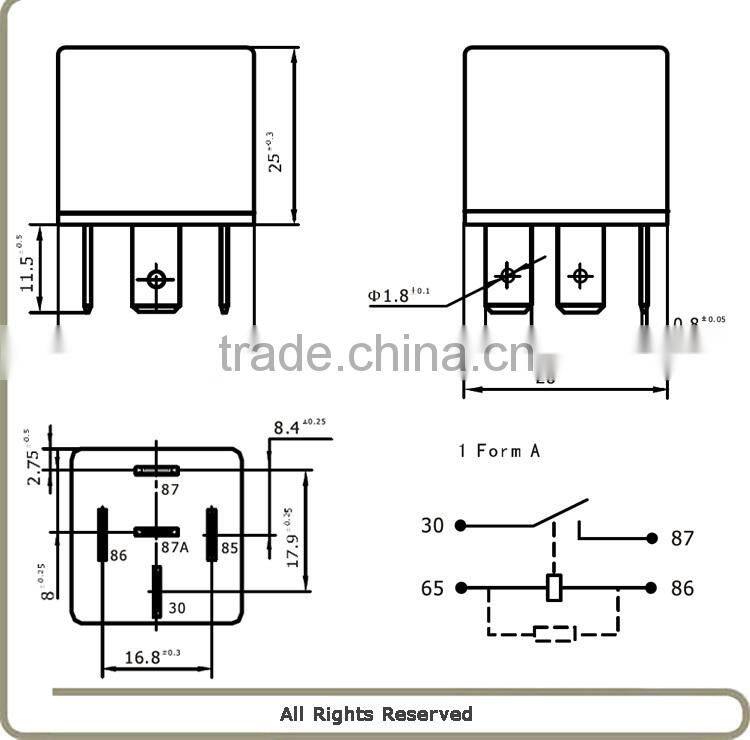

| Termination | QC, PCB Terminal |
| Unit weight | Water-proof cover: approx 55g, Other: approx 35g |
| Construction | Plastic sealed, Dust protected |
Coil data
| Rate voltage VDC | Pick-up Voltage VDC | Drop-out Voltage VDC | Coil Resistance *(1±10%)Ω | Parallel resistance *(1±5%)Ω | Equivalent resistance Ω | Power consumption W | |
| Water-proof cover | 12 | 7.2 | 1.2 | 90 | 680 | 79.5 | 1.6 |
| Water-proof cover | 12 | 7.2 | 1.2 | 90 | --- | --- | 1.8 |
| Water-proof cover | 24 | 14.4 | 2.4 | 360 | 2700 | 317.6 | 1.6 |
| Water-proof cover | 24 | 14.4 | 2.4 | 360 | --- | --- | 1.8 |
| Other | 12 | 7.8 | 1.2 | 85 | 680 | --- | 1.7 |
| Other | 12 | 7.8 | 1.2 | 85 | --- | 75.6 | 1.9 |
| Other | 24 | 15.6 | 2.4 | 350 | 2700 | --- | 1.6 |
| Other | 24 | 15.6 | 2.4 | 350 | --- | 309.8 | 1.9 |

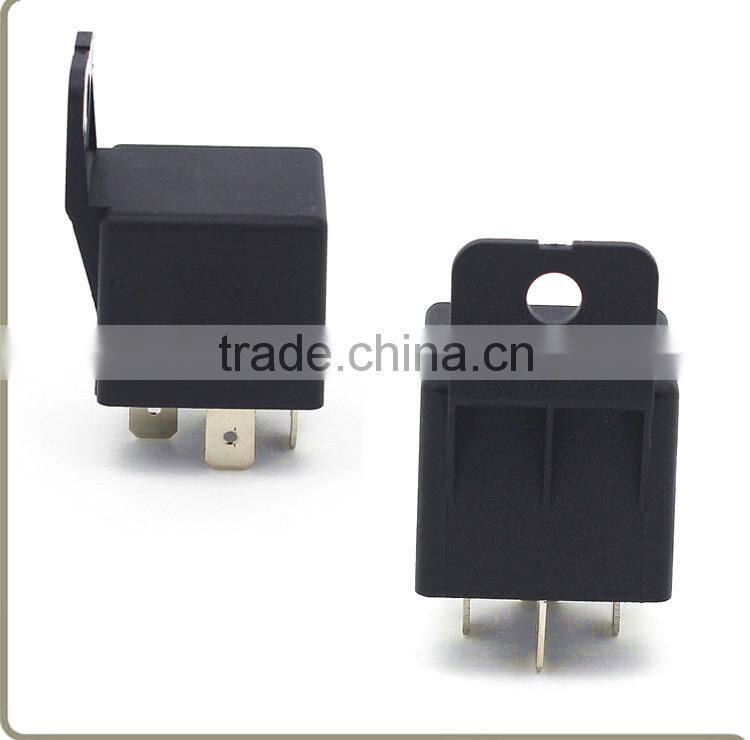

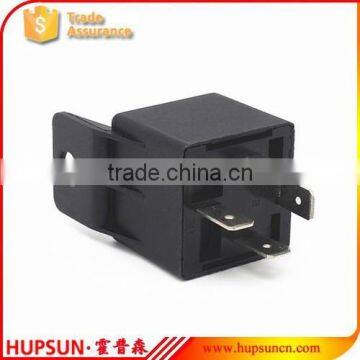

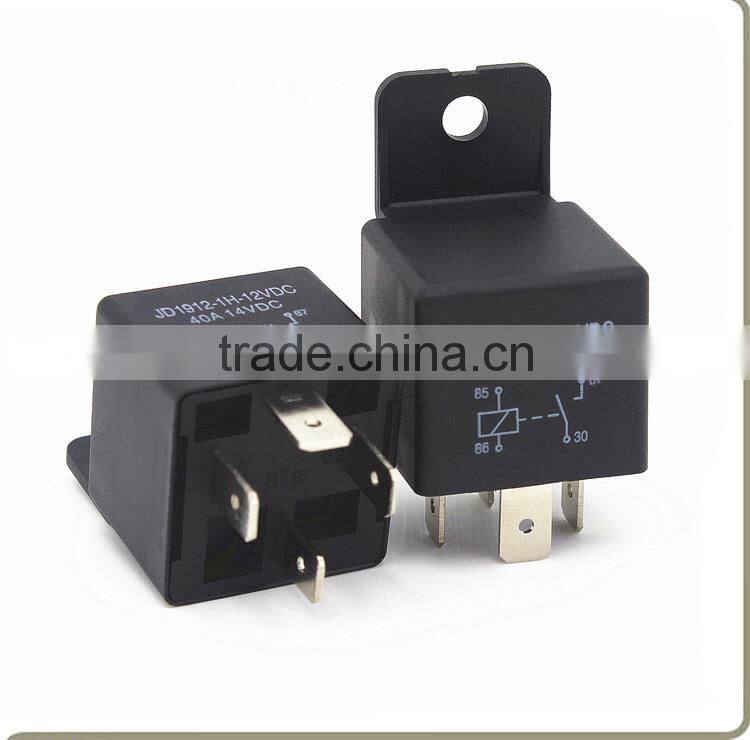

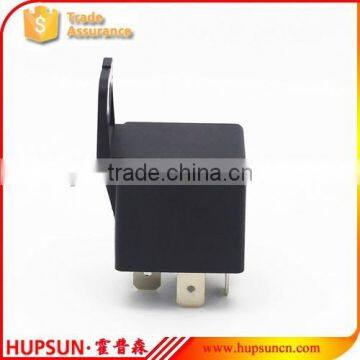

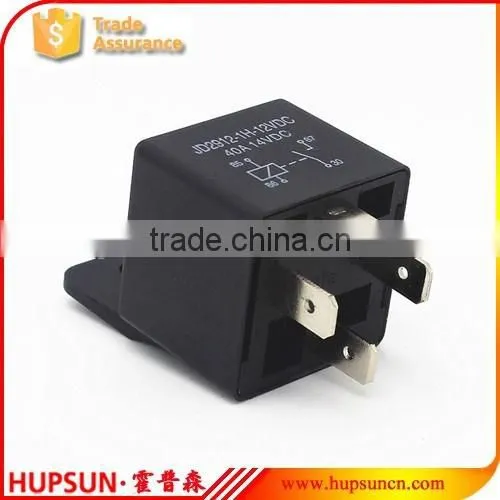

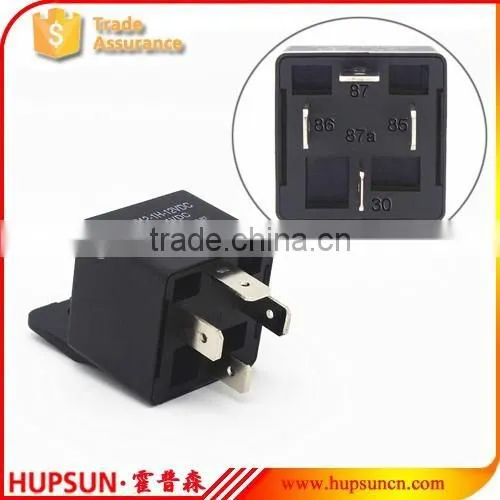

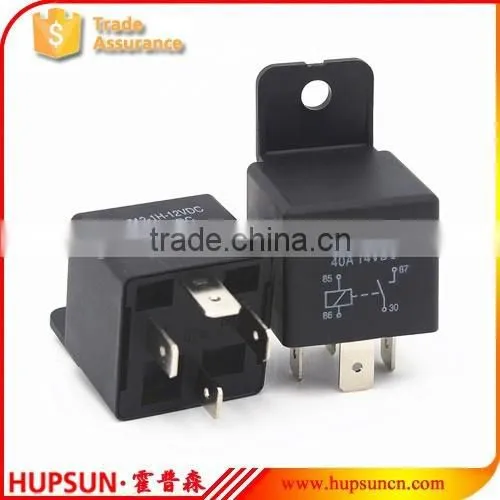

Product Pictures:
